Front frame height of only 2 mm

Operating devices

Quelle: Georg Schlegel | Lukas Dehling, 06.02.2019, 01:00

Front frame height of only 2 mm

The Rondex-Juwel series from Georg Schlegel offers a front frame height of just 2 mm. The surface is available in anthracite or titanium, and a stainless steel version is also available.

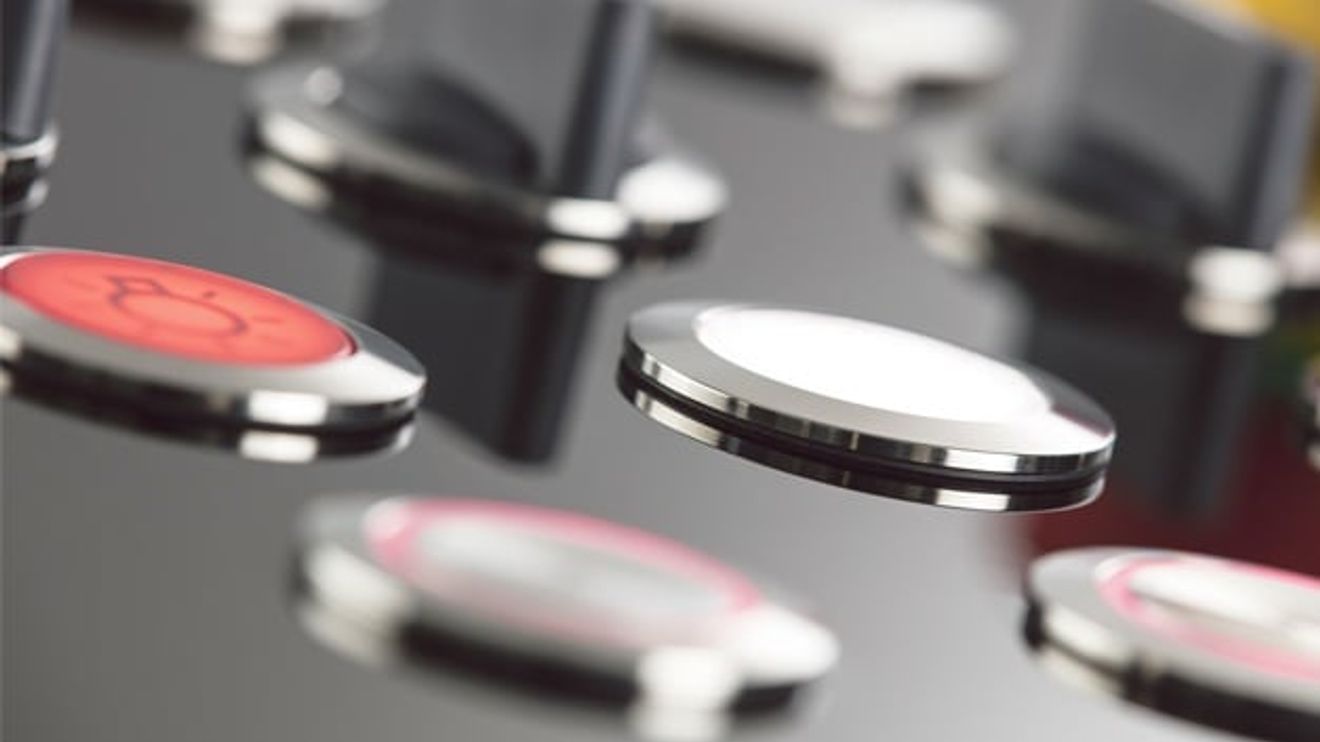

x1_Rondex-Juwel series from Gex1_Rondex-Juwel series from Georg Schlegel

According to the manufacturer, illuminated versions offer good surface illumination. The device is designed for use with high switching voltages of up to 440 V as well as low currents of a few milliamps. The series is available in different versions, such as illuminated and non-illuminated pushbuttons as well as variants with ring lighting. There is also a choice of easy-grip selector and key switches, acoustic signaling devices, a WLAN adapter to USB, a WiFi antenna, an indicator light and a comprehensive range of accessories. Thanks to compatibility, all installation sockets from the Rontron-R-Juwel series can also be used. Additional inscriptions with external designation carriers can be implemented. The range also includes matching contact blocks with screw, quick-connect and spring-cage connections and battery-free wireless technology. The installation opening of the actuators is Ø 22.3 mm, the installation depth between 49.5 mm and 68.5 mm (73.5 mm radio, 74.5 mm ASI).
