Support data rates up to 1 Gbit/s

Media converter

Quelle: eks Engel | Inka Krischke, 09.03.2018, 00:30

Support data rates up to 1 Gbit/s

eks Engel has developed the e-light 1000XS-G and e-light 1000XS-GP Ethernet media converters especially for industrial applications such as networking machines or connecting IP cameras.

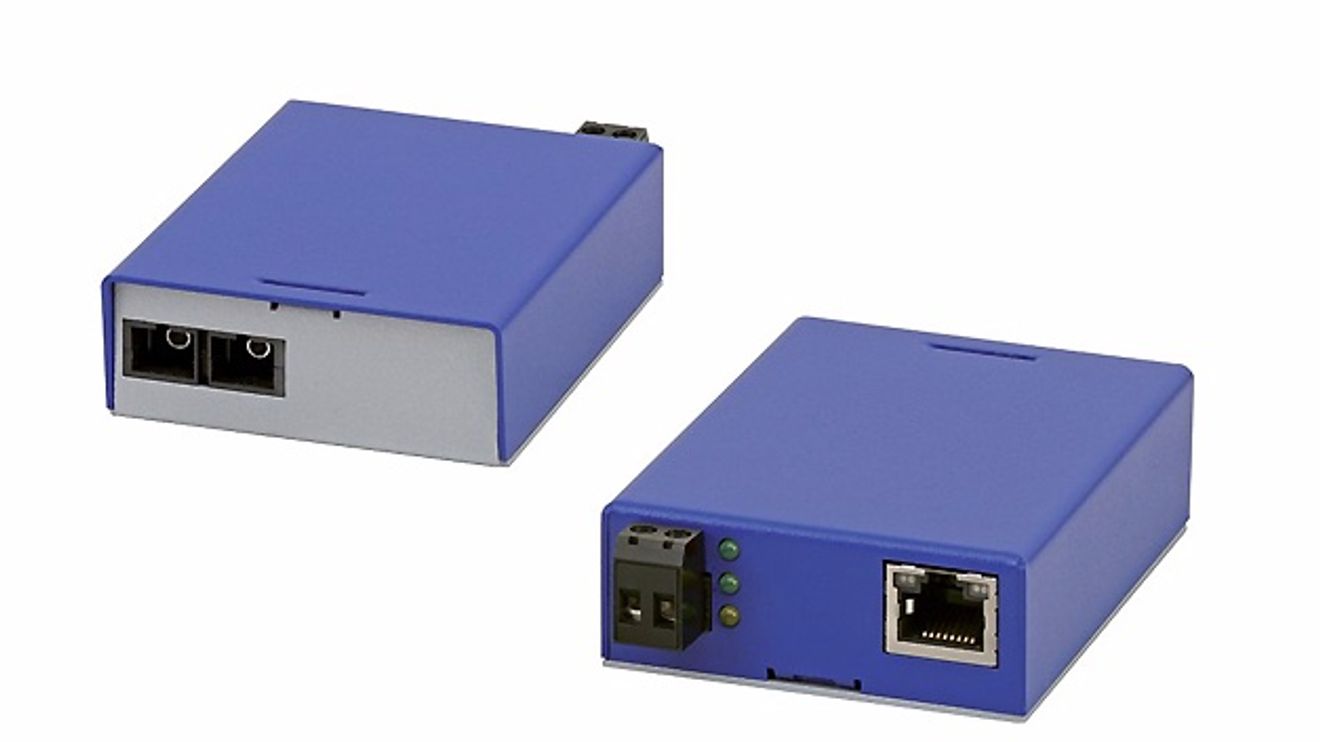

Ethernet media converter e-light 1000XS-G and e-light 1000XS-GP from eks Engel

The devices each have an electrical and an optical port that support data rates of up to 1 Gbit/s. A cut-through mode enables delay-free communication without buffering thanks to extremely short latency times. The e-light 1000XS-GP can also be used to supply end devices via PoE/PoE+ with an output of 30 W or a maximum current of 600 mA. The DIN rail-mountable media converters have a housing made of powder-coated stainless steel. As this measures just 85 mm × 63 mm × 26 mm, they can also be installed in tight spaces such as small distribution boxes. Extensive immunity to electromagnetic interference and a temperature range of -40 to +70 °C ensure reliable operation. The media converters are available for single-mode and multimode fibers, which enable transmission distances of up to 30 km and are connected via SC connectors. The electrical RJ45 port supports auto-negotiation and Auto MDI/MDI-X. The status of the 54 V (DC) power supply, PoE support and the data connection are indicated by LEDs on the front panel.
