Megatron
Angle measurement in the smallest space

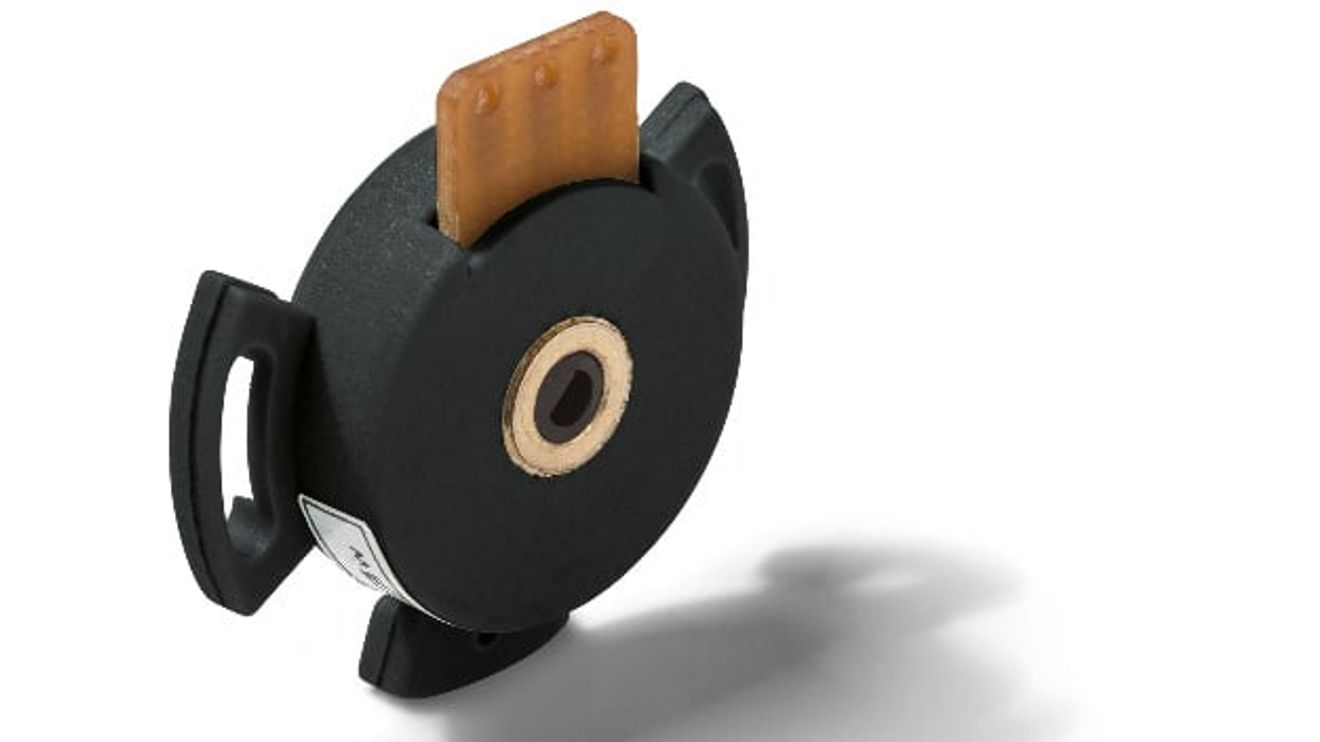

Thanks to their housing depth of just 6 mm and a housing diameter of 16.4 mm, the hollow-shaft conductive plastic potentiometers in the 'MHP16' series from Megatron are particularly suitable as position indicators in motor valves and actuators.
The shaft diameter is only 2 mm. The conductive plastic potentiometers offer an electrically effective angle of rotation of 320° (±5°), a mechanical angle of rotation of 360° and an almost infinite resolution with ±2% independent linearity. According to the supplier, the multi-finger stainless steel slider guarantees a stable analog output signal.
Thanks to the flattened hub in the hollow shaft, the potentiometers can be mounted directly on the drive shaft without torsion; a coupling is not required. Other features of the hollow shaft potentiometers include the ability to be used in a temperature range between -40 and +105 °C and protection class IP40.
If series production is required, the supplier can customize the potentiometers on request - for example with special rotation angles and resistance values, special tolerances for independent linearity or customer-specific housings.
You might also be interested in

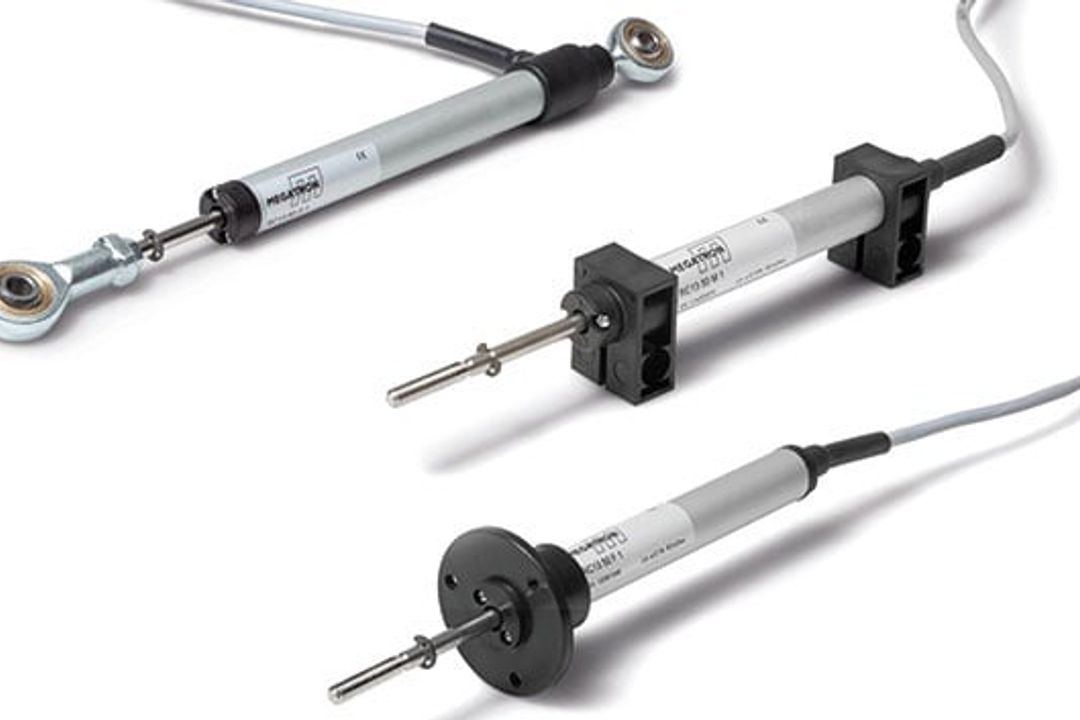

In three mounting variants
With its various mounting options, the RC13 displacement sensor from Megatron is suitable for a wide range of applications.
read more...Draw-wire displacement sensors for industrial applications
Draw-wire sensors in the Wiresensor WPS-K100 series from Micro-Epsilon measure paths and distances in industrial environments. Two new models have measuring ranges of 1500 and 2500 mm.
read more...Market-ready gesture control for robots
The Fraunhofer IWU reports: Industrial gesture control for robots is now ready for the market. It complies with the applicable guidelines on machine safety and data protection.
read more...Micro gas analyzer specialist Qmicro acquired
Sensirion Holding, provider of gas and liquid flow and environmental sensors, completes the acquisition of Qmicro, an OEM provider of miniaturized gas analysis technologies.

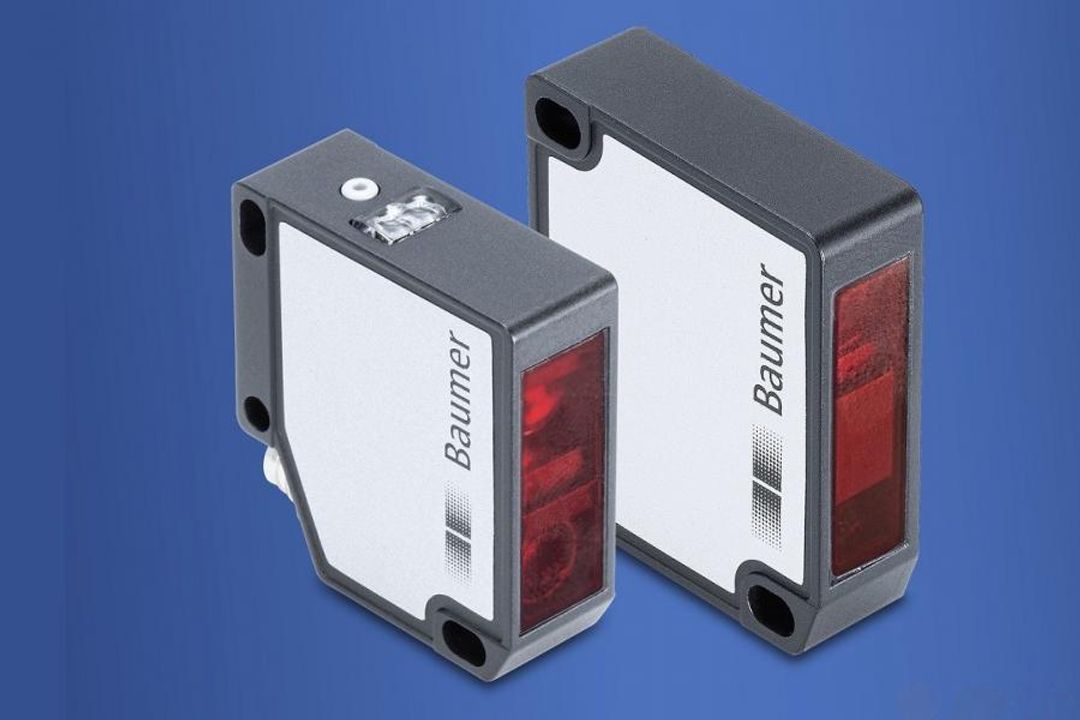

read more...Miniaturized laser distance sensors
