Hand-held control unit with multi-touch screen

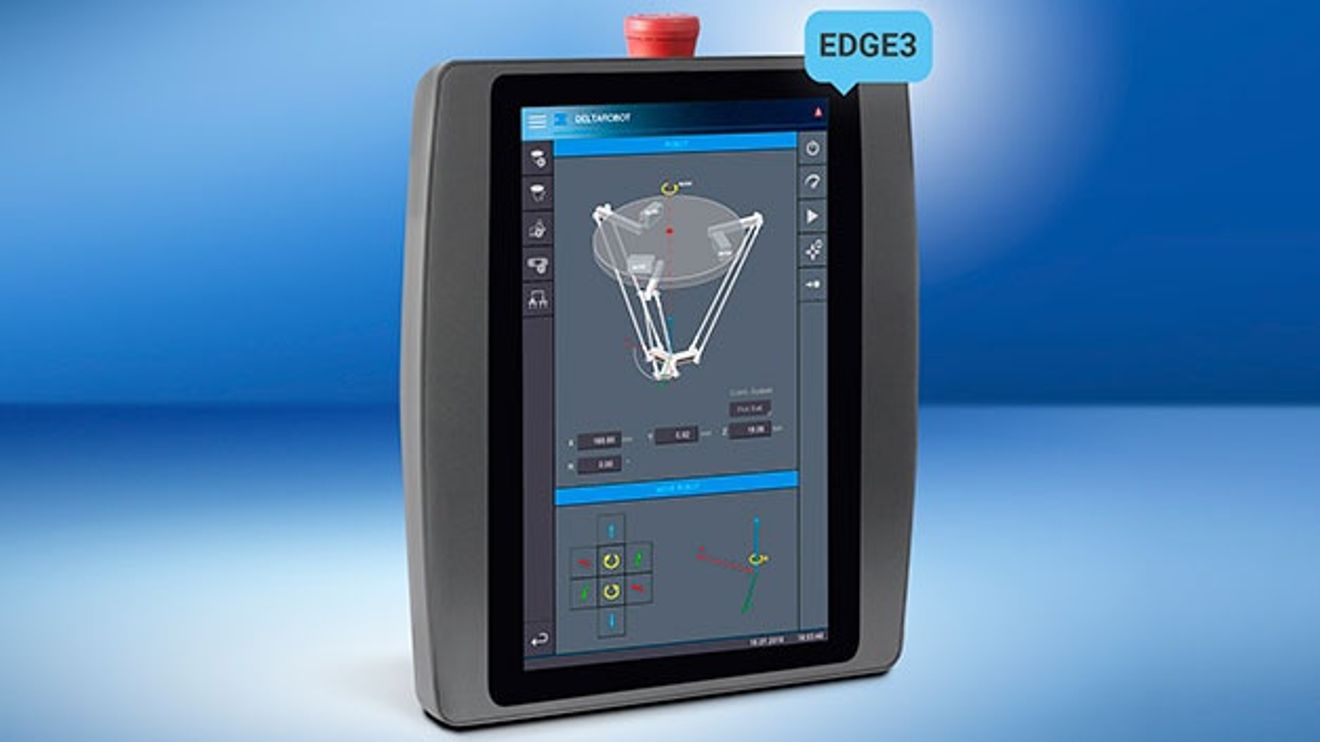

HGT 1053 is the name of the mobile operating panel from Sigmatek. Equipped with a capacitive multi-touch screen with a 10.1 inch screen diagonal, it is also suitable for demanding visualization tasks.
The HGT 1053 mobile operating panel from Sigmatek can also be used for demanding applications and (web) visualizations thanks to its Edge 3 technology quad-core processor, 2 GB DDR4 RAM and 8 GB eMMC memory. Machines, systems and robots can be operated, taught-in, tested and maintained directly on site using the OPC UA-capable handheld operating device. The integrated safety elements - emergency stop and enabling switches as well as key switches - ensure the necessary safety for users and machines (SIL 3, PL e). Communication takes place via Gigabit Ethernet. The hand-held pendant station also provides a USB 2.0 type A interface. The multi-touch display is in portrait format (WXGA 800 px x 1280 px). The wired, ergonomically designed operating panel complies with protection class IP54 and weighs just 1.25 kg.
Visualization takes place in Lasal Screen or web-based in VISUDesigner, which supports current web standards such as HTML5, CSS3 and JavaScript. Ready-made display/operating elements are available to the user. It is also possible to integrate svg files, individually designed graphics, controls, animations, videos and audio files.
You might also be interested in
Processing speed quadrupled

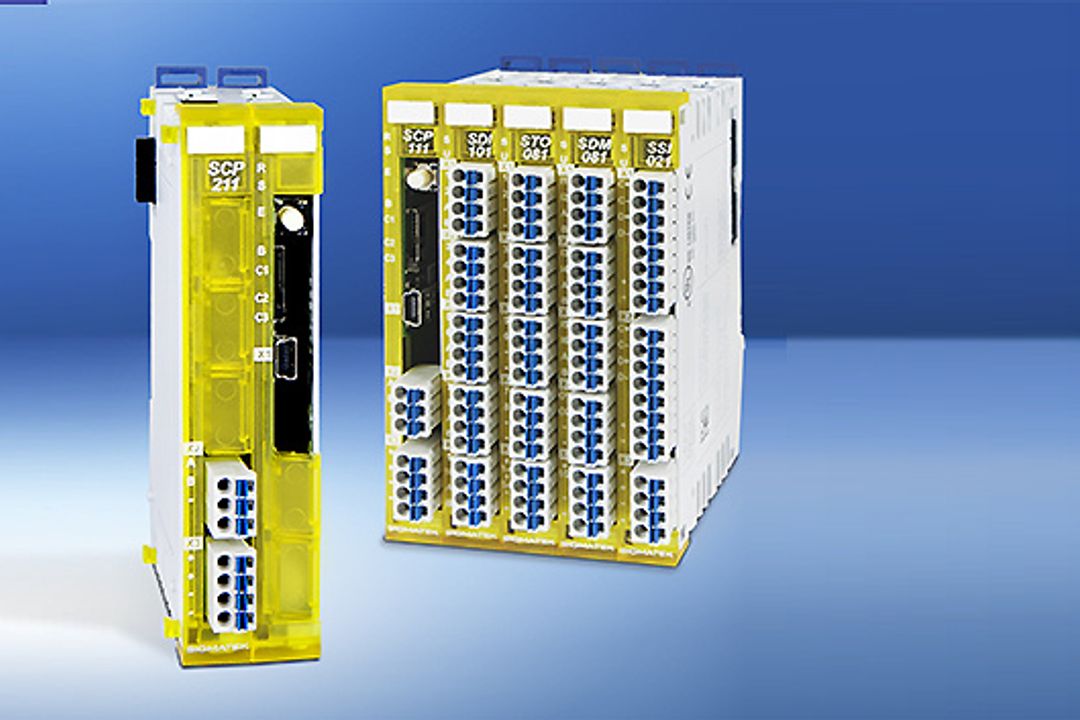

S-Dias Safety from Sigmatek complies with the SIL 3, PL e safety standards. According to the provider, the SCP 211 safety CPU now ensures even greater performance.
read more...Solve the Rubik's Cube automatically

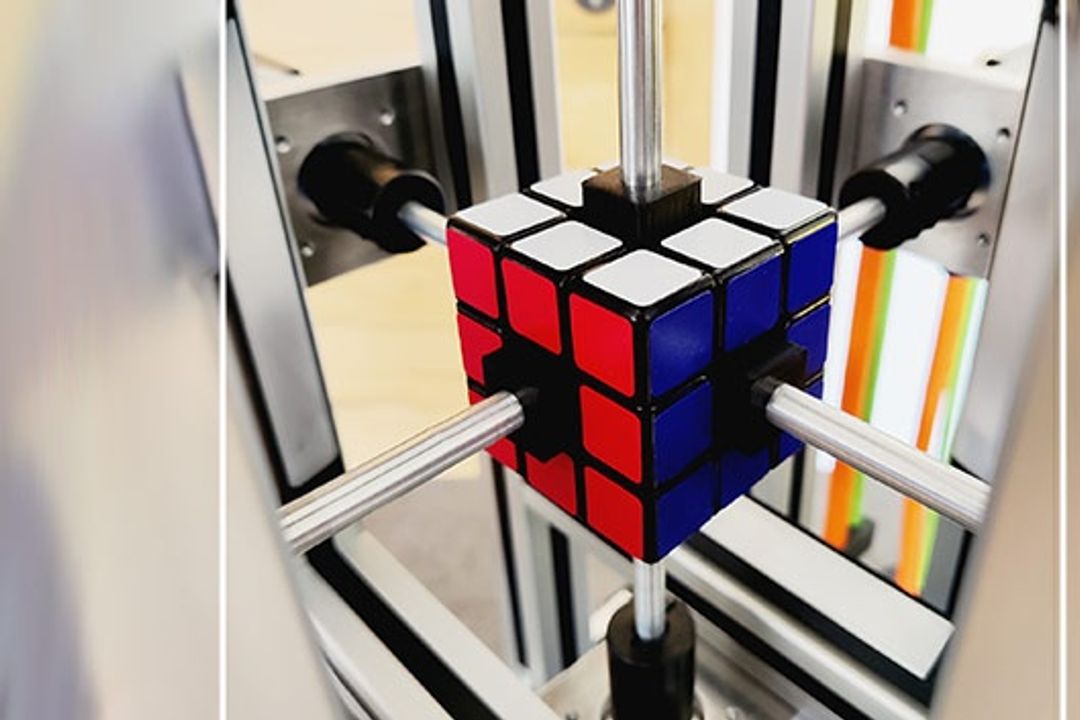

How can the Rubik's Cube be solved quickly? Three students from HTL Saalfelden developed 'Rubik's Cube Solver', which solves the Rubik's Cube fully automatically. The young technicians were supported by Sigmatek.
read more...Safe analog input module

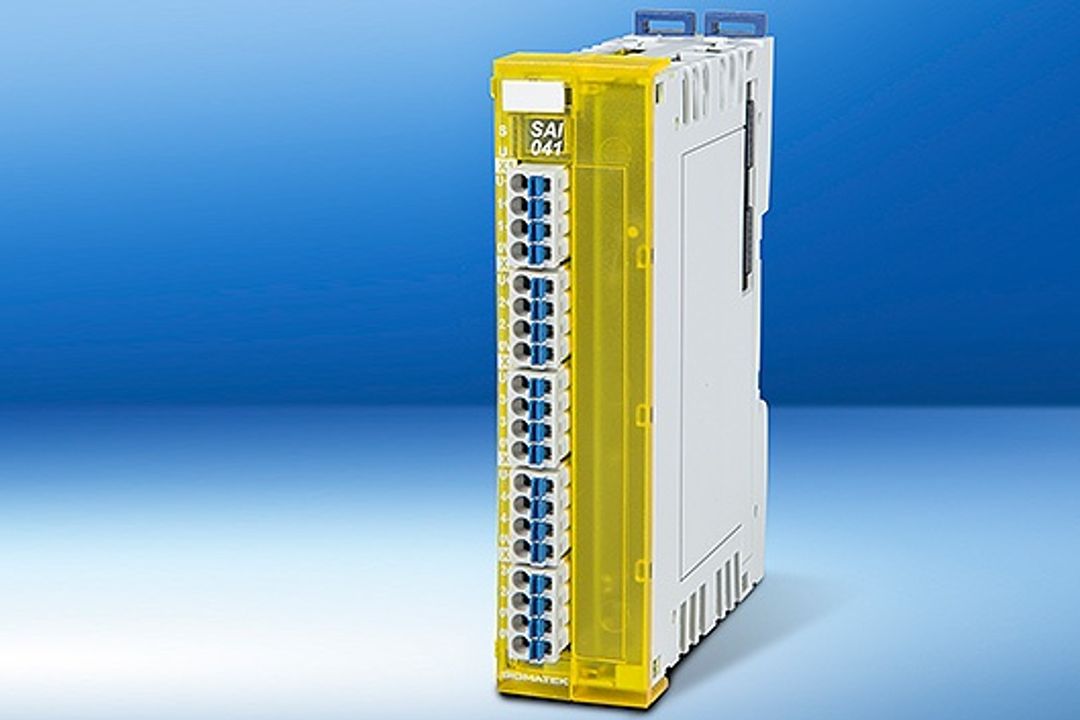

Sigmatek is expanding its modular S-DIAS safety system with the SAI 041 safe analog input module.
read more...Cleverly packaged - fully automated packaging machine
How can cookies be packaged quickly without breaking? A fully automated packaging machine makes it possible: the individual components - from the digitalized drive technology to the control system - are perfectly coordinated.
read more...Robotics&AUTOMATION 3/2021
Is an industrial robot without a cage really safe? What needs to be considered in the planning phase of human-robot collaborations? And what does a gecko have to do with robotics? The latest e-paper from Robotics&AUTOMATION provides the answers.
read more...Drive technology - the winners!
It was an exciting neck-and-neck race in the drive technology category. Here is an overview of the winners.
read more...Update software quickly and easily

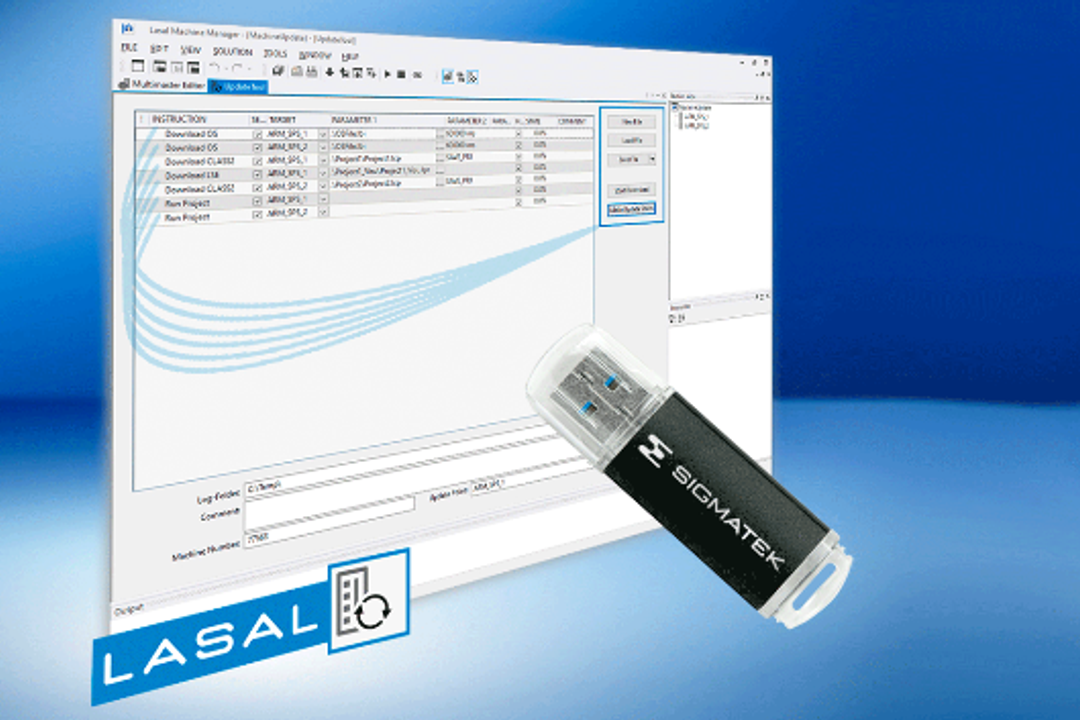

With the new 'Update Tool' in Sigmatek's Lasal engineering tool, program changes affecting the sequence, visualization, control, etc. can be carried out collectively on a convenient interface in the 'Machine Manager'.
read more...Wireless CPU communication

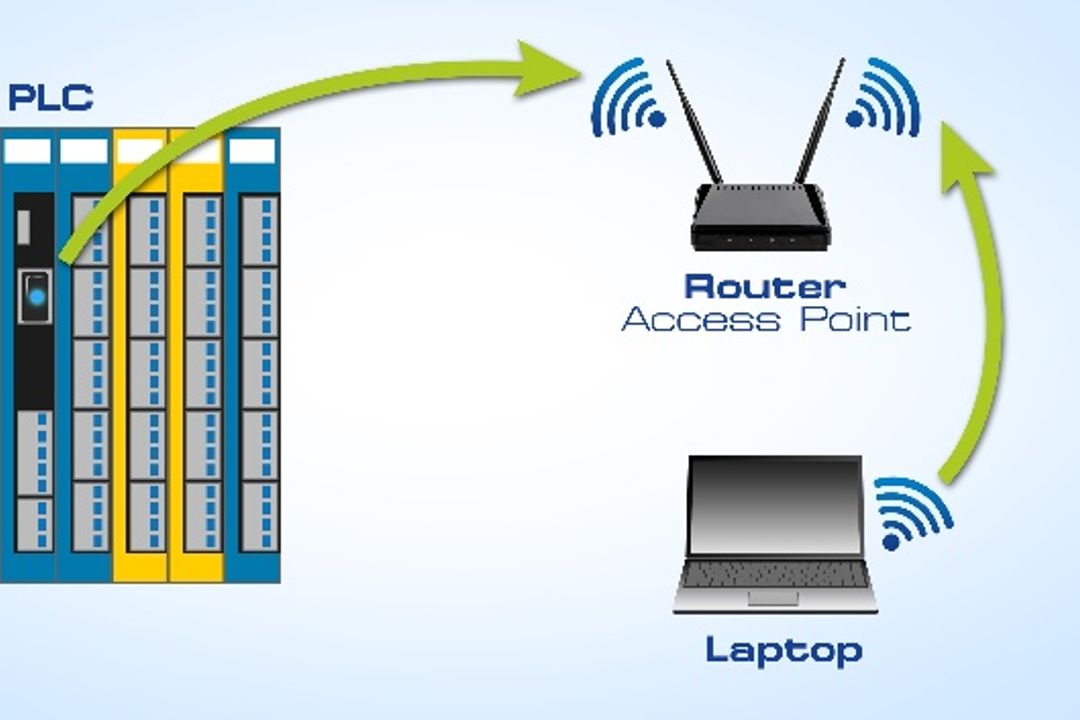

The compact WiFi-C and WiFi-Pro WLAN adapters from Sigmatek enable efficient and wireless CPU communication.
