Enables machines without control cabinets

Controls

Quelle: Hans Turck | Inka Krischke, 28.10.2016, 12:25

Enables machines without control cabinets

The Codesys 3 controller TBEN-PLC from Turck is a compact IP67 PLC for controlling smaller or modular machines.

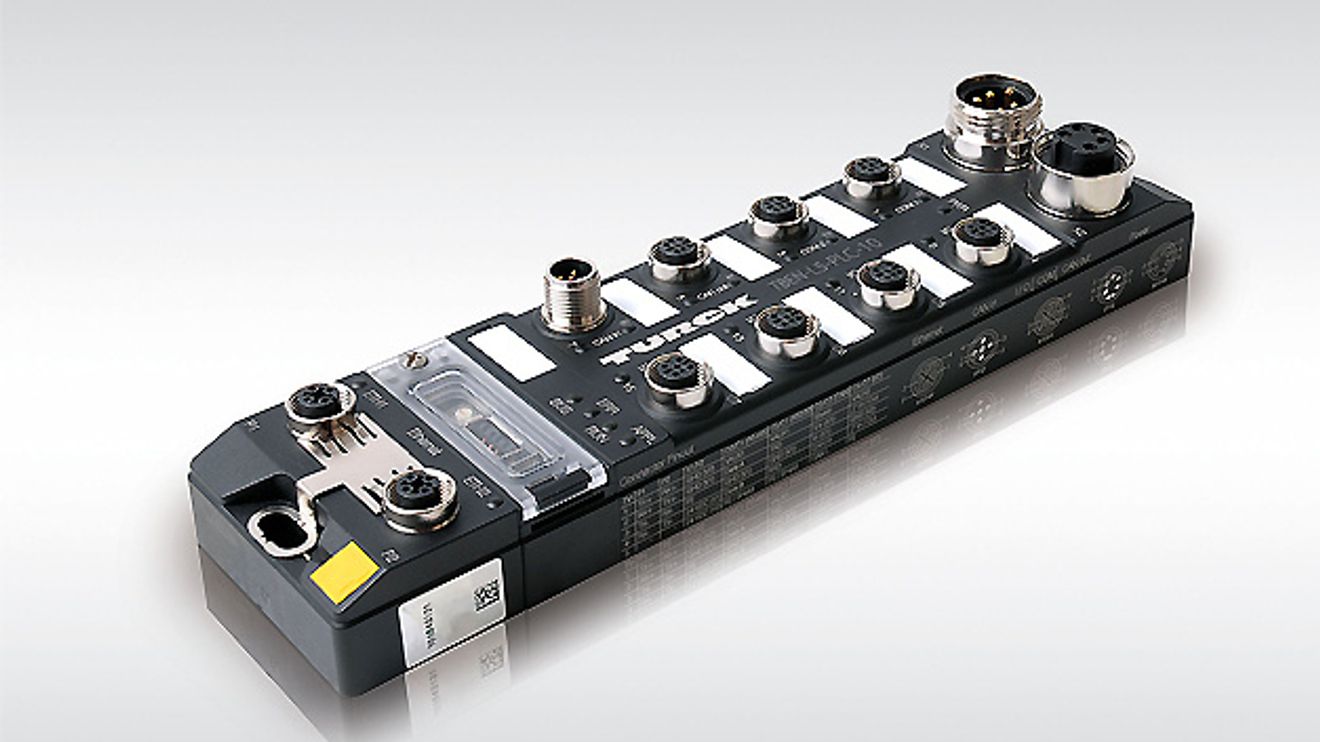

10_Codesys 3 controller TBEN-PLC from Hans Turck

It operates directly in the field, enabling machines or machine modules without control cabinets that can be flexibly connected to other modules via a communication and power supply cable. In this way, users reduce their cabling effort by using pre-assembled cables. The controller offers numerous communication interfaces: As a master, the device supports the industrial Ethernet protocols Profinet, Ethernet/IP and Modbus TCP as well as CANopen and SAE J1939 and the serial interfaces RS232 and RS485. The block I/O controller also offers eight universal I/O channels for the direct connection of sensors and actuators. In the Ethernet networks Profinet, Ethernet/IP and Modbus TCP as well as in Modbus RTU and CANopen networks, the controller can also act as a slave (or device), which enables it to be used as a protocol converter. Users program with the Codesys 3 control software.
