Contrinex
Live measurement and data monitoring

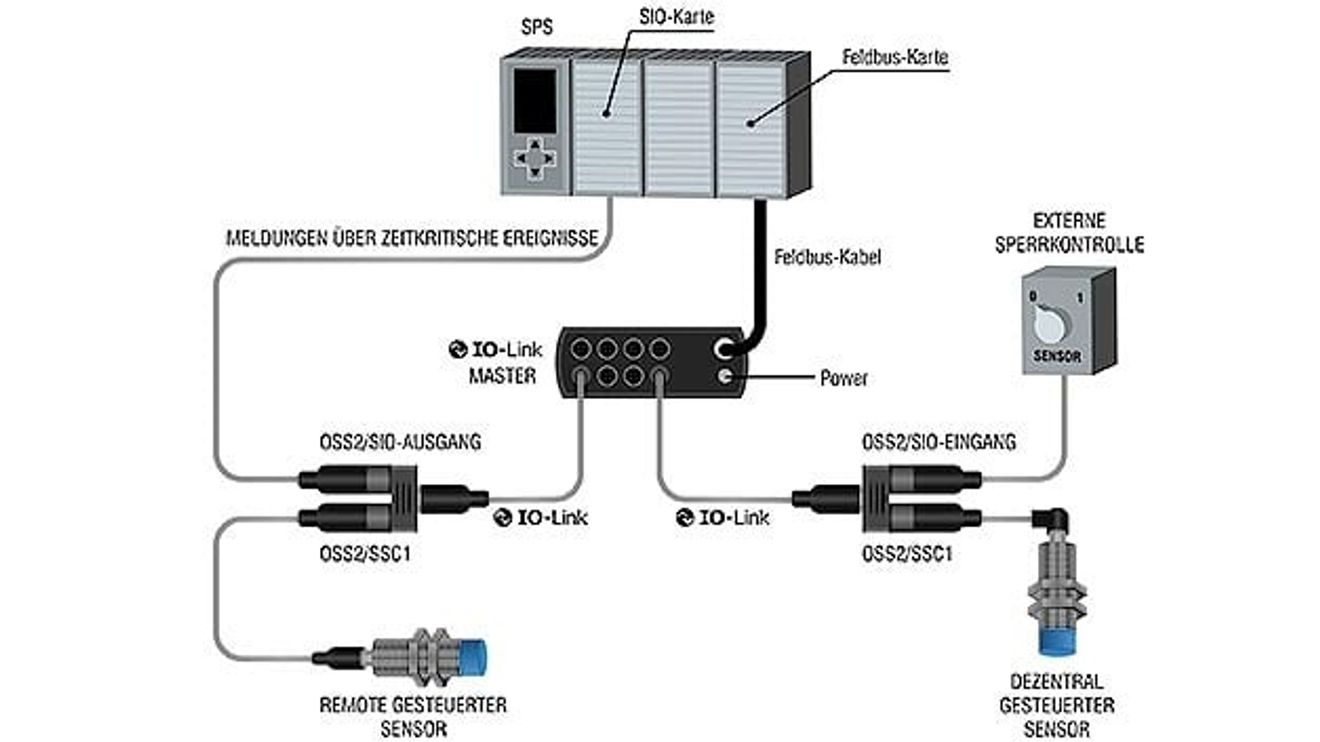

Contrinex cloud-enabled smart sensors are suitable for live data monitoring.
In IO-Link mode, Contrinex cloud sensors support predictive maintenance, among other things. By activating an IO-Link parameter, different types of data can be output from the respective 16-bit register for display and live monitoring. System alarms can also be set to various threshold values. One, two or dynamic teach-in sequences are available for configuring the switching point. The reaction to threshold values depends on the choice of configuration mode (single-point, window or two-point) in accordance with the SSP 3.3 profile.
Used as binary sensors in SIO mode, basic Boolean operations (AND, OR), teach-in, its synchronization with other sensors and histogram data acquisition can also be triggered by other signal sources by setting one of the IO pins as an input. The sensors also send binary output signals directly to the controller during operation in IO-Link mode.
You might also be interested in
Sponsored content: Product news from the industry
Every month, we present the latest product announcements from well-known automation manufacturers.
read more...Resistant to washdown and process fluids
Contrinex is expanding its range of photoelectric sensors with M12M and M18M devices in metal housings.

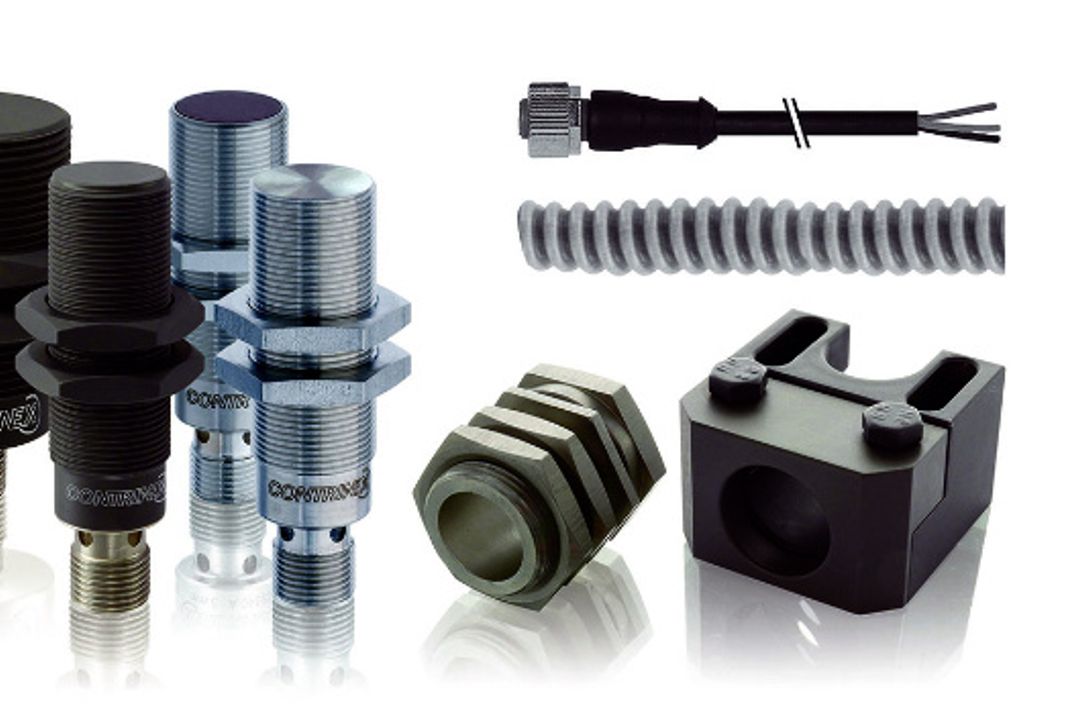

read more...Withstand even high-intensity magnetic fields
Contrinex has expanded its Weld-Immune series of weld-resistant inductive proximity sensors. The factor 1 sensors with 'Condet' technology detect objects in steel and aluminum without reducing the switching distance.
read more...Operational safety in mobile machinery
With the DS5, BD|Sensors is launching a compact pressure switch on the market that is primarily intended for use in mobile machinery such as cranes, excavators or harvesters.
read more...Use in hazardous areas
With the IS-TH1, i.safe Mobile is launching a hand-held barcode scanner for use in hazardous areas and industrial environments in the non-hazardous area.
read more...WLAN-capable process monitoring
Kistler has added new features to the ComoNeo process monitoring system for integrated injection molding production: The pressure curve in all cavities can now be monitored more precisely with a process-adapted envelope curve.

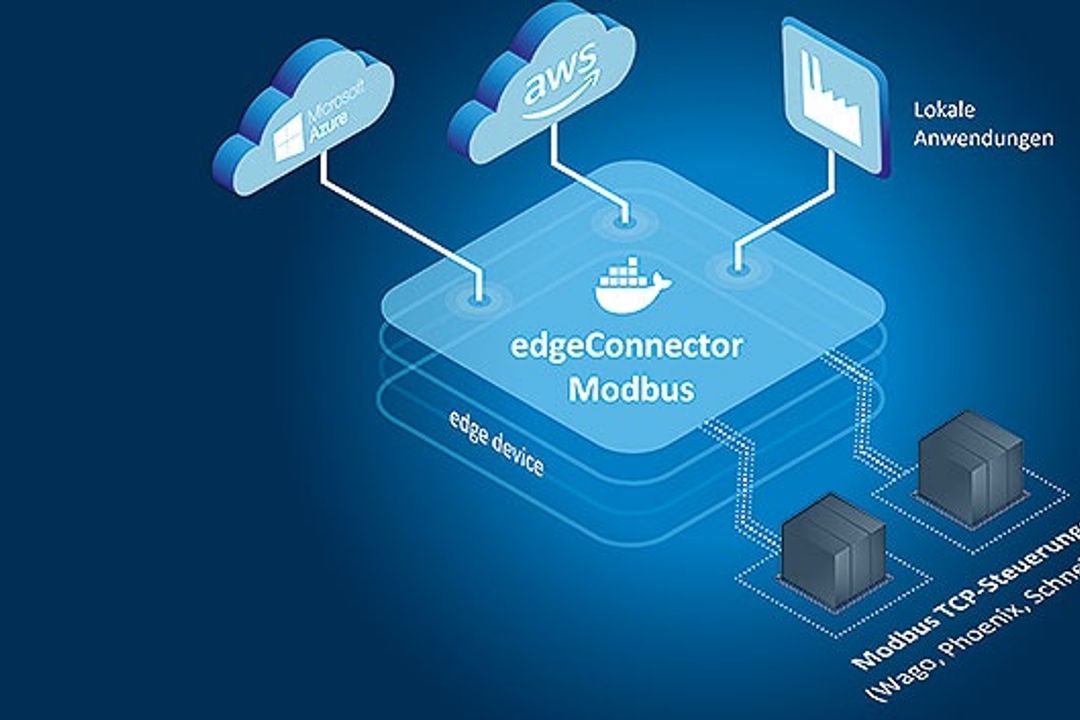

read more...Connecting Modbus TCP controllers to IIoT applications
Softing is adding the edgeConnector Modbus to its edgeConnector product family, which is based on Docker technology.

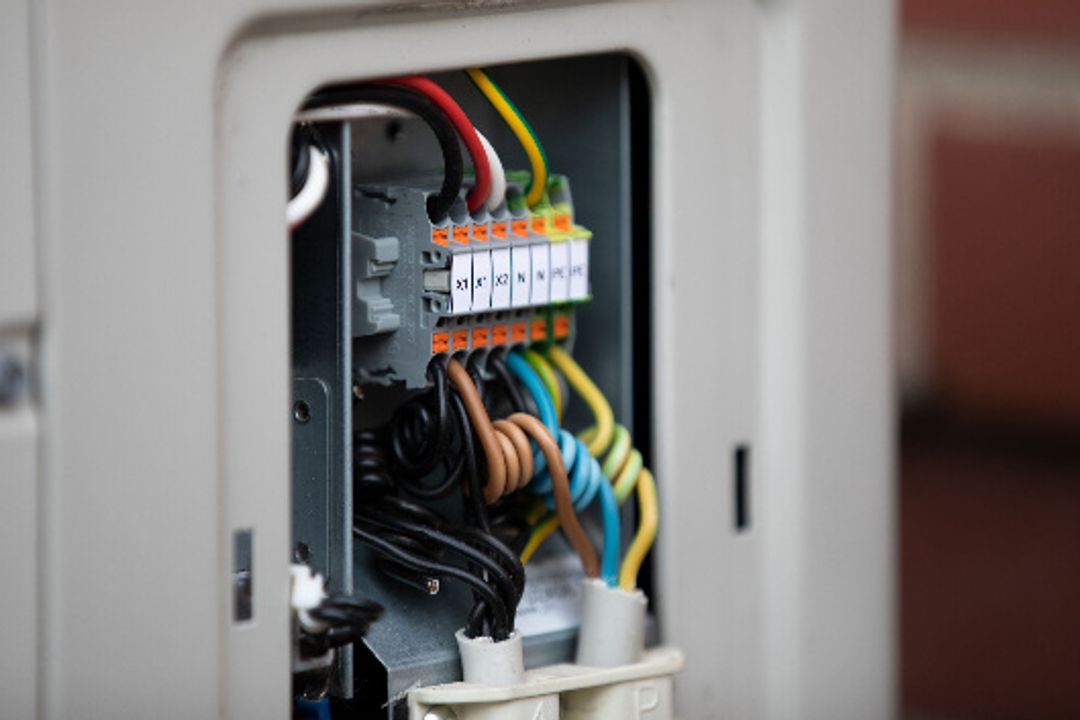

read more...Mini variant in the terminal block portfolio
