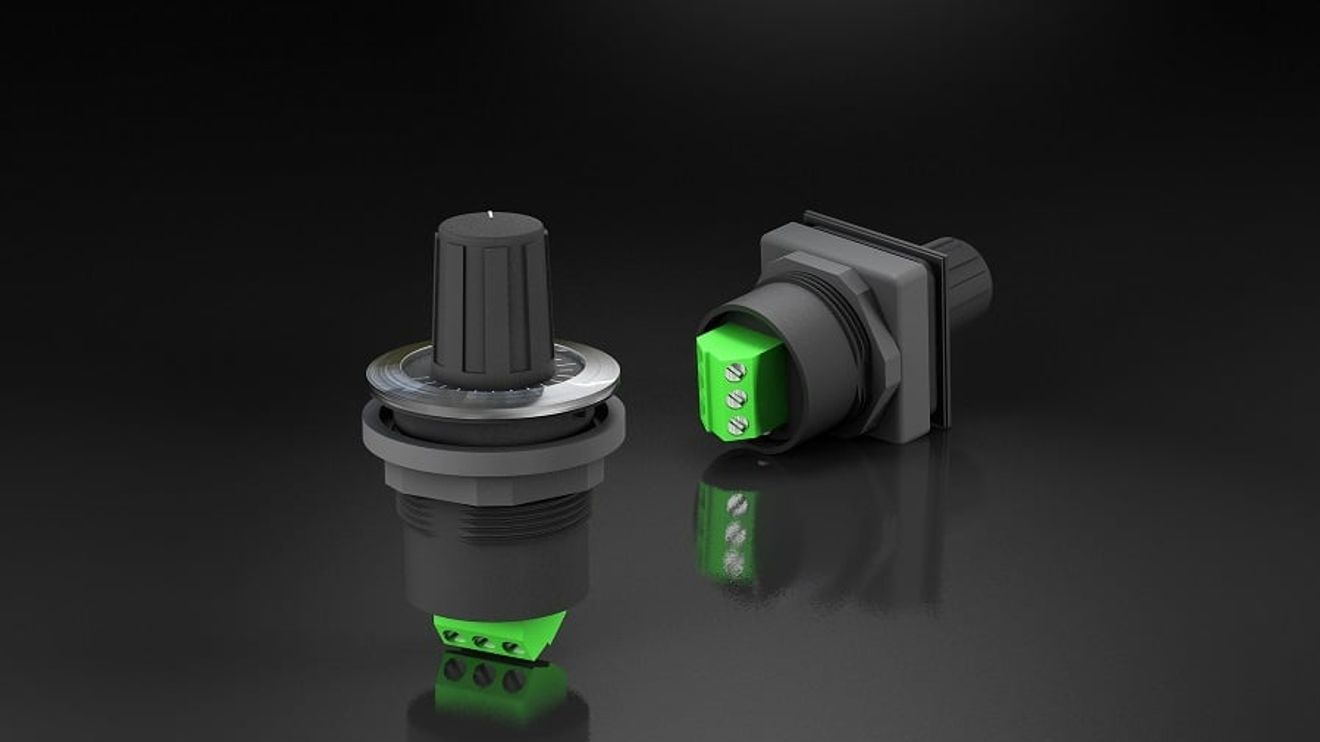

Integrated potentiometer
Georg Schlegel offers drive controllers with integrated potentiometers for the Shortron and Oktron-Juwel series.
In addition to these ready-to-use drive controllers, there is also still the variant for self-equipping, which is intended for customers who require different resistance values than the potentiometers now available with 1, 5, 10 and 50 kΩ, The controllers of the 'Shortron' series (SR1K, SR5K, SR10K, SR50K) are available in the colors silver and black as well as with a stainless steel front ring. Controllers of the 'Oktron-Juwel' series (OKJR1K, OKJR5K, OKJR10K, OKJR50K) are available in black.
The drive controllers from Schlegel are designed for temperature ranges between -20 and +70 °C and have protection class IP66/IP69K. Their mechanical service life is up to 100,000 rotation cycles over a rotation angle of 260°. A maximum rated voltage of 160 V can be applied to the screw connection, with a maximum rated power of 0.1 W. The installation depth for both versions is 31 mm.
