Yaskawa
Embedded solutions for automation
The current profichip brand communication chips from Yaskawa include the all-in-one chip Triton, the multi-fieldbus communication chip Antaios, the slice bus slave controller Notos and the world's smallest Profibus ASIC VPC3+S.
With 'Triton', Yaskawa offers a compact solution for automation and motion control technology requirements. With its 3-core ARM processor, the chip is suitable for fast and precise real-time calculations for motion control applications. It has a total of 4 Gigabit-capable ports and a real-time Ethernet controller as well as a fast backplane bus master for connecting local peripherals.
'Antaios' enables the implementation of high-performance real-time Ethernet communication protocols such as Profinet IRT or TSN/OPC UA. The real-time Ethernet unit of the chip is programmable, which means that all Ethernet-based protocols can be supported.
The slave controller - in combination with 'Triton' or 'Antaios' as slice bus master - is 'Notos'. In addition to digital I/O, the chip has an 80 Mbit/s SPI interface for analog I/O, safety and serial CP with external MCU. Up to 128 bytes of input and 128 bytes of output data can be transferred.
'VPC3+S' is a communication chip with an 8-bit parallel, SPI or I2C microprocessor interface for intelligent Profibus slave applications. It handles message and address identification, data security procedures and protocol processing for Profibus DP-V0, DP-V1 and DP-V2. Acyclic communication and alarm messages are also supported.
You might also be interested in
Update for Panel PCs
Yaskawa is giving its Windows-based Panel PCs a comprehensive update with new Windows 10-based software. In addition, the capacity has been increased to 8 Gbytes of RAM and 64 Gbytes of operating system and user memory.
read more...Intelligent load handling
According to the manufacturer Yaskawa, the CR700 frequency inverter improves productivity, reduces energy and overall costs, enables preventive maintenance measures and increases environmental compatibility thanks to numerous intelligent functions...
read more...Small controller with more memory
The small controller 'Vipa Micro' from Yaskawa is available in an updated version: The main memory has been extended to 128 Kbyte as standard.
read more...In networked factory and process control systems
With netMotion, Hilscher is expanding its strategy of supporting several real-time Ethernet protocols with firmware-based solutions to include the area of motion control.

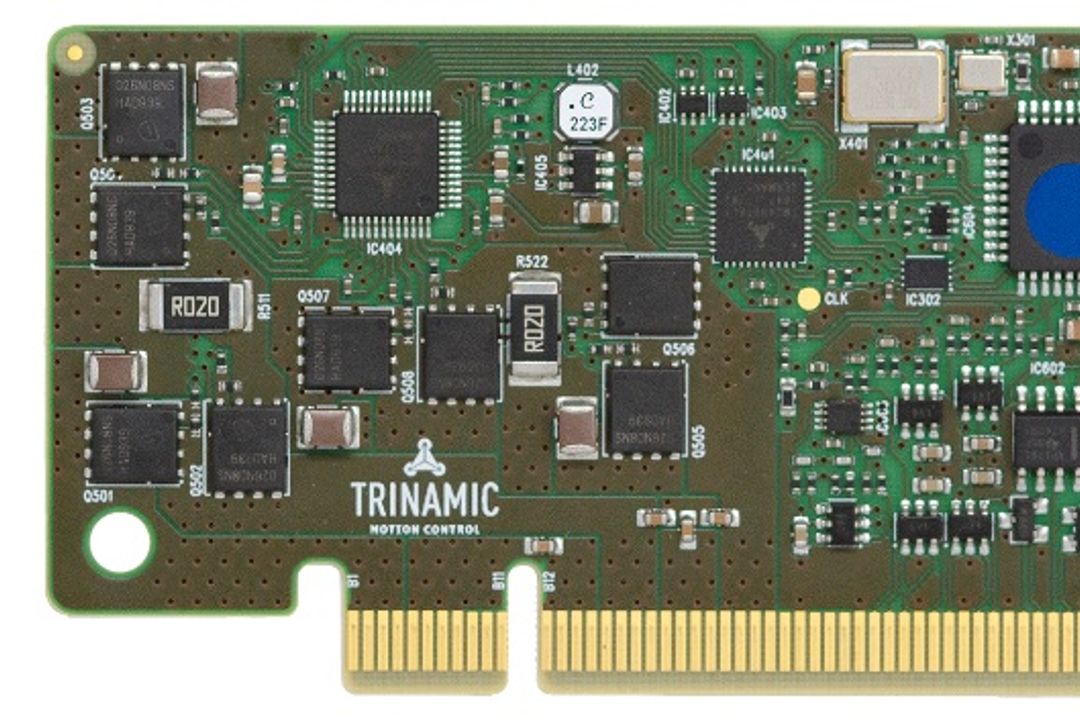

read more...Sensorless real-time control for industrial motors
