Safety for AGVs

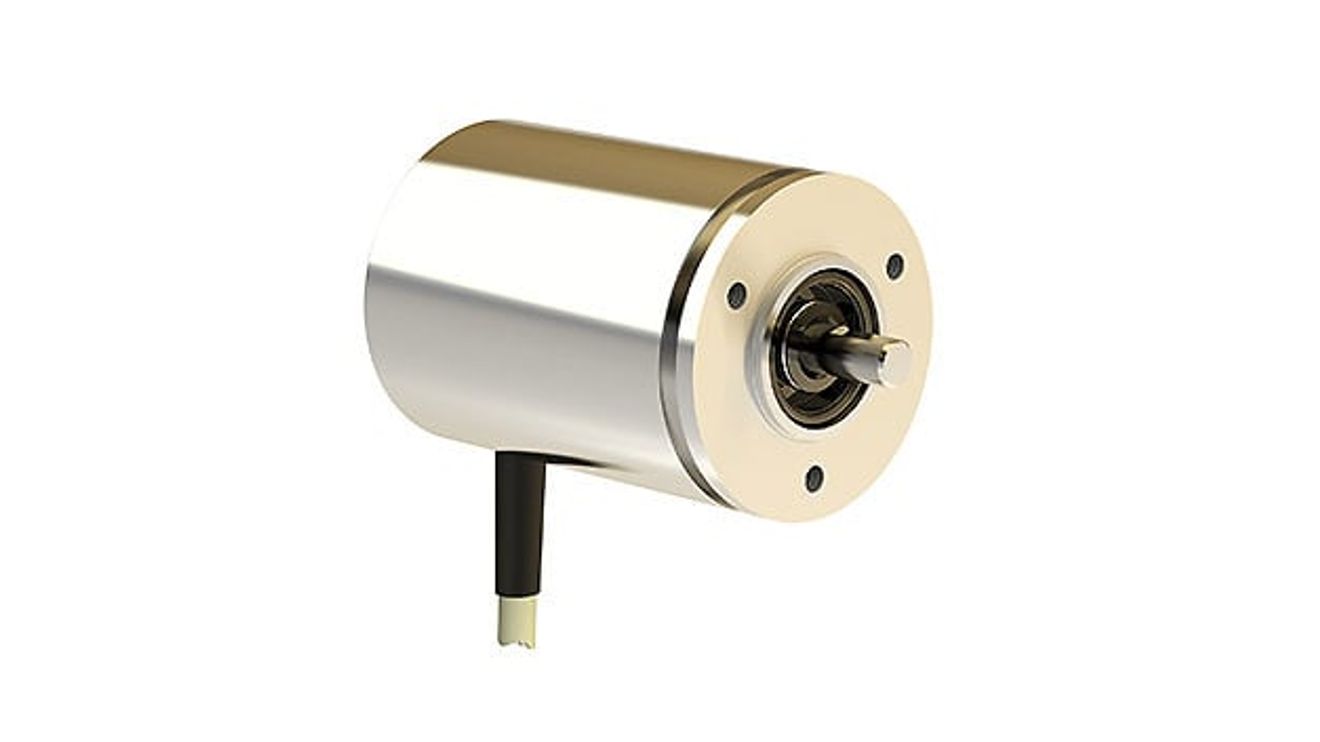

TWK presents the TxSN sensor model with magnetic sensor system in the series of functionally safe sensors with the CANopen Safety interface standard (EN 50325-5).
The sensor model comprises the TRSN multiturn rotary encoder and its small TBSN singleturn brother. It will fulfill SIL3 according to EN ISO 61508, it is also ASIL-D-compliant according to ISO 26262 and is suitable for the control elements of the remote control station of AGVs (Automated Guided Vehicles) for recording control commands, among other things. According to TWK, the fully redundant design and extended diagnostic and watchdog functions ensure SIL3 capability. Via the SIL3-capable bus system and the CANopen safety protocol, each rotary encoder outputs the position value that has been recorded twice, checked for plausibility and processed in separate microcontrollers, normally and bit-inverted. The usual safety check then takes place in the safety controller to determine whether both values arrive within a time window and whether they are identical - apart from the inversion. If this is not the case, an alarm is triggered and the vehicle is stopped.
You might also be interested in
Sponsored content: Product news from the industry
Every month, we present the latest product announcements from well-known automation manufacturers.
read more...Safety level for mobile vehicles
The 'TBSN/TRSN' model series from TWK Elektronik includes rotary encoders for high functional safety requirements. They are SIL3 certified and ISO 26262 ASIL-D compliant.

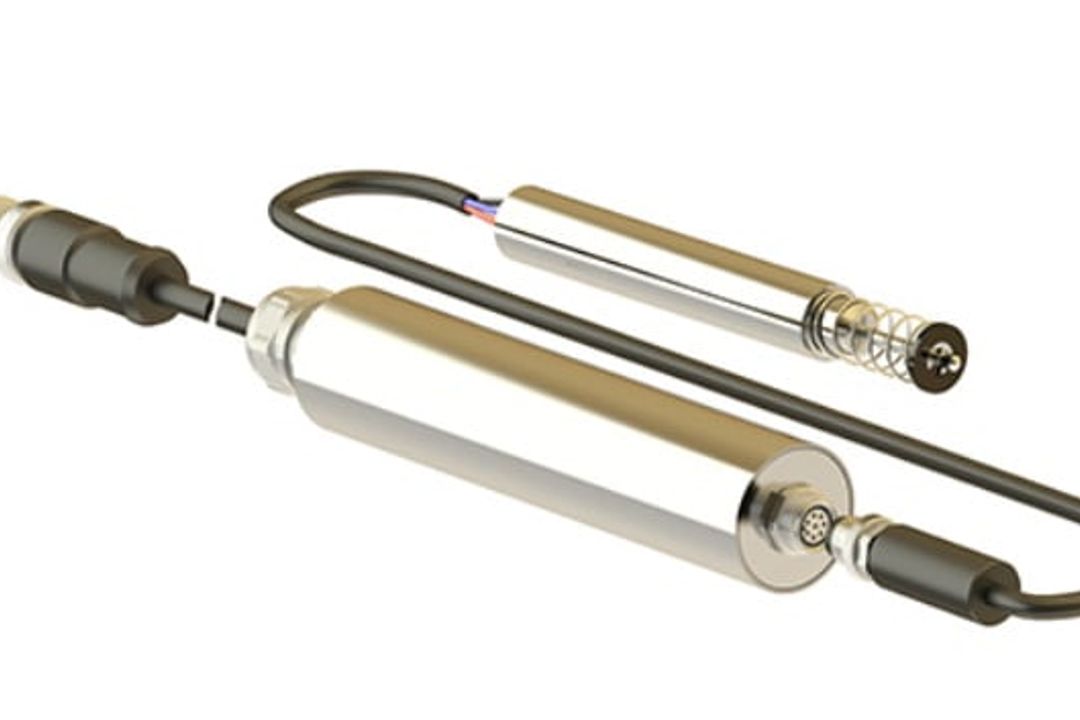

read more...Inductive displacement transducers with IO-Link
IO-Link is now also available for TWK's inductive displacement transducers. Their modular design allows the displacement transducer to be combined with the IO-Link electronics module IEIO25, which complements the 'IE25' series of electronics modules...
read more...With a focus on artificial intelligence
The e-paper of issue 05/06-22
Three trade fairs and the special issue Sensor&Vision await you in issue 5/6 of Computer&Automation. Find out in our special Robotics&Automation section why high plant efficiency does not depend on full automation and how SMEs can use...
read more...The interactive e-paper of the winners
The interactive e-paper Computer&Automation "Products of the Year 2022" offers twelve categories, 36 winners and video interviews with the award winners at a glance! Click right in and experience the industry's pacesetters up close.
read more...Fulfill SIL 2 and PL d
The TRK38 from TWK is a singleturn magnetic encoder that was developed with safety-oriented applications in mind.
read more...Dynamic haptic feedback
With the 'Smart-Knob Mini', Elektrosil is expanding its series of intelligent rotary pushbuttons with a compact solution. The rotary encoder combines rotation and pressure functionality in a robust housing with IP65 protection and a glass surface.

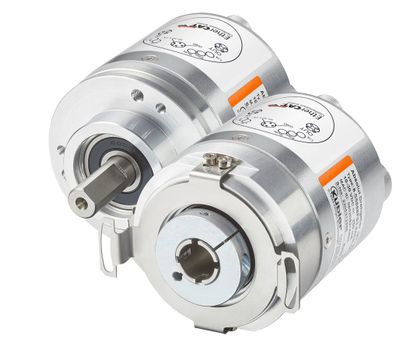

read more...Ethercat encoder with cybersecurity
