Inductive displacement transducers with IO-Link

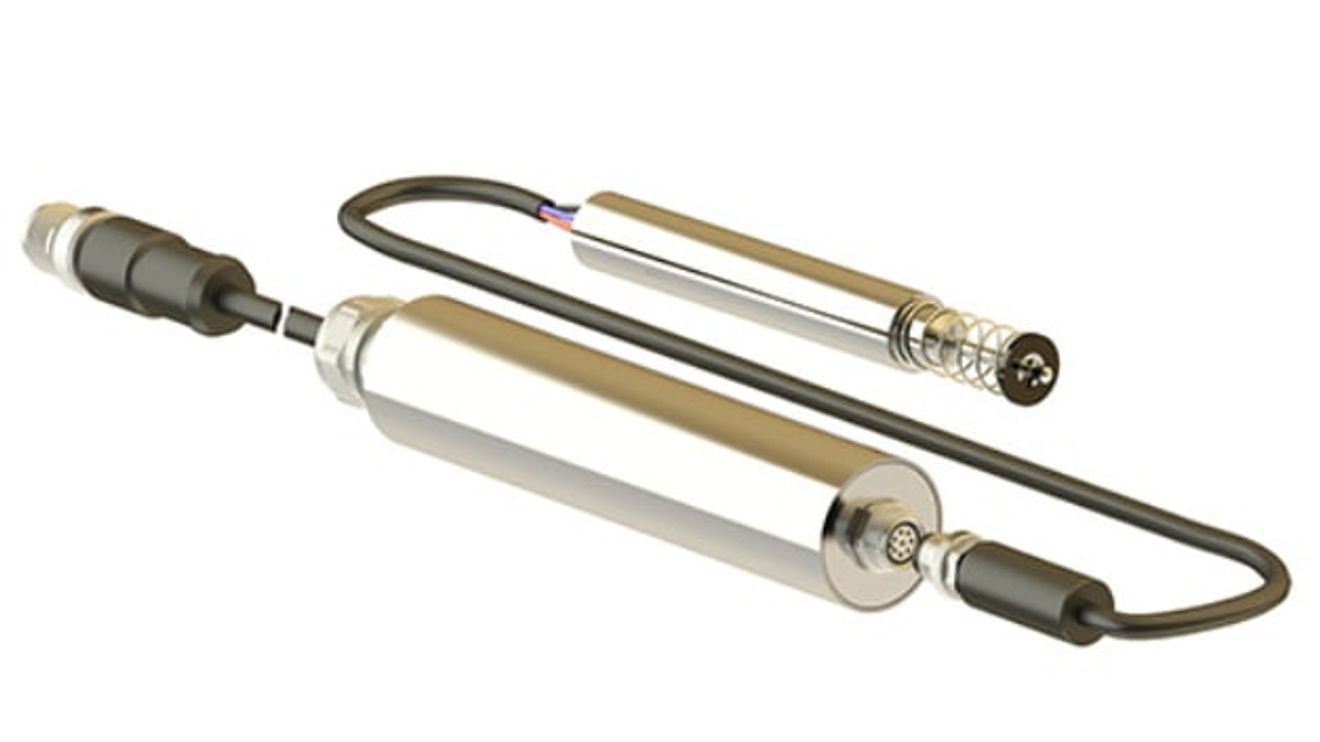

IO-Link is now also available for TWK's inductive displacement transducers. Their modular design allows the position transducer to be combined with the IO-Link electronics module IEIO25, which complements the 'IE25' series of electronics modules with SSI and CANopen interface.
The models 'IW10' (up to 8 mm measuring stroke), 'IW101' (up to 15 mm) and 'IW120' (up to 200 mm) from TWK Elektronik are available as displacement transducers. A cable with an M8 connector is used to establish the connection to the IEIO25 module, which can be placed a few meters away and communicates with the IO-Link master via the 3-wire cable with an M12 connector. The IEIO25 scans the coil system of the position sensor and transmits the position value via IO-Link with 12-bit resolution and a cycle time of less than 5 ms. Additional bytes for the controller temperature and an error bit in the event of an error are also transmitted via the process data. The controller can execute a position preset or load the default values via the control byte (output data of the master).
You might also be interested in
Safety level for mobile vehicles
The 'TBSN/TRSN' model series from TWK Elektronik includes rotary encoders for high functional safety requirements. They are SIL3 certified and ISO 26262 ASIL-D compliant.
read more...25 years of Computer&Automation - The e-paper
For 25 years, Computer&Automation has accompanied the growing influence of IT in automation technology. Ultimately, IT and automation can no longer be clearly separated. In this anniversary issue, you can read about the importance that...
read more...The e-paper for the special issue
Sensor & Vision 2023
Intelligent sensor technology always requires smooth interaction with software and surrounding systems. The examples in this e-paper demonstrate what this can look like in individual cases. This shows that team play counts - in sensor technology as...
read more...Safety for AGVs

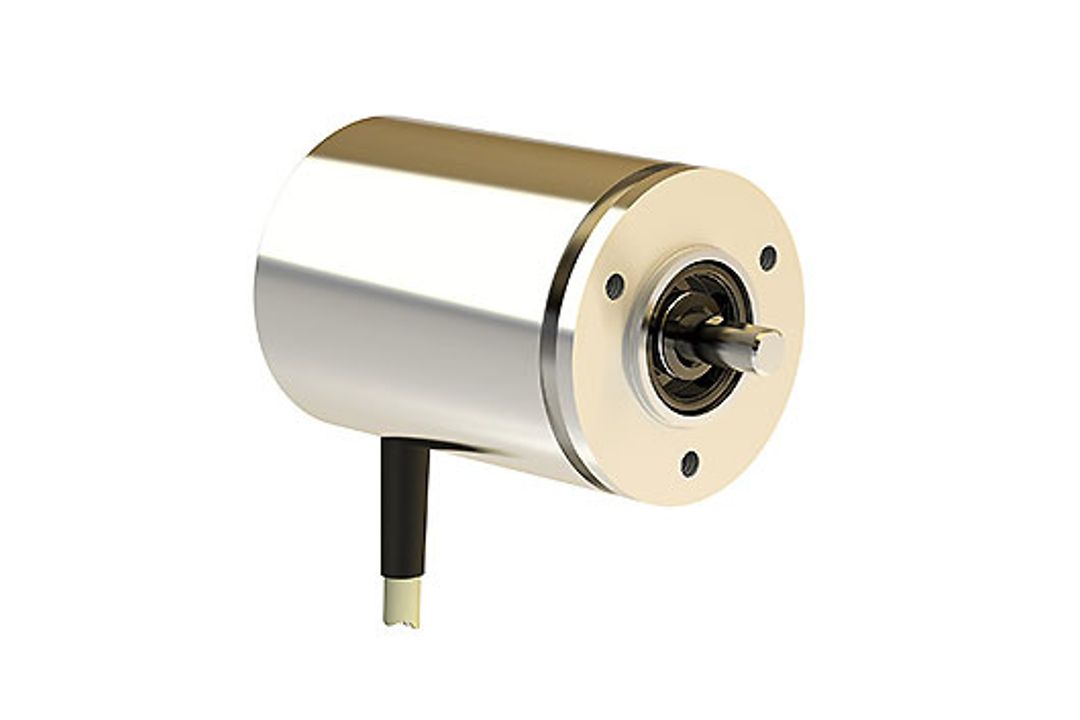

TWK presents the TxSN sensor model with magnetic sensor system in the series of functionally safe sensors with the CANopen Safety interface standard (EN 50325-5).
