Sensorless standstill detection of drives

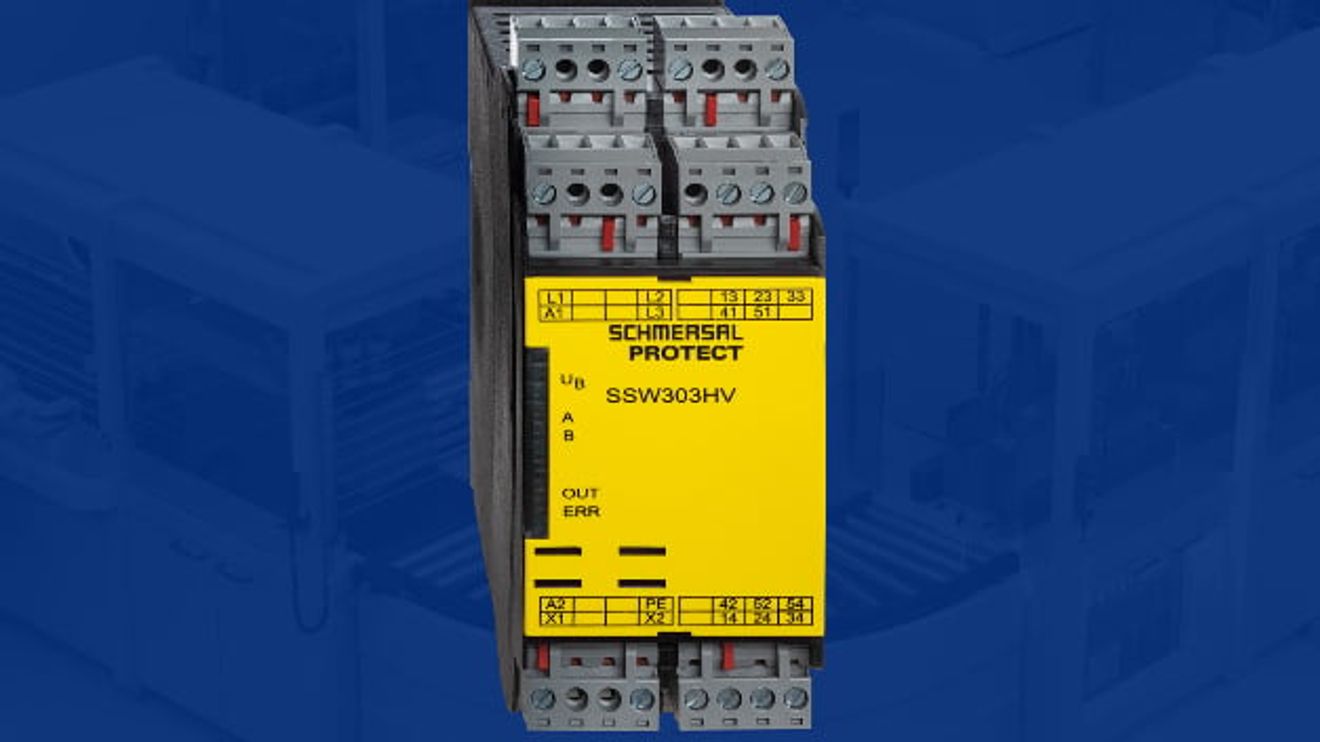

With the 'SSW303HV', the Schmersal Group presents a sensorless standstill monitor that offers significant improvements compared to the predecessor models of the 'AZR' and 'FWS' series - including its universal application options.
The standstill monitor replaces a total of fourteen variants of the previous product range. This is made possible by the use of a wide-range power supply unit for all common operating voltages (direct and alternating current) from 24 V(DC)/ 24 V(AC) to 230 V(AC). The increased temperature range of -25 to +55 °C opens up additional areas of application. Another feature is the compact design: according to Schmersal, the standstill monitor only requires a width of 45 mm in the control cabinet. The plug-in and coded connection terminals create the conditions for quick and error-free installation. An additional signaling contact provides information about the error status of the module.
As the standstill monitor works without sensors, the machine designer does not have to intervene in the 'hardware' of the surrounding construction. The safety module is connected directly to a three-phase AC motor and measures the frequency of the induced voltage directly - for rated motor voltages of up to 690 V. The safety contacts for releasing an interlocking device close as soon as the motor comes to a standstill. The 'SSW 303HV' can be used in safety circuits up to category 4 / performance level e in accordance with EN 13849-1 and SIL 3 in accordance with EN IEC 61508 - with all common types of solenoid interlocks from relevant manufacturers.
You might also be interested in
Machine safety made easy
The 'System Engineering Tool' can be used to design complex cable installations for safety switchgear on machines and systems. Users can put together distributors and safety switches using drag & drop. Product Manager Udo Weber explains the...
read more...Four optional functions
Schmersal has further developed the RSS260 safety sensor and equipped it with new software so that it now offers four additional, optionally selectable functions.
read more...Safety for set-up operations
The safety function 'Safely limited speed with safety gate open' is relevant for set-up operation or troubleshooting on machines. Below is an example of a safety solution with a redundant encoder and safety controller.
read more...Sensorless standstill detection of drives
With the SSW303HV, the Schmersal Group presents a sensorless standstill monitor that offers significant improvements compared to its predecessor models.
read more...Predictive maintenance simplified
The Schmersal Group is launching the Safety Fieldbox with Profinet/ Profisafe fieldbus interface, which opens up new safety-related solution options especially for the packaging industry.

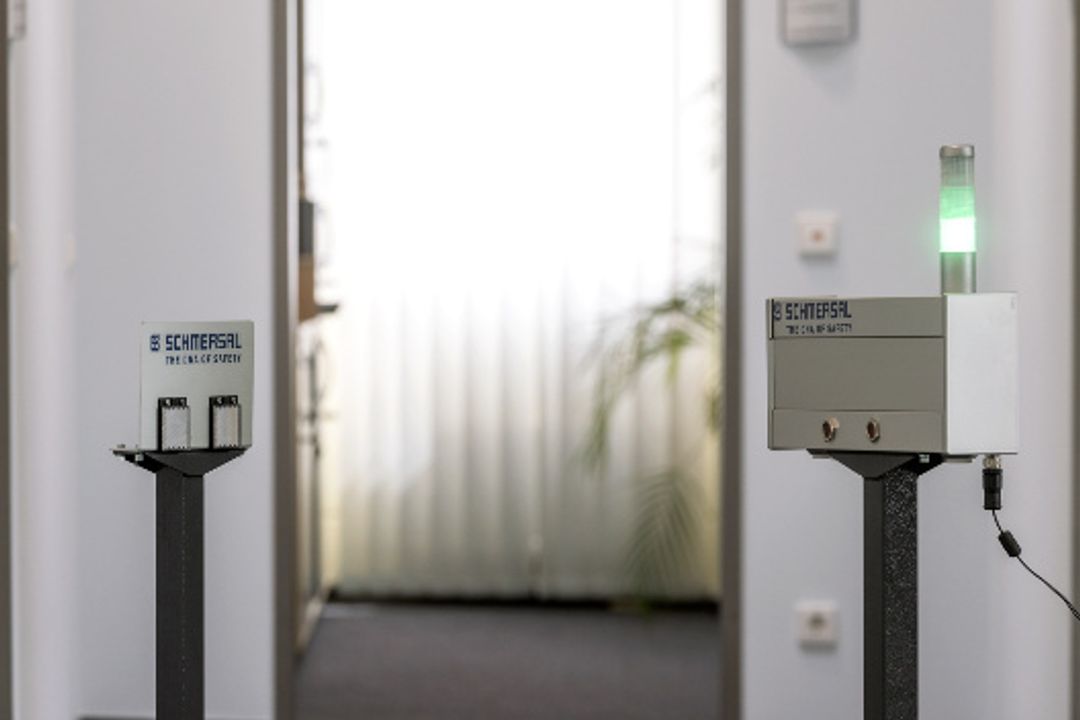

read more...No access! Please wait!
