Georg Schlegel
Operating temperature from -25 to +70 °C
Schlegel has added an emergency stop for the 22.3 mm installation opening to the 'Shortron M12' series. The small and compact FRVKOO_M001 with rotary release has protection class IP65/IP67 from the front and IP65 from the rear and is therefore also suitable for environments with splash water.
The two contacts (AgNi) of the emergency stop are designed as normally closed contacts (NC) and are positive opening in accordance with EN60947-5-1. The emergency stop has a service life of up to 50,000 switching cycles and is designed for operating temperatures from -25 to +70 °C.
The 4-pin M12 connection is A-coded and connected to the emergency stop via a 25 cm long PUR cable. According to the supplier, the electrical characteristics are within a range of maximum Ue 35 V operating voltage and operating currents of Ie 4A (AC15) or Ie 2A (DC13). The emergency stop complies with the EN ISO 13850 and EN 60947-5-5 standards.
You might also be interested in
Emergency stop with pull release
Georg Schlegel is expanding its emergency stop program for the 'Shortron' series to include several variants with pull release.
read more...Designed as a USB-C socket on the front
Georg Schlegel is expanding its range of 22.3 mm panel jacks with two USB-C components. The company is thus responding to the increasing use of USB-C devices in the industrial sector.
read more...With M12 direct connection
Georg Schlegel has expanded the 'Shortron' product family with the Shortron connect with M12 connection.

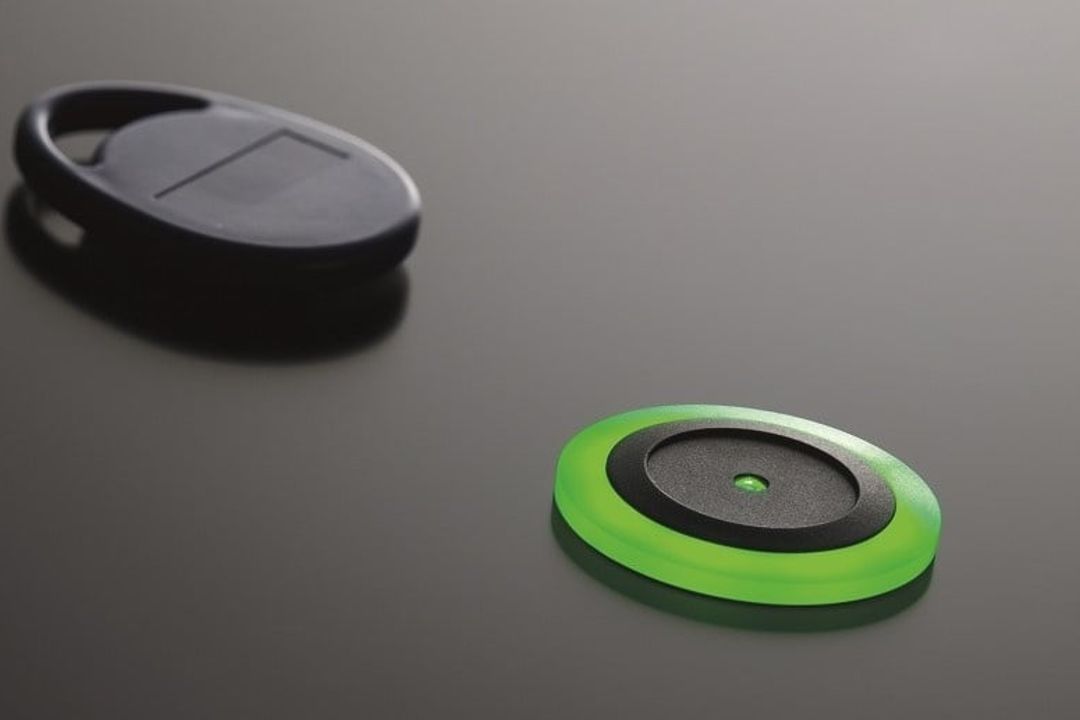

read more...RFID system replaces key switch
IoT capability and easy-to-use protection against unauthorized operation are also becoming increasingly important for classic switches and buttons. Schlegel is therefore presenting an RFID system at SPS Connect that can replace key switches on...

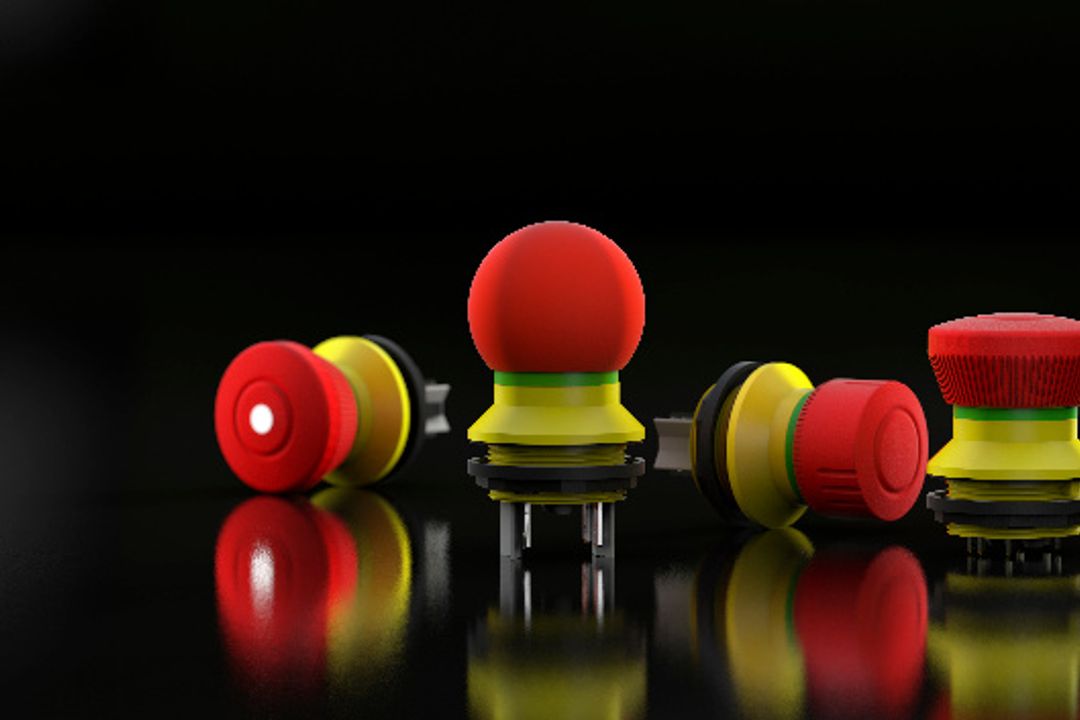

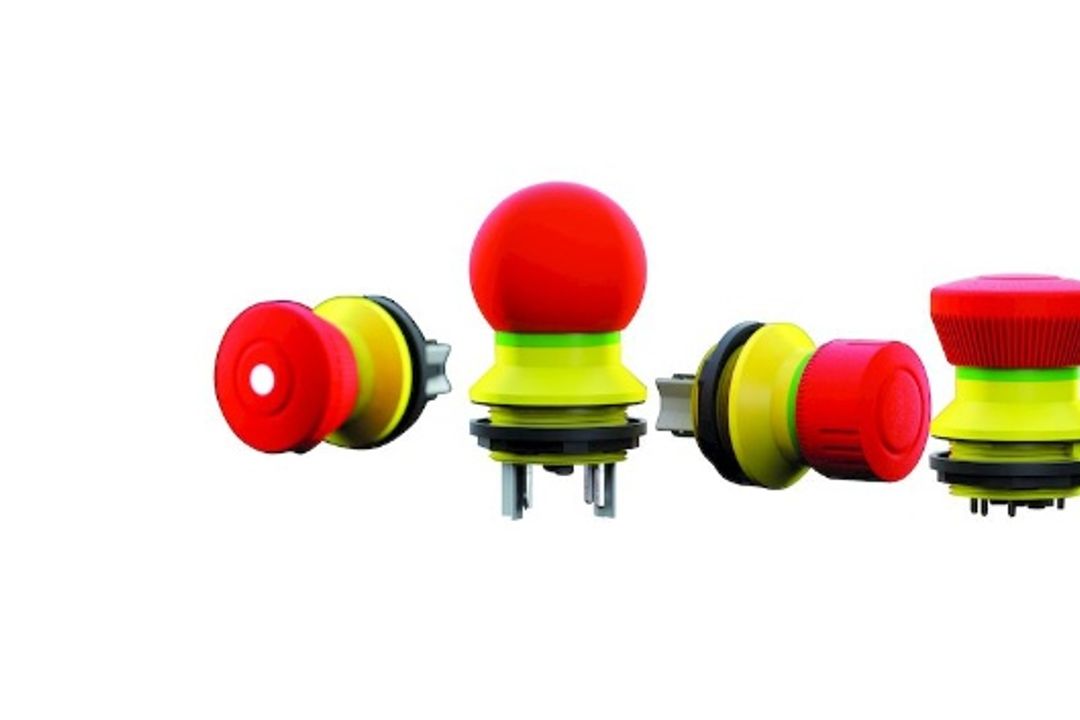

read more...Emergency stop with pull release
Georg Schlegel has come up with a special design for the new emergency stop variants with pull release in the 'Shortron' series: In addition to the mushroom-shaped push-buttons, there is also an emergency stop with a ball head or in cylinder form.

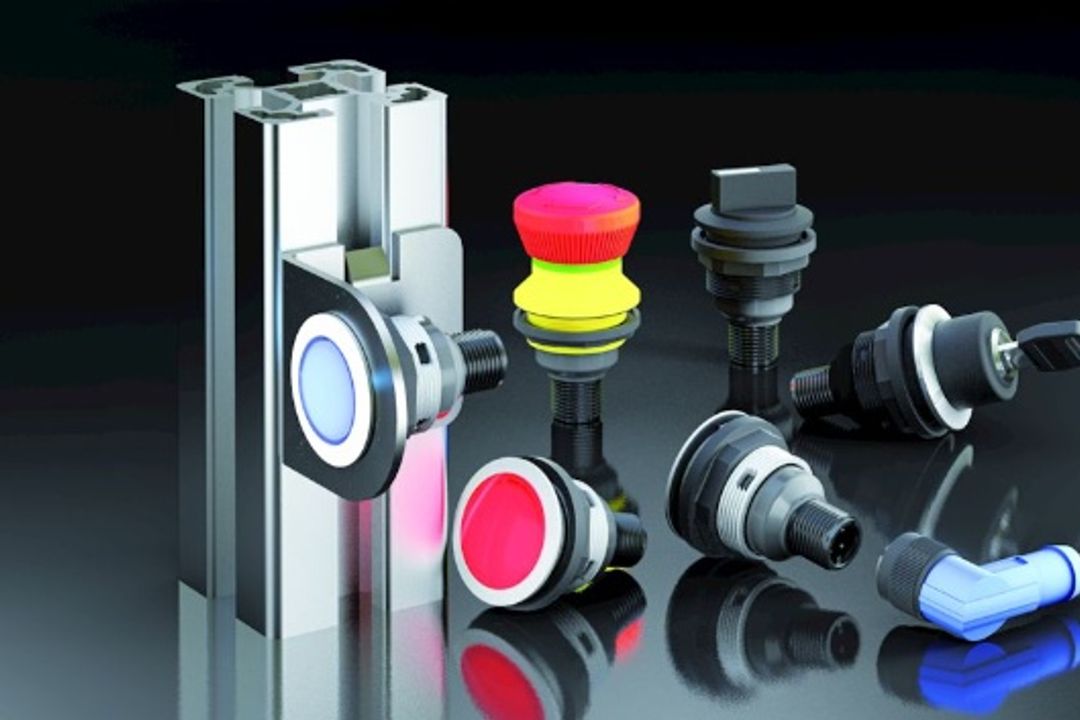

read more...Control devices with M12 direct connection
