Microsens
Digital components integrated into the IP network

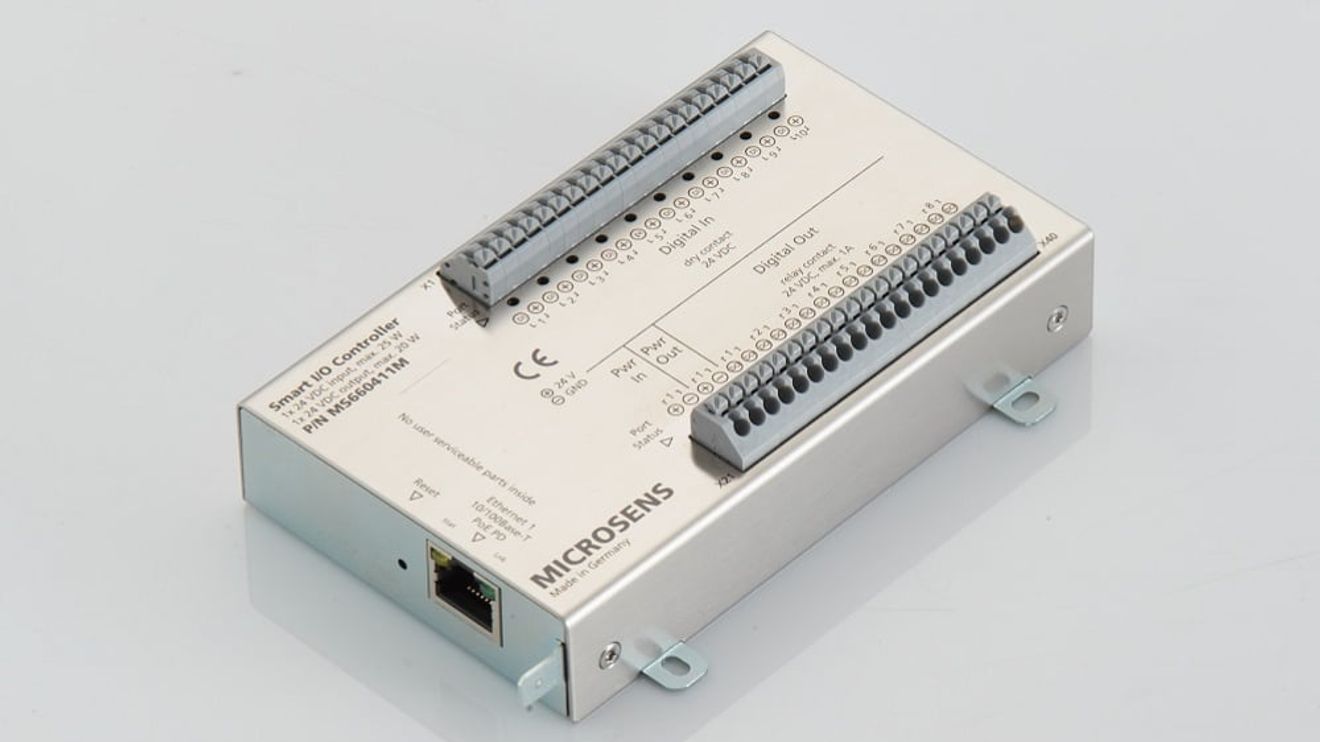

With the Smart I/O Controller with digital inputs and outputs from Microsens, users can easily integrate devices at the sensor-actuator level into the IP network.
Switches, sensors and actuators thus become part of the data network without needing their own IP connection and the associated cabling. The controller provides ten inputs and eight outputs for digital signals. It also offers a connection for supplying a device with 24 V(DC) up to 20 W. The controller itself can be powered either with 24 V(DC) or with Power-over-Ethernet via the data line. Its IP connection transmits data at 10/100 Mbit/s.
According to Microsens, a robust metal housing and a temperature resistance of -20 to +85 °C ensure that the device works reliably even in the harsher environments of a building. As part of the provider's 'Smart Building Solutions' product family, the 'Smart I/O Controller' bridges the gap between classic digital and IP technology. Communication between the controller and the network switch takes place via MQTT.
You might also be interested in
Peripheral devices according to protection class IP65/67
With the Simatic ET 200eco PN, Siemens is launching a new generation of machine-oriented block peripherals onto the market. The I/O family in protection class IP65/67 initially consists of five digital peripheral devices and an IO-Link master device.
read more...Between analog and digital
When measuring with piezoelectric sensors, the charge amplifier is an indispensable link in the measuring chain. As automation progresses, this component undergoes its own evolution from analog to digital.
read more...Simply monitored
Basic knowledge of industrial IoT applications is available in many companies today - but they often lack the know-how to implement them independently. A solution that can be integrated quickly should help to easily monitor the status of...
read more...Simple implementation of IO-Link devices
How can the integration of IO-Link devices into control systems be simplified? An open software-based service for all IO-Link device manufacturers automatically creates function blocks and thus significantly reduces the implementation effort.
read more...Safety controls implemented more quickly
The Platform Support Package (PSP) for Service Pack 16 of 'Codesys V3.5' accelerates implementation.
read more...Secure, tamper-proof data transmission

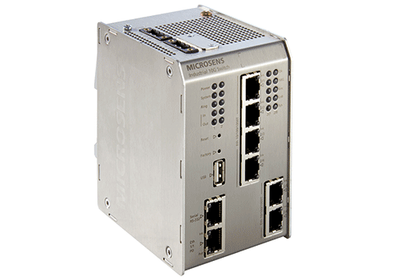

The PLX switch from Microsens in a robust stainless steel housing also works in harsh environments.
read more...News about control technology

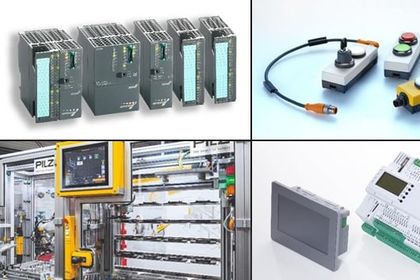

What's happening in the field of control systems and motion control? Computer&AUTOMATION has summarized current products from the field of control technology in a picture gallery.
