Cincoze
Embedded computers for automation

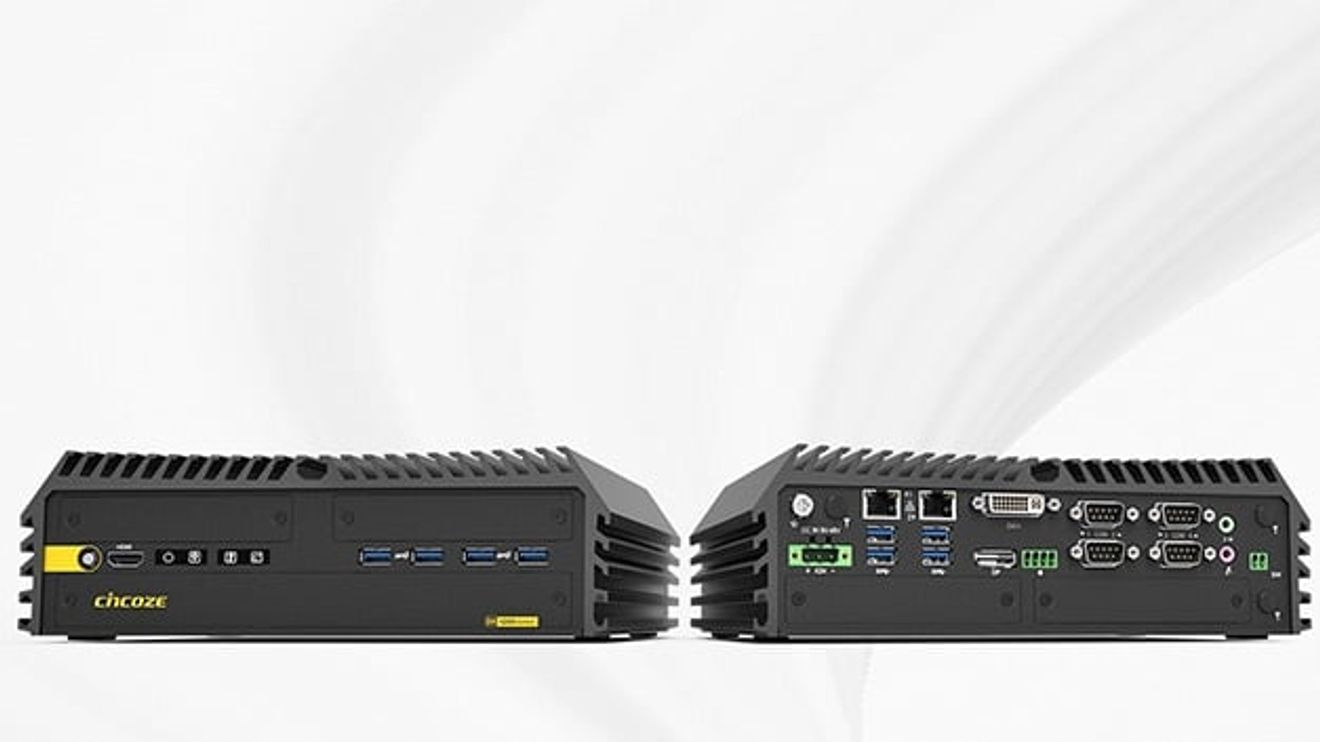

Cincoze is adding the 'DX-1200' embedded computer to its Diamond rugged computing series. The embedded computer is used in industrial automation.
The 'DX-1200' embedded computer from Cincoze is equipped with 12th generation Intel Core i9/i7/i5/i3 processors (Alder Lake-S) with up to 16 cores (8P + 8E) and 24 threads. A DDR5 memory with up to 64 GB, 4800 MHz and ECC technology ensures stability and reliability. According to the company, the Intel Xe architecture of the UHD 770 graphics chip increases GPU performance in image classification to 2.8 times the speed of the Comet Lake-S platform and provides the processing power required for AI and edge computing.
The embedded computer was developed for industrial automation applications. In addition to a selection of native I/O interfaces, further interfaces such as LAN, M12, DIO and COM are optionally available. For example, the DY-1200 can be equipped with up to 4× 10Gbps LAN for applications that require fast provision of large images or data volumes. Other expansion options include 8× PoE, an M.2 key E slot and two mini PCIe slots for additional WiFi, GNSS, 4G and Bluetooth.
Like all members of the Diamond product line, the DY-1200 also operates in a temperature range of -40 to +70 °C, offers a voltage input of 9 to 48 V(DC) as well as overvoltage, overcurrent and ESD protection. In addition to the US military standard for shock and vibration MIL-STD-810G, the embedded computer meets the UL/c-UL/EN/CB 62368-1 safety certification.
You can also follow Cincoze on social networks
You might also be interested in
Embedded Computing & IPC - The winners
The Raspberry Pi has arrived in the world of automation, as the results of this year's reader poll show. Another criterion: the openness offered by Linux. The winners of the 'Embedded Computing & IPC' category.

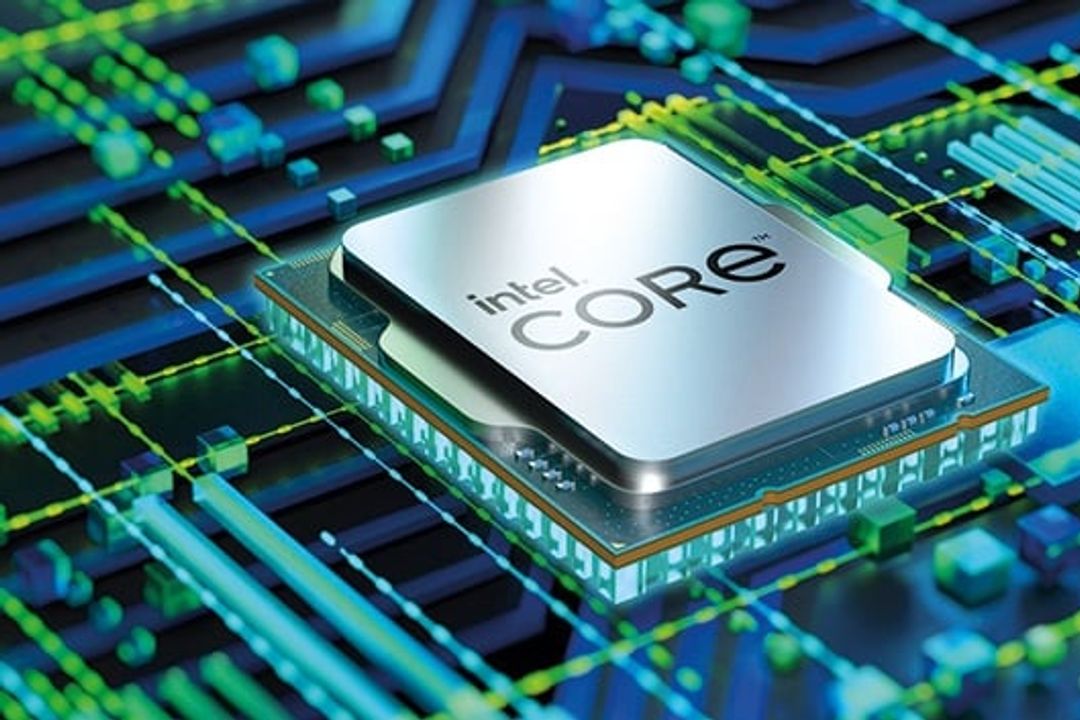

read more...Real-time behavior with dynamic cycle changes
A trend towards consolidating various applications on industrial PCs has been observed for years. This trend is supported by modern processors that can regulate the clock rate per core and are characterized by low-latency switching behavior.
read more...IPC for IIoT gateway
The compact and energy-efficient industrial PC 'DA-1200' from Cincoze is suitable for IIoT gateways in modern industrial applications.
read more...Robust embedded PC with a small footprint
Cincoze launches the DV-1000 embedded PC from the 'Rugged Computing-Diamond' product line.

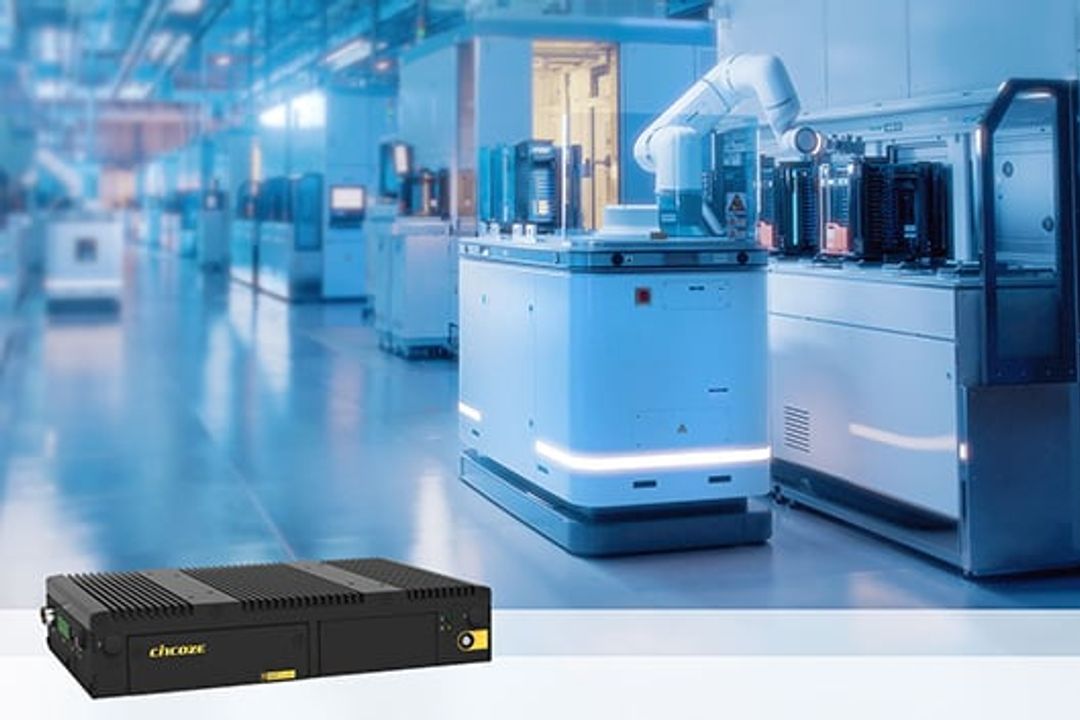

read more...Embedded PC for AMR applications
The 'P1201' embedded computer from Cincoze is ideal for use in autonomous mobile robots (AMR).

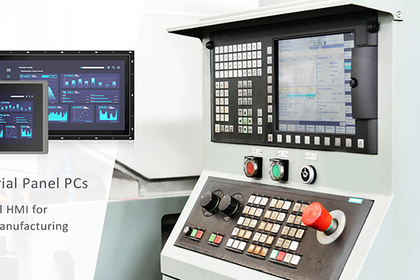

read more...Open-frame panel PC for HMI applications
Cincoze has added an open-frame panel PC for HMI applications to its Crystal product line. The Taiwanese manufacturer relies on its patented CDS (Convertible Display) technology.

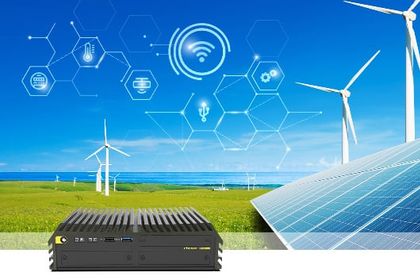

read more...Embedded computers for the Internet of Energy

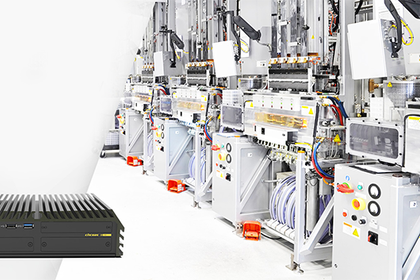

The 'DV-1000' embedded computer from Cincoze's Rugged Computing - Diamond product line is particularly suitable for applications in the Internet of Energy (IoE).
read more...Embedded computer for predictive maintenance
Cincoze is launching the DV-1000 embedded computer for predictive maintenance. As a member of the 'Rugged Computing - Diamond' product line, it is suitable for use in harsh environmental conditions.

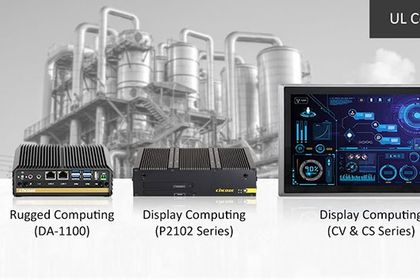

read more...UL certification applied for for further products
