MPL
Based on the 9th Intel CPU generation

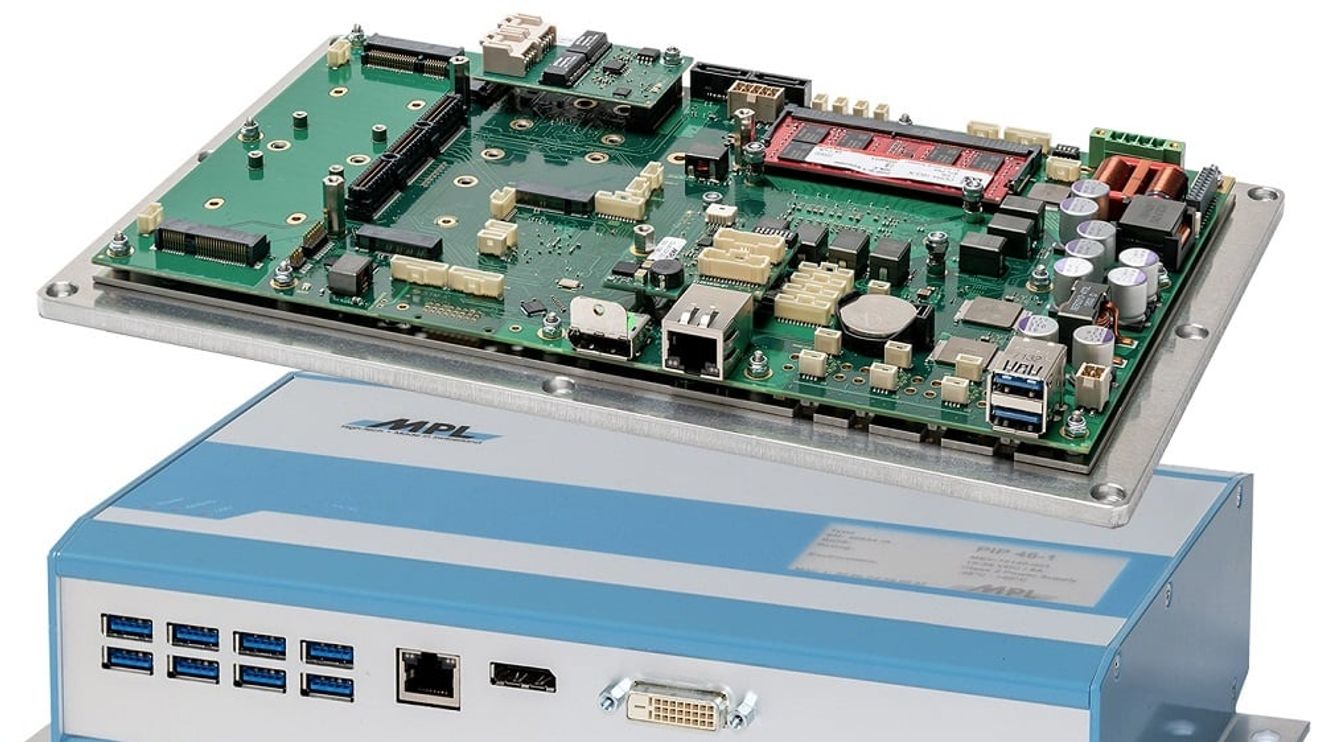

The PIP40 family from MPL is based on the 9th generation Intel CPUs with availability until 2034. All variants are installed in the MPL standard housing with DIN rail or flange mounting.
The open-frame version (CPU board on cooling plate) is best suited for installation in existing cabinets and tight spaces.
The basic version is equipped with interfaces such as Display-Port, DVI-D, USB 3.1, RS232/422/485. Extensions are made via internal interfaces such as mPCIe, m.2 or PCIe/104. WLAN, LTE, GPIOs, CAN, 1553, ARINC et cetera can be easily and quickly integrated into the system, according to the provider.
SATA, mSATA or m.2 are available as mass storage options. According to MPL, the device family can be set to various standby modes and can also be started with Wake On LAN (WOL).
The most common standards such as EN 55022, EN 55024, EN 61000, MIL-STD-461E, EN 60068, EN 50155, MIL-STD-810G, EN 60601, EN 60950, CE, IEC 60945, IACS and E10 are met or exceeded.
