Georg Schlegel
Small pushbutton with blade terminal
The 'Mynitron' series for 16.2 mm installation openings from Georg Schlegel has been extended by a push-button version with spade terminals.
The YKT push-buttons in the series have a slightly larger actuation travel of 1.8 mm and a slightly different pressure point. Thanks to the optimized haptics, actuation is clearly perceived even when operating with gloves. The push-buttons comply with protection classes IP65/67/69K and, according to Georg Schlegel, have a service life of at least 1 million switching cycles. Their installation depth is only 16 mm. The push-buttons have undergone the following tests Vibration resistance according to IEC 60068-2-6 with 5 g, 10 to 500 Hz, shock resistance according to IEC 60068-2-27 with 50 g, 11 ms and salt spray resistance according to IEC 60068-2-11. The normally open contact of the push-button can be operated with a rated voltage of 35 V and a rated current of 100 mA. The front frame color is black, the push-button surface color can be black, white, red, green, blue or yellow.
You might also be interested in
Georg Schlegel at the SPS 2023
Control command devices with IO-Link

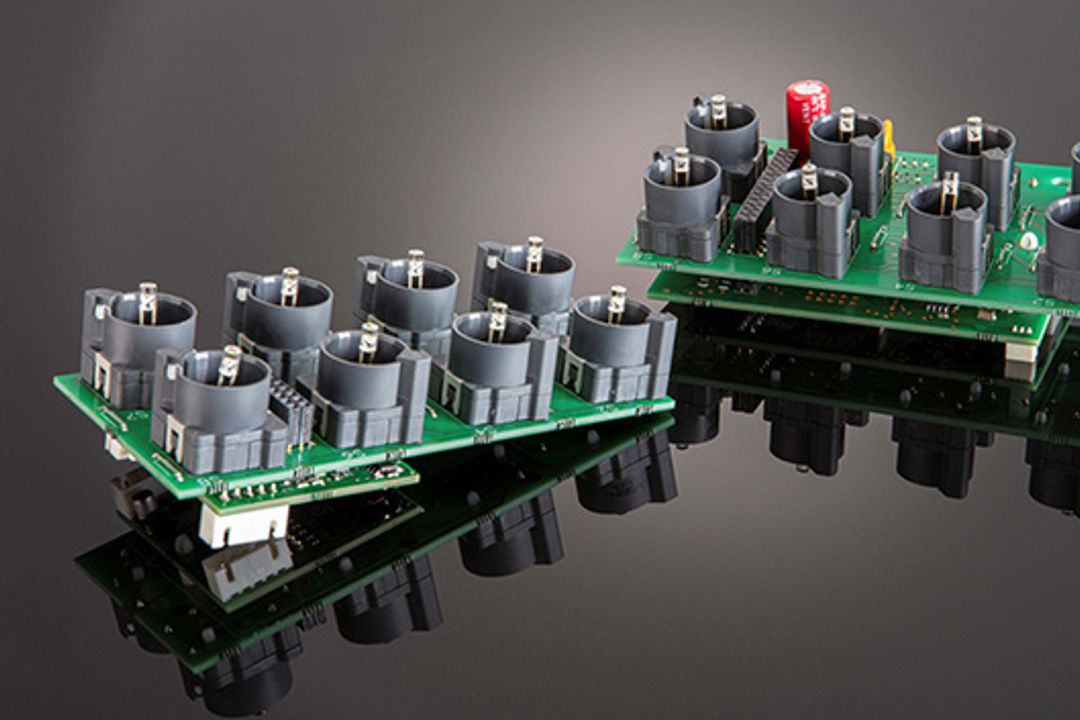

The 'Modular Bus System (MBS)' from Schlegel is used to easily integrate various operating elements into the control systems of machines or systems. The company has now added a basic and extension module to the system in order to control command...
read more...Safety - The winners
The winners in the Safety & Security category demonstrate the broad spectrum of functional safety: from risk assessment to emergency stop switches.
read more...Robust emergency stop for mobile machines
In a joint project, the companies Data Panel and Georg Schlegel have developed a particularly robust emergency stop which, according to them, can withstand even the toughest operating conditions.
read more...For machine life-long use

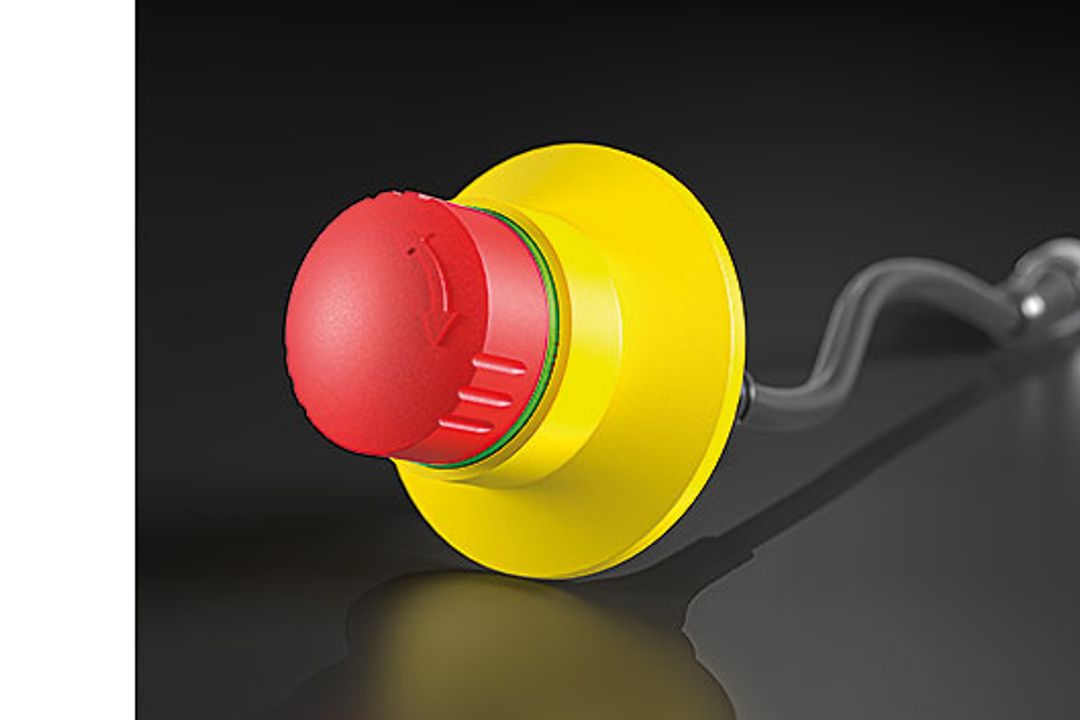

The IP69K combi pushbutton emergency stop is designed for mobile machines and special vehicles that are exposed to difficult environmental conditions. It was developed in a joint project between Data Panel and Schlegel.
