Megatron
In three mounting variants
With its various mounting options, the RC13 displacement sensor from Megatron is suitable for a wide range of applications.

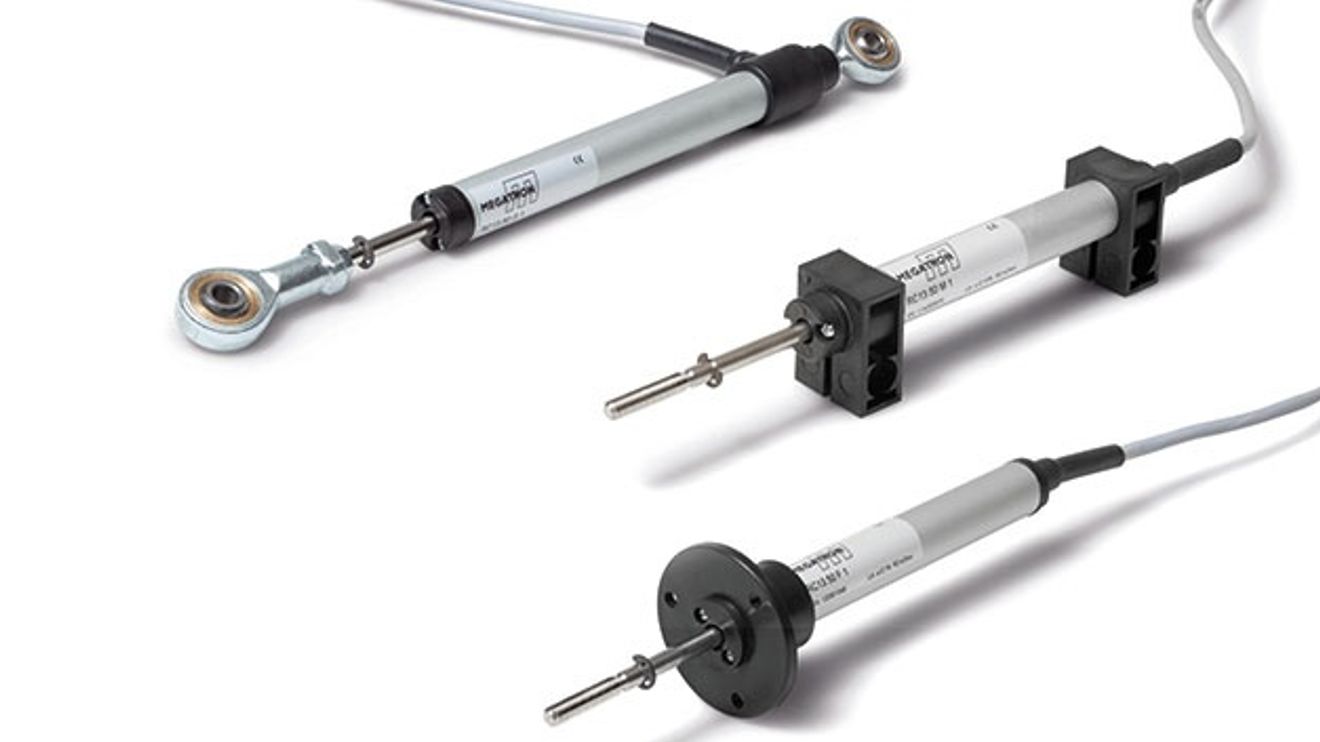

The displacement sensor from Megatron with rod end, mounting blocks or flange. According to the supplier, the features of the sensor include high measuring accuracy with a linearity tolerance of up to ±0.05%, compact dimensions and a service life of >100 million axis movements. In addition, the displacement sensor has a high-resolution conductive plastic resistive element. The mechanical detection of the linear movement is carried out by the push rod guided on one side. Three designs in measuring lengths of 25 to 250 mm are available to the designer for coupling to the application. In the version with rod ends, the ball joints compensate for movements transverse to the push rod so that non-linear movements can also be coupled simply and mechanically without stress. As the linear potentiometer does not require electronic signal conversion, the signal is immediately available without delay after switching on and off and is temperature-stable and robust against EMC influences.
You might also be interested in
Sponsored content: Product news from the industry
Every month, we present the latest product announcements from well-known automation manufacturers.
read more...These are your "Products of the Year 2022"!
Here they are, the winners of the "Products of the Year 2022" readers' poll! Find out which products and solutions from 2021 impressed our readers!
read more...Sensors - The winners
No smart factory without data. This data is collected by sensors of all kinds. Here are the winners in the sensor technology category.
read more...Angle measurement in the smallest space
Thanks to their housing depth of just 6 mm and a housing diameter of 16.4 mm, the hollow-shaft conductive plastic potentiometers in the 'MHP16' series from Megatron are particularly suitable as position indicators in motor valves and actuators.

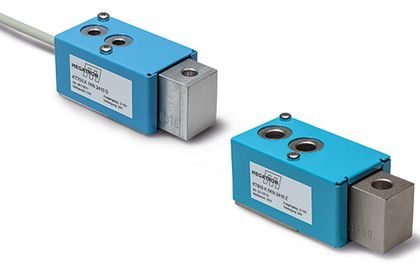

read more...More precise force measurements
The force sensors of the 'KT705' and 'KT805' series from Megatron have been equipped with analog electronics. This means that the force transducers also provide a negative output voltage or indicate when they are actuated in the opposite direction...
read more...The e-paper special: looking for products of the year 2024
They've earned it: all 96 nominated products from 12 categories in their own e-paper. Browse through the individual areas and make your personal selection. You can also find out more about the companies and their solutions in the accompanying video...
read more...Angle measurement in the smallest space
Thanks to their housing depth of just 6 mm and a housing diameter of 16.4 mm, the hollow-shaft conductive plastic potentiometers in the 'MHP16' series from Megatron are particularly suitable as position indicators in motor valves and actuators.

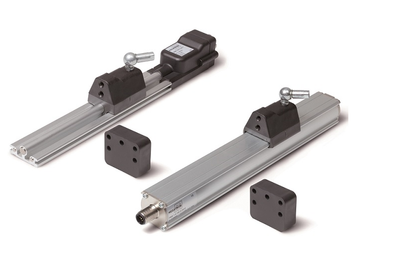

read more...Magnetostrictive and contactless measuring principle
