More performance for IoT edge applications

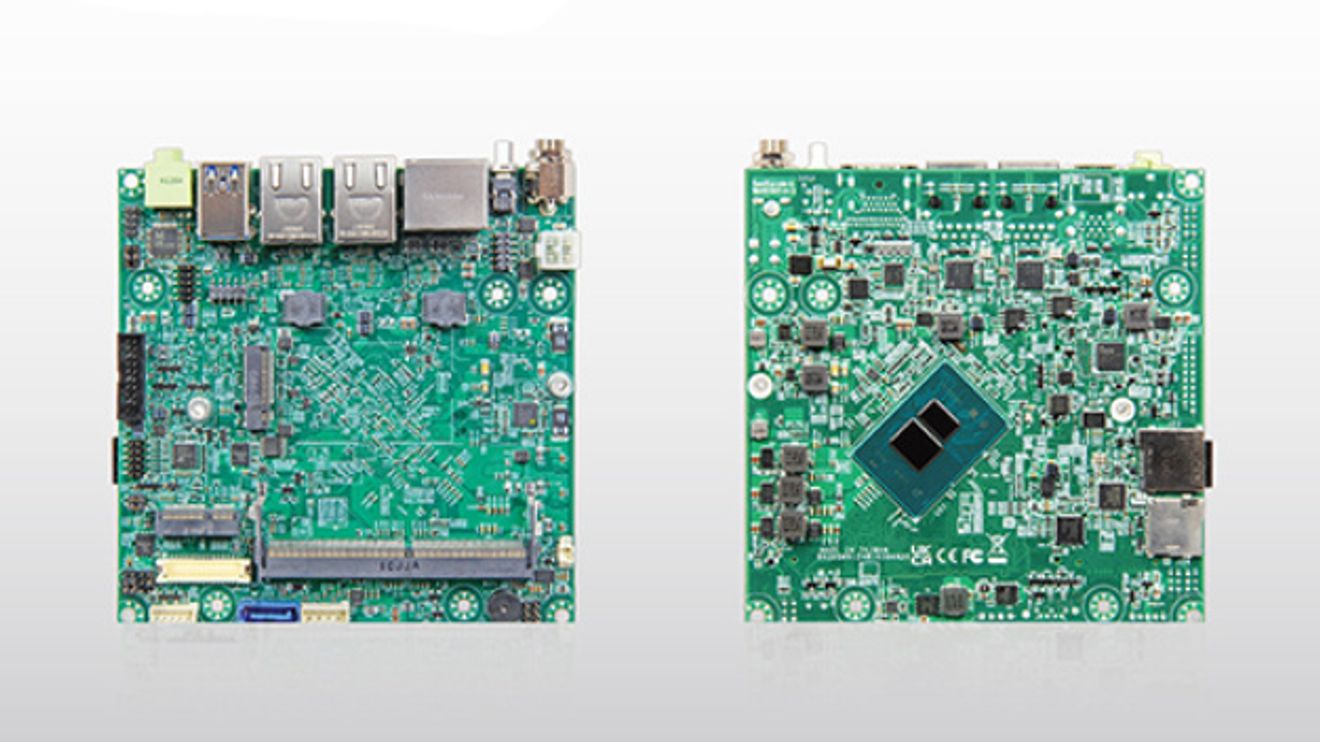

Portwell Europe launches 'NANO-6064', a board for embedded systems in the Nano-ITX form factor (120 mm x 120 mm).
The Nano-ITX embedded system board from Portwell is based on the Intel Atom processors of the x7000E series, Intel processors of the N series and Intel Core i3 processors of the N series with selected SKUs that support fanless designs. Users can also upgrade to Intel Core i3 with a turbo frequency of up to 3.8 GHz in an N-series platform. According to the provider, the board's flat design enables space-saving system configurations in digital displays and compact workstations. The board supports one slot for a non-ECC DDR4 3200 MT/s SO-DIMM with up to 16 Gbyte. It also offers Intel UHD graphics with the Intel Xe architecture with up to 32 EU and three independent displays via DisplayPort, HDMI and LVDS interfaces. The four USB 3.2 Gen 2 ports ensure efficient data transfer. It also supports one socket each for M.2 Key-E and M.2 Key-B for simple, flexible system expansions, for example wireless modules and storage. Other features include 2.5 GbE LAN connectivity via two RJ-45 sockets with Intel's Time Sensitive Networking (TSN) and Time Coordinated Computing (TCC) technologies for better real-time processing and higher processing speeds.
You might also be interested in
With a focus on edge & cloud computing
The e-paper of issue 03/23
Sustainability is at the top of the embedded community's agenda. Prof. Dr. Peter Fromm from Darmstadt University of Applied Sciences explains in an interview why embedded technologies are becoming the key to a sustainable future - in cars, in...
read more...The e-paper of issue 12/2022
Smart, innovative, trend-setting - this is how the automation sector presents itself. It sets the pace for the industry. But which are the most innovative, useful and interesting products? We present the nominations in the current issue.
read more...Computer&Automation Interactive
The new e-paper experience
Where print reaches its limits, our e-paper unfolds its full potential - true to the motto: pictures say more than 1000 words. Our e-papers now contain more information in the form of videos, GIFs, web links and picture galleries! See for yourself!
read more...Processors for industry, communication and edge computing

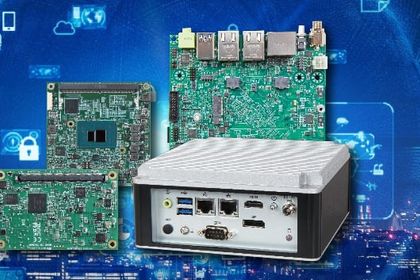

Portwell has announced a series of mainboards, computer modules and embedded systems with the Intel Atom processors of the x7000RE series.
