Power distribution in the switch cabinet

Sagittarius

Inka Krischke, 12.08.2022, 10:06

Power distribution in the switch cabinet

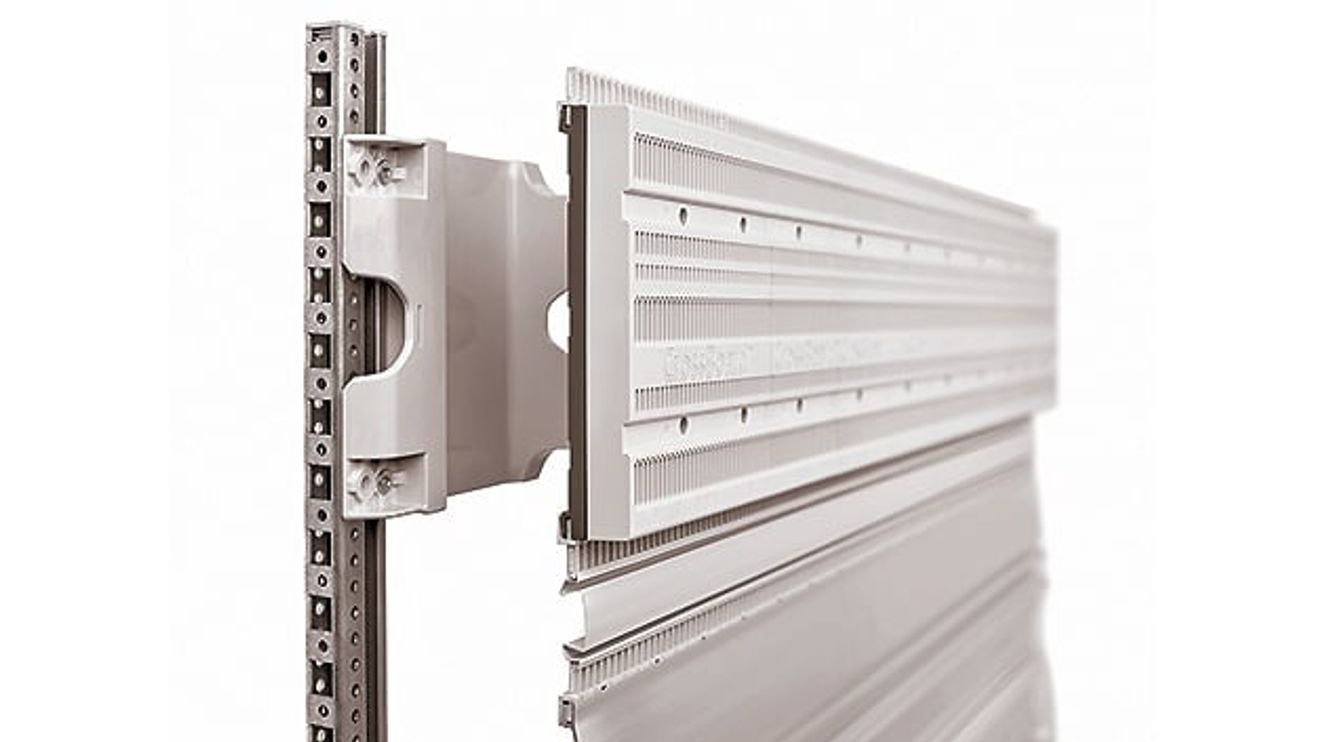

With Wöhner and the 'CrossBoard', the central energy distribution system is mounted on the 'Airstream' wiring frame from Lütze.

The CrossBoard from Wöhner is a modular basic busbar system that can be used to quickly implement power distribution systems up to 160 A. In conjunction with the rear feed, the combination of Airstream from Lütze and CrossBoard opens up new possibilities in terms of sustainability and efficiency in installation and wiring. The CrossBoard lengths are compatible with the standard enclosure widths and Airstream wiring frames. Once the busbar system has been installed, it can be fitted immediately with components that are snapped on without tools, and the contacts are made directly. The integrated reverse polarity protection prevents errors during installation, while the contact hazard protection makes it easier to work with live components. A wide range of Airstream accessories such as wiring combs, wire holders or airblades can be mounted directly on the CrossBoard.

You might also be interested in

Picture gallery

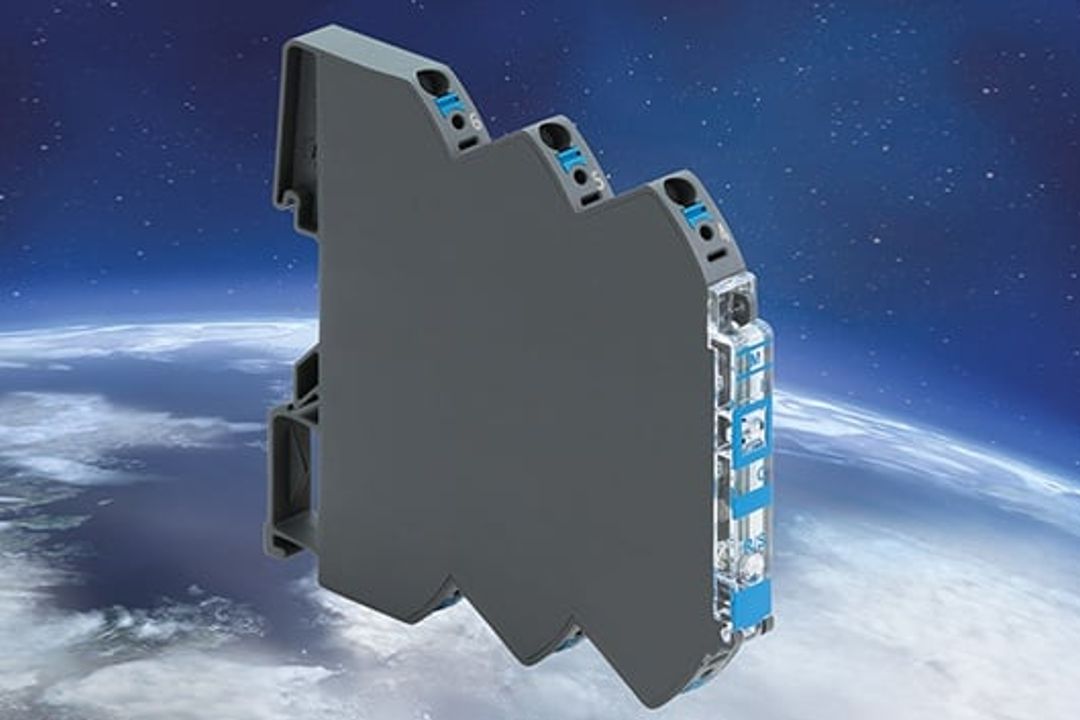

Universal load monitoring up to 8 A
