Lütze at the SPS 2023
Enclosure ventilation in the smallest of spaces

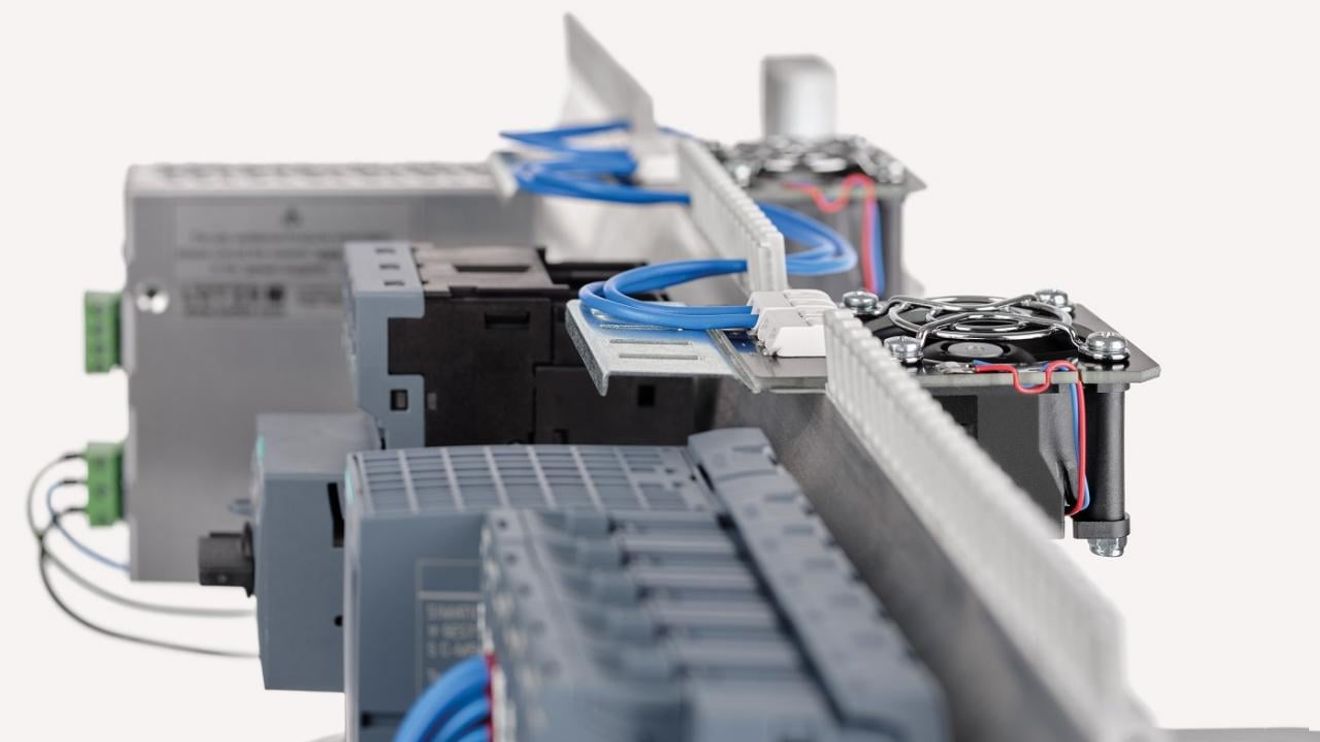

The latest member of the Lütze 'Airstream' product family is the 'Airblower Compact', with which the flow and heat dissipation properties of the Airstream wiring system can also be used in small control cabinets and switch boxes.
Potential hotspots can thus be ventilated in a targeted manner. According to manufacturer Lütze, waste heat is dissipated economically, air circulation is positively influenced and the enclosure climate is homogenized. The ready-to-install fans can be installed during initial assembly or retrofitted into existing enclosure configurations. The 50 mm wide devices can be installed in just a few simple steps: first, a 50 mm standard comb segment is removed and then the fan is snapped into the recess. The devices are UL and CE certified and have a power consumption of 6.9 W at 24 V. One terminal is used to apply the input voltage and another for bridging to the next fan. This means that up to five fans can be connected in series. The power supply runs directly via the circuit board.
Hall 9, Stand 311
