Inka Krischke, 05.12.2017

Color it in and out

Wilbrecht LEDCO, Inc., a subsidiary of Microprecision Electronics SA, is introducing its new CL series of panel-mount LED indicators for industrial and outdoor applications.

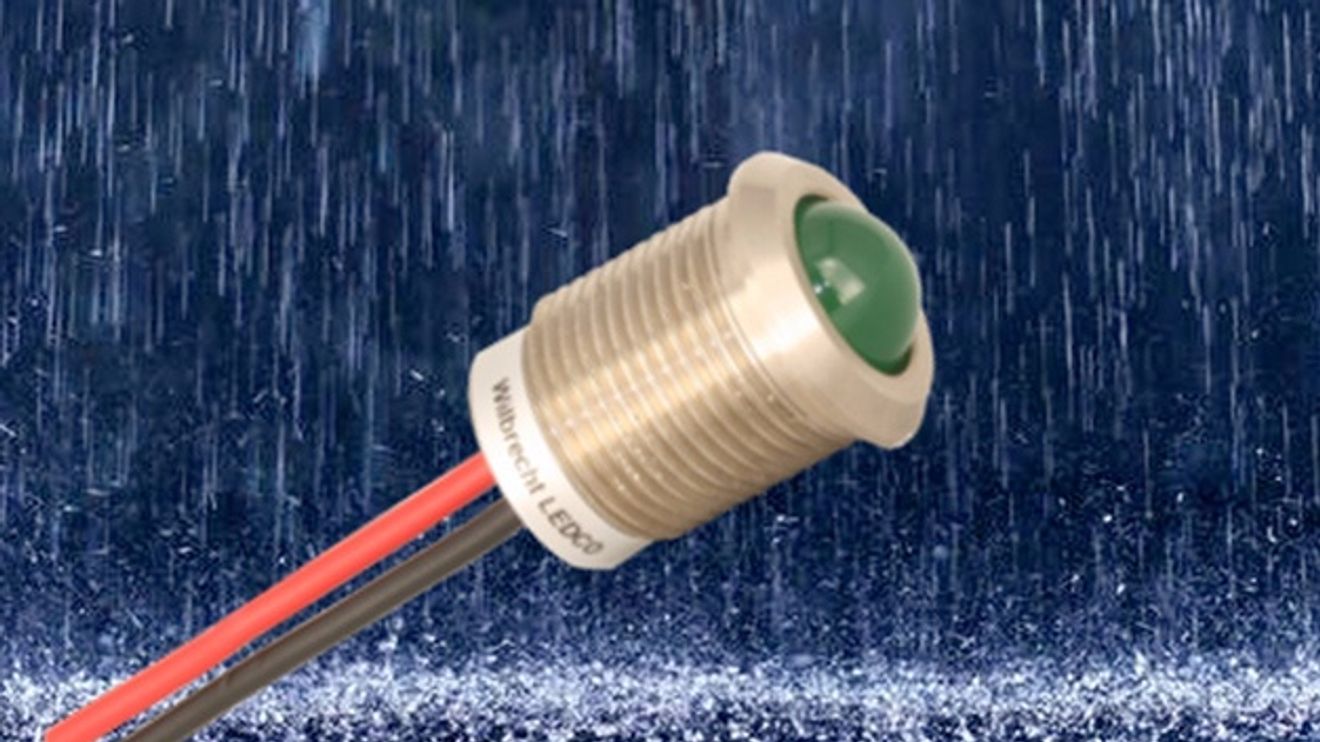

Large LED Indicator for Outdoor use, Microprecision

The CL series is 10 mm to fit 14-mm mounting holes. LEDs come in red, green, yellow, blue and bicolor options. Ready wired with internal resistors, these indicators can be configured for voltage up to 60 Vdc or 120/240 Vac. A robust M14 metal housing is designed for up to 0.394-inch (10-mm) panel thickness, and is resistant to shock and vibration. Fully filled with epoxy and fitted with a front sealing gasket, these indicators offer IP67-grade front and back sealing for outdoor use. Possible applications include agriculture and construction, forklifts, cranes and transportation, remote control of forestry or freight handling gear, industrial machinery, military and aircraft. Microprecision Electronics SA is a manufacturer of industrial microswitches and LED indicator lights, with production based in Switzerland and the USA.
