Sigmatek
Flexibility with macro technology
With the Sigmatek 'SCP 211' safety CPU, it is possible on the software side to create customized macro libraries and parameter lists for safety applications.
Safety development is carried out in Sigmatek 's 'Lasal SafetyDesigner' on the basis of certified function blocks based on PLCopen. The 'Lasal' safety macros can be structured in a multi-level hierarchy. Each macro is encapsulated in itself and can be tested independently as it has its own CRC test value. This reduces the effort required for overall tests to obtain certifications. Parameterization is carried out via a parameter list which, like the application itself, is protected. Password-protected mechanisms are used when transferring the lists for setting different equipment variants. By automating the test sequences via test programs that run in the sequence controller, the development effort for machines with many variants is reduced enormously. Together with the hot-plug capability, the parameterization of the safety controller during runtime enables flexible operation of modular machines and systems.
You might also be interested in
Electromechanics - The winners
Simplicity and flexibility won over the readers of Computer&Automation in the 'Electromechanics' category.

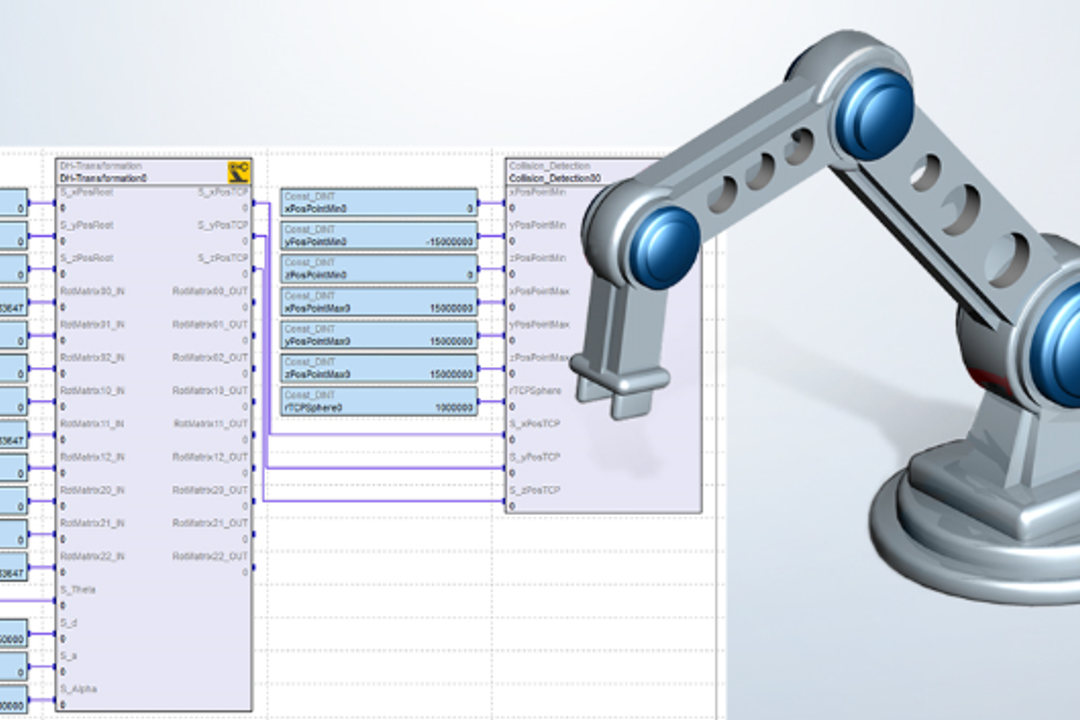

read more...Function modules for safe workspace monitoring
The 'Lasal SafetyDesigner' engineering tool from Sigmetek includes two new safety function blocks for workspace monitoring of serial kinematics, 'Denavit-Hartenberg (DH) Transformation' and 'Collision Detection'.

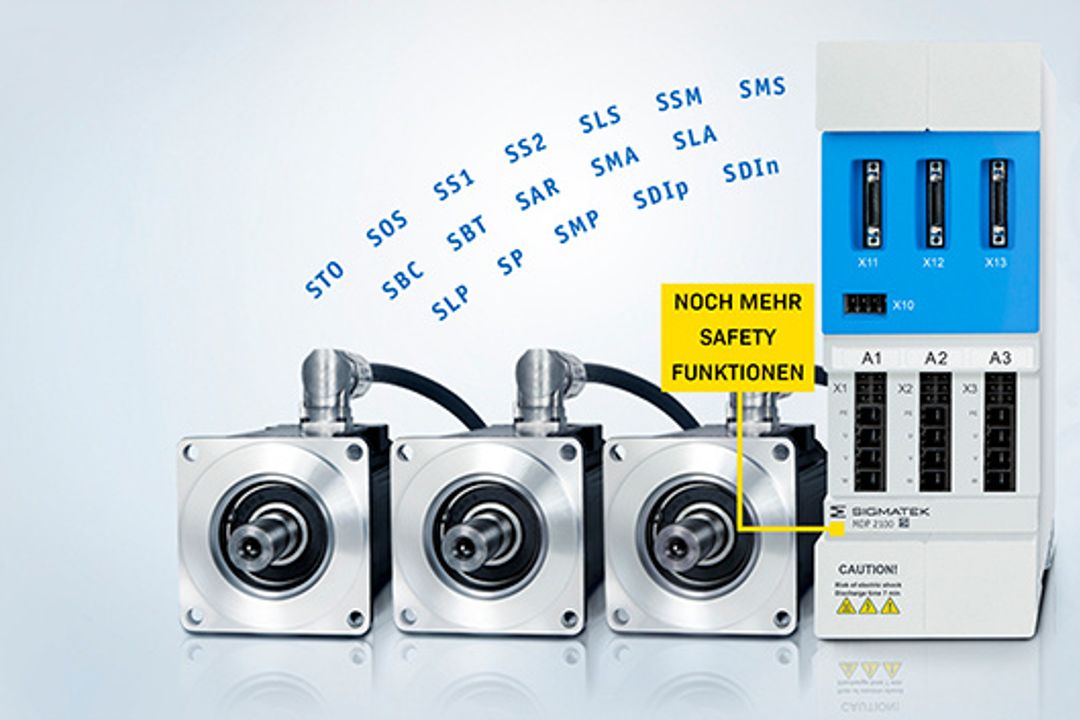

read more...New safety functions in the drive
Within the 'Dias-Drive 2000' series from Sigmatek for controlling servomotors, further safety functions are integrated in the MDD 2000 servodrives.
read more...Innovation partner for automation
Bihl+Wiedemann is a medium-sized, owner-managed company - founded in 1992 by Jochen Bihl and Bernhard Wiedemann in Mannheim. It develops and manufactures complete solutions for functional safety and data communication in machines and systems.
read more...Customized solutions for smart automation
In a world of increasing automation, functional safety is essential. Plant operators not only have to comply with legal requirements, but also ensure efficiency and availability. For more than 70 years, EUCHNER has been supplying customized...
read more...Manufacturing industry: top target of ransomware attacks
Ransomware tactics continue to evolve, targeting industries with low tolerance for downtime. Artic Wolf publishes figures on this.
read more...The top 10 articles in August 2024
The top 10 articles from Computer&Automation in August 2024. Readers were most interested in these reports.

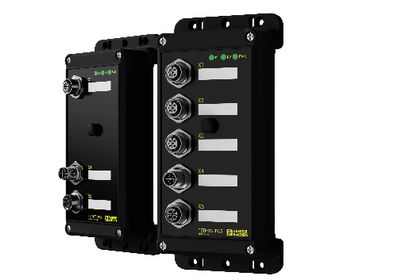

read more...Protected against water jets and dust
