Panel PCs
Without dirty edges

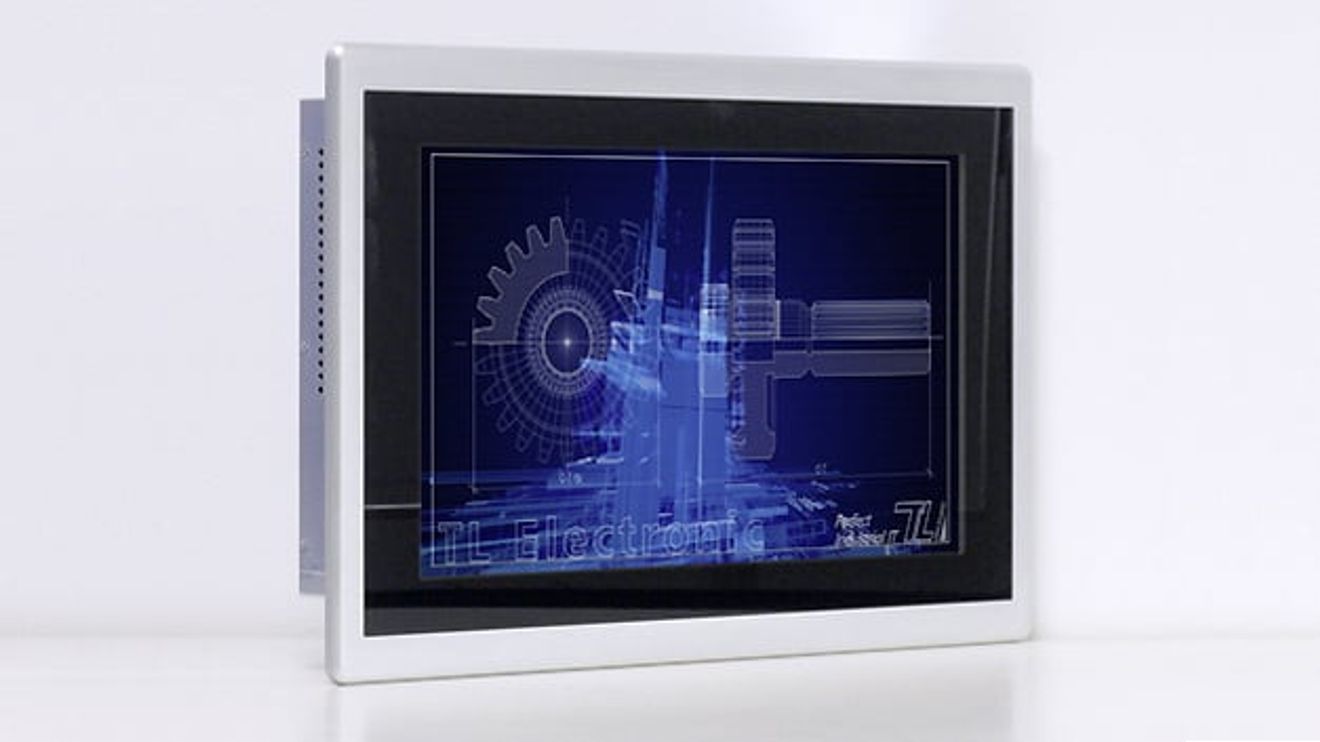

The panel PCs in the SlimLine IH32-MTU series from TL Electronic are available in the following diagonals: from 38.1 cm (15 inches) with a resolution of 1024 × 768 pixels in 4:3 format up to a diagonal of 54.6 cm (21.5 inches) with Full HD and 1920 × 1080 pixels in 16:9 format.
The system includes a fifth-generation Intel Core i5-5200U processor with a clock speed of 2 × 2.2 GHz. The fanless panel PC operates with a TDP of 15 W. Standard interfaces such as RS232/422/485, two USB 3.0, two RJ45 for Gigabit Ethernet and HDMI are available. The manufacturer equips the panels individually with various hard disks and Windows operating systems. The display and computer unit are installed in a sheet steel housing with a depth of just 67 to 80 mm. The 6 to 8 mm thick aluminum front panel offers IP65 protection and is flush with the display front. According to the manufacturer, there are also no dirty edges, making the devices easy to clean. Mounting is carried out on the Panelmount front via rear mounting brackets - IP65-compliant - or alternatively via the 75 or 100 mm VESA hole.
