Small, energy-efficient box PC
The uIBX-260-EHL mini box PC from Compmall is fanless, shock and vibration resistant, MIL-STD-810H compliant and WLAN 6E compatible.
With these features, the box PC from Compmall controls delivery robots, charging stations for electric vehicles, warehouse management systems and can also be used as an IoT gateway. Its computing power is provided by an Intel Celeron J6412, a four-core processor with a base frequency of 2 GHz and a turbo frequency of 2.6 GHz. The power dissipation is 10 W. The LPDDR4x memory is pre-installed with 8 Gbyte and can be expanded to 16 Gbyte. A 2.5-inch SATA III slot serves as data storage, and an NVMe SSD can be added via an M.2 M-Key slot. The integration of an eMMC is also possible as an option. Data is exchanged to the network either via the two 2.5 Gbit Ethernet ports or via WLAN6E. An RS-232/422/485 interface and four USB 3.2 Gen2 ports are used to connect external devices. The box PC is compatible with Windows 10/11 and Linux.
You might also be interested in
25 years of Computer&Automation - The e-paper
For 25 years, Computer&Automation has accompanied the growing influence of IT in automation technology. Ultimately, IT and automation can no longer be clearly separated. In this anniversary issue, you can read about the importance that...
read more...The e-paper of issue 06/23
How can digitalization and artificial intelligence help to make production processes sustainable? How can cobots and automated guided vehicles bring variety to everyday working life and how can they support people? Starting points in this issue.
read more...These are your "Products of the Year 2022"!
Here they are, the winners of the "Products of the Year 2022" readers' poll! Find out which products and solutions from 2021 impressed our readers!

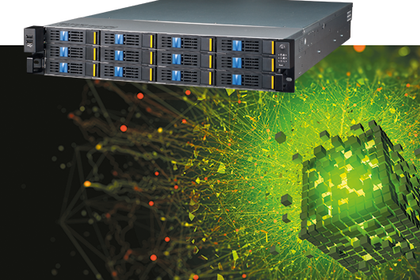

read more...Develop edge servers efficiently
The design of industrial servers is demanding. Industrial server manufacturers have therefore created an ecosystem for OEMs and system integrators that covers the range from robust standard configurations at board and system level through to...

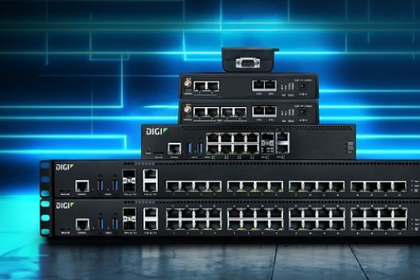

read more...Connectivity in mission-critical applications
