Acceed
For edge computing applications

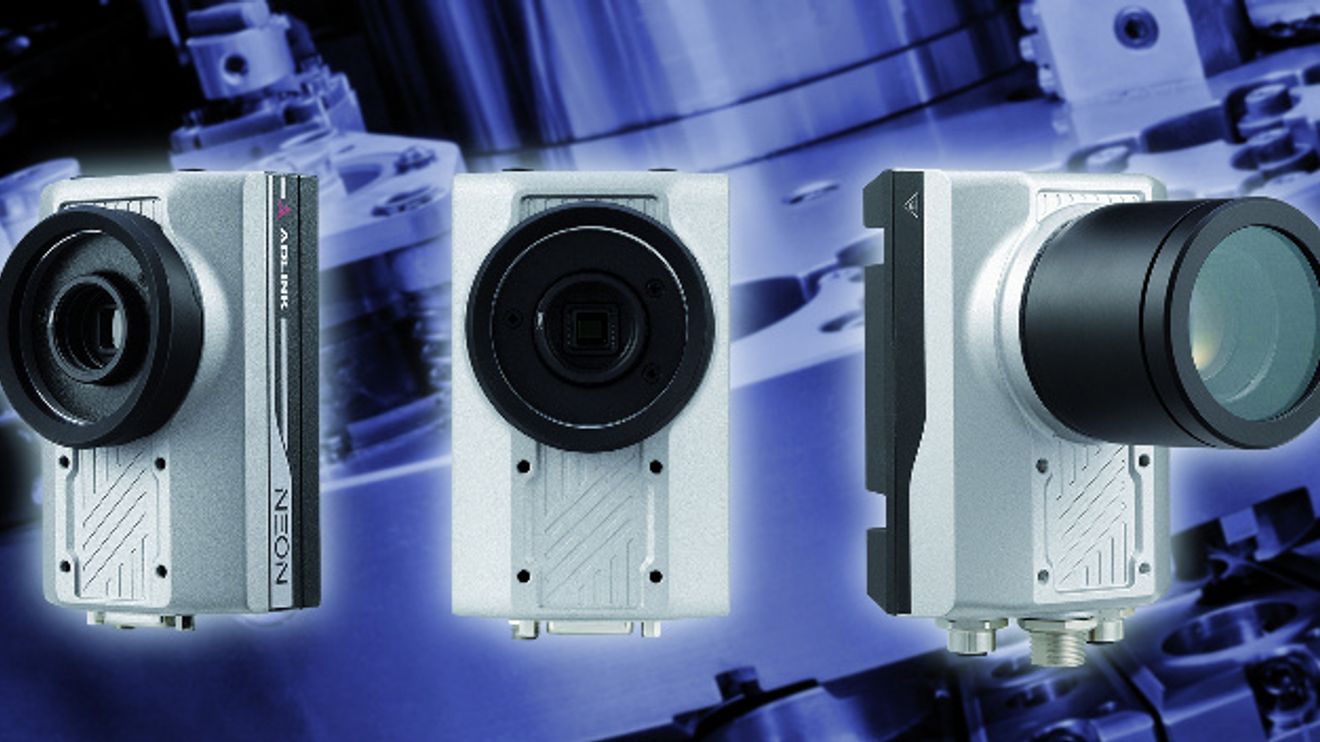

In 2020, Adlink sealed its collaboration with Nvidia as a Jetson Preferred Partner and has since developed various specialized controllers and systems for AI applications and machine learning. The all-in-one camera system 'Neon-2000-JT2' has also been added.
At its core, the camera system consists of a high-resolution smart camera and the Jetson TX2 module from Nvidia. According to the provider, the pre-installed software enables short development times and rapid integration into machine vision and AI applications. The compact camera system is available with various image sensors up to a resolution of 2592 x 1944 pixels (5 megapixels). The C-mount connection is suitable for all standard lenses. The compact housing, measuring 124 mm x 78 mm x 67 mm and weighing 700 g, has an IP67 protection rating.
Two optional pre-assembled kits facilitate the rapid deployment of the camera system. The Lite kit contains the camera itself, a type C USB hub/adapter and a type C USB cable. It is suitable for applications where no external I/O or device control is required. In addition to the components of the Lite Kit, the Starter Kit also includes a lens, an I/O expansion board and an I/O cable and is suitable for proof-of-concept applications, for example.
The Jetson-TX module responsible for the calculations offers maximum computing power and energy efficiency thanks to the 64-bit ARM Cortex-A57 quad-core CPU and the integrated 256-CUDA core graphics processor (GPU) with Pascal architecture. In combination with 8 GB LPDDR4 memory, more than one tera FLOP of computing power can be achieved with a power consumption of less than 7.5 W. The camera system is thus prepared for the high requirements formulated for defect inspection or object classification in production environments, for example.
