Bicker Electronics
With 10-year LiFePO4 battery storage

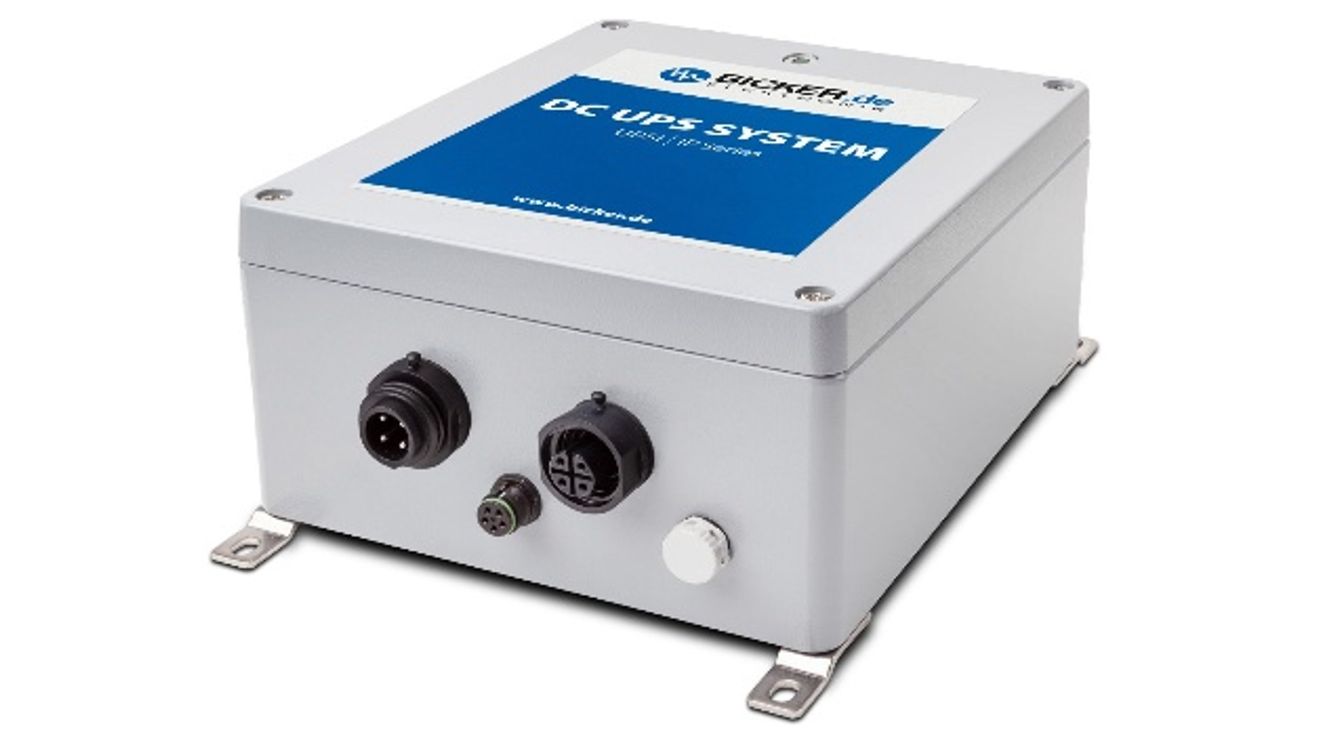

The UPSI-2406IP-26UW DC emergency power supply from Bicker Elektronik guarantees an uninterruptible 24 V (DC) power supply in harsh industrial and mobile applications.
The power supply for sensitive and process-relevant control systems, embedded IPCs, gateways, motor drives, actuators, sensors and safety technology is integrated into an aluminum housing with IP65/IP67 protection. In addition to power failure and flicker, it also protects against voltage fluctuations. On the input side, a DC/DC converter with a wide-range input of 8 to 36 V(DC) ensures flexible use. An additional EMC filter module is connected upstream of the converter to suppress electromagnetic interference from the mains.
In normal operation, the DC UPS system from Bicker provides the nominal voltage at the output, charges the integrated LiFePO4 battery pack and monitors the voltage thresholds at the input. If the voltage falls below the defined voltage threshold, the system switches to UPS backup mode within fractions of a second.
