Servo motor for long travel distances

Oriental Motor

Inka Krischke, 14.05.2024, 08:48

Servo motor for long travel distances

The servomotors of the 'AZX' series from Oriental Motor achieve high torques in the upper speed range and are therefore particularly suitable for applications with long travel distances.

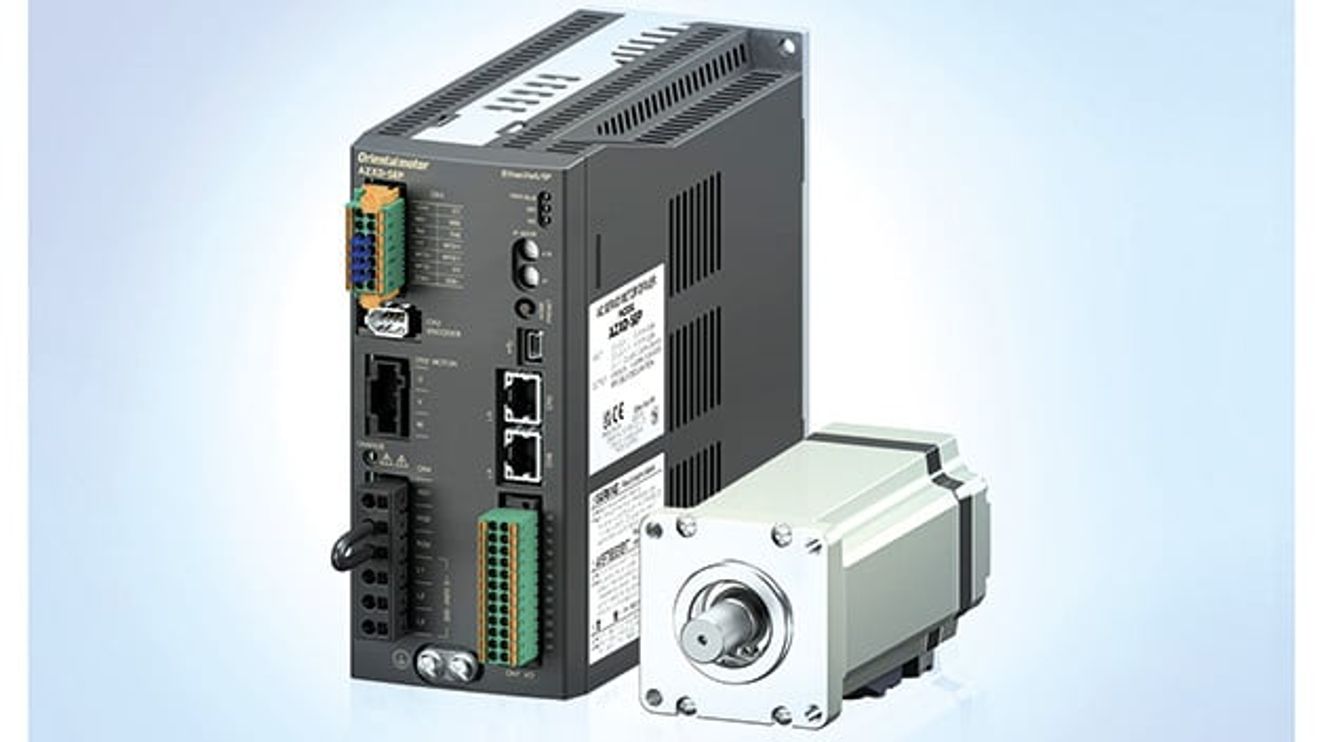

Oriental motor, servomotors from the 'AZX' series

The integrated battery-free absolute sensor ensures that the position information is always available. The servomotors in the Oriental Motor series have been specially developed for positioning and continuous operation. The absolute system of the integrated mechanical encoder enables fast travel to the home position and therefore shorter machine cycles. The absolute sensor also improves the accuracy of referencing. The mechanical multiturn absolute encoder detects the absolute position of the drive up to ±900 revolutions (1800 revolutions) of the motor shaft from the reference point position. It retains the recorded position values even when switched off. The servomotor is supplied with a driver with fieldbus (Ethercat or Ethernet/IP). It can be connected to the higher-level control system via a single cable.

Back to topic page

You might also be interested in

Oriental Motor

Stepper motors with Neugart gearbox

The stepper motors of the AZ series from Oriental Motor are now available with PLE planetary gearboxes from Neugart.

Oriental Motor

3-finger gripper moves complex objects

The electric 2-finger grippers of the 'EH series' from Oriental Motor for the safe handling of sensitive workpieces are now available in a version with three fingers. This model enables the gripping of complex, round and cylindrical workpieces.

In focus: Drive technology

The e-paper of issue 11/23

The industry is on the move: At SPS, corporations, SMEs and start-ups will be showcasing the solutions they offer for the truly digital transformation of manufacturing technology. Meinrad Happacher explains what this means and why the mix of...

Getriebebau Nord at the SPS 2024

Frequency inverter in booksize format

With the 'Nordac Pro SK 500P', Nord Drivesystems has a control cabinet inverter that is available in variants in a power range from 0.25 to 22 kW, which can be assigned to different requirements in different industries.

Ziehl-Abegg

Chief Production Officer becomes CEO

Joachim Ley is the new CEO of Ziehl-Abegg, an electric motor and fan manufacturer. He assumes responsibility for the entire management board.

Sieve & Meyer

Drive controller with high-current variant

As a high-current variant, the 'SD4B' drive controller from Sieb & Meyer extends the range of possible applications: as a servo amplifier for operating rotary and linear low-voltage servo motors or as a frequency inverter for high-speed...

CG Drives & Automation in Hanover

Flexible solutions for sustainable energy

CG Drives & Automation, supplier of inverter solutions, announces modular Emotron frequency inverters for renewable energies.

Sieve & Meyer

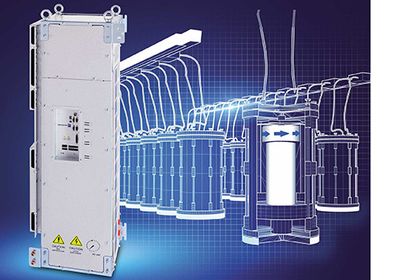

Multilevel frequency inverter
