Support arm panel expands portfolio

Sigmatek

Inka Krischke, 30.07.2024, 08:31

Support arm panel expands portfolio

The 'TT 1564' multi-touch operating panel for mounting arm installation extends the Sigmatek range.

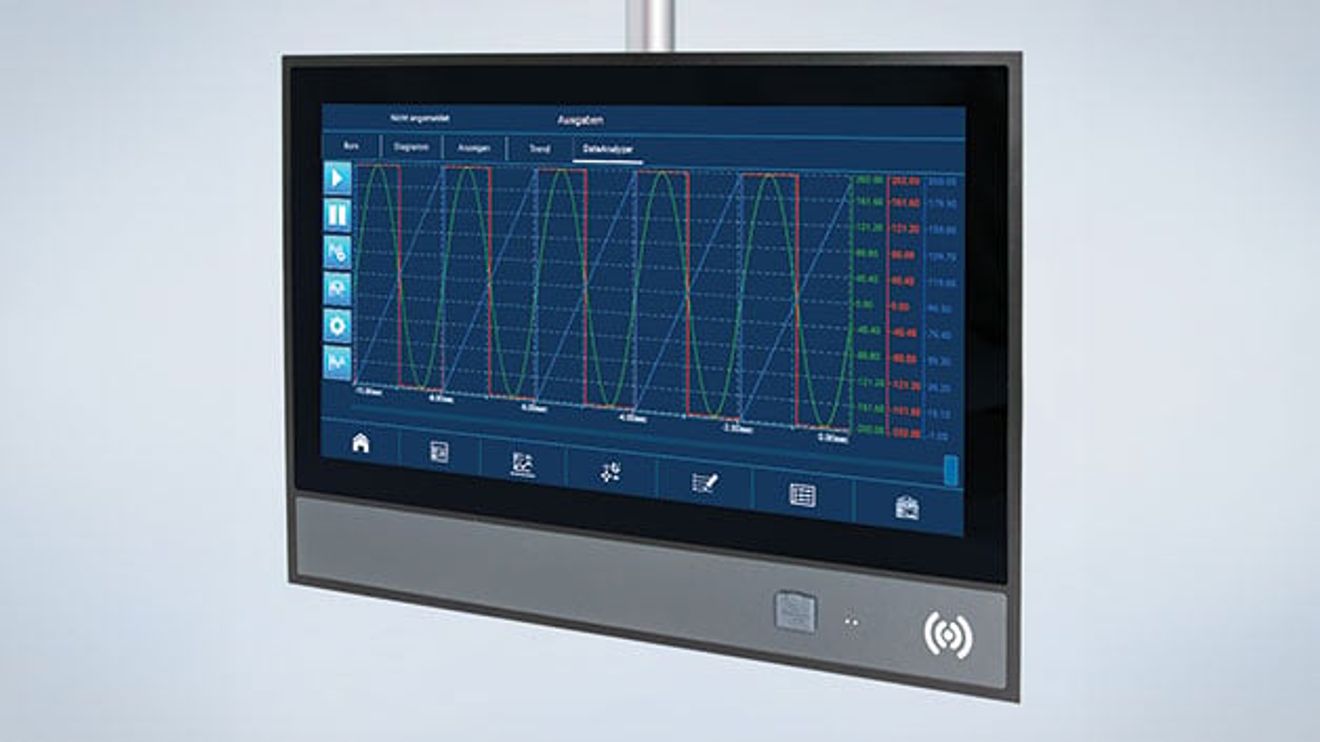

Sigmatek, multi-touch control panel 'TT 1564'

The widescreen HMI is equipped with a quad-core Edge3 Technology processor and a 15.6-inch TFT color display in Full HD (1920 × 1080 pixels). There is 2 Gbyte DDR4 RAM and 8 Gbyte eMMC memory available. An RFID reader and a USB port are located directly on the front. In addition, six individual operating elements can be attached to the front. Standard interfaces are available for system connection: 2× Ethernet 100 Mbit, 3× USB host 2.0, type A (1× on the front), 1× USB 2.0 type Mini-B OTG and 1× microSD card holder (SD 3.0). The fanless panel from Sigmatek supports OPC UA communication and has two freely programmable status LEDs on the front. It is equipped for VESA100 mounting arm installation. The projected capacitive touchscreen supports intuitive operability. Machines and systems can be operated using multi-finger gestures such as zooming, rotating or swiping. The object-oriented engineering tool 'Lasal' can be used to create (web) visualizations.
