Mass
Large display included

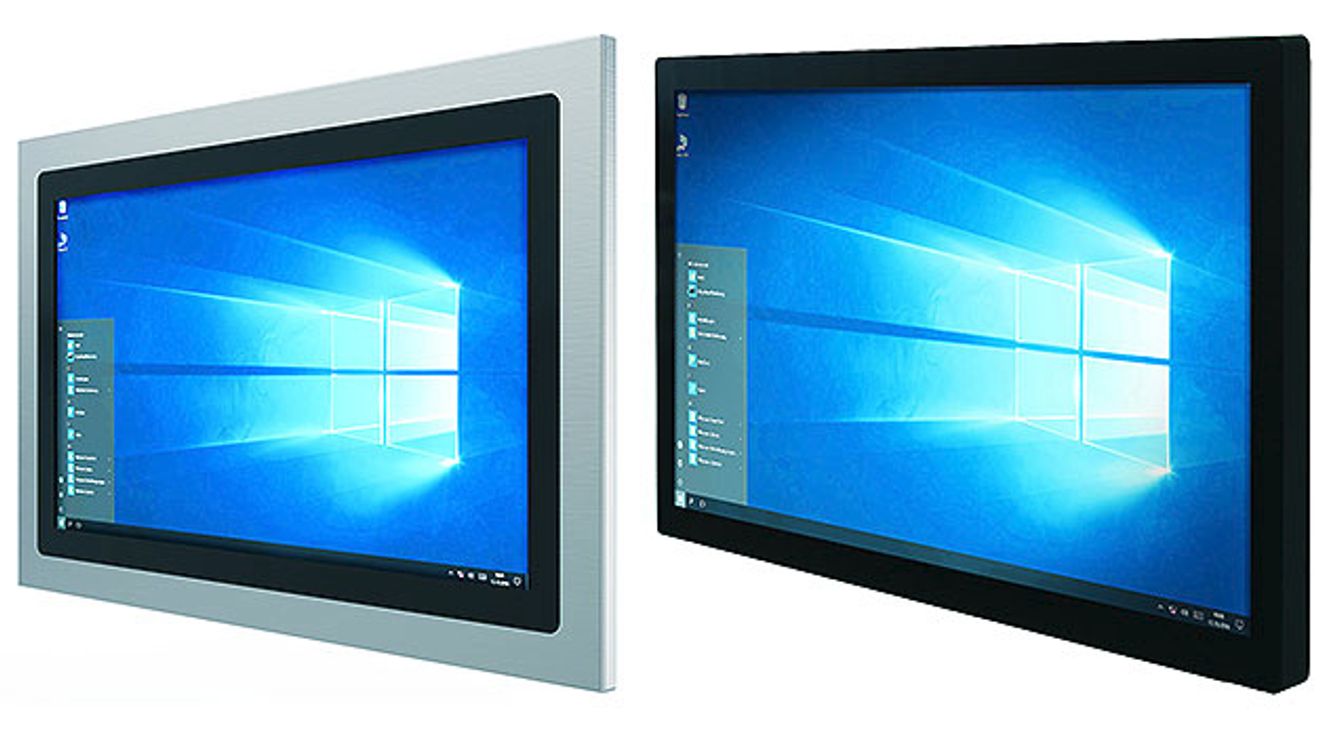

Mass offers industrial computers with large displays, which can be arranged in front panels as PPCs (panel PCs) or free-standing as SACs (stand-alone computers).
The PPC and SAC from Mass are available with an LCD (resolution full HD 1920x1080p WUXGA) and displays with 21, 32 or 43 inches, while the 55 or 65-inch LCDs have a resolution of 4k 3840x2160p. All devices have a scratch-resistant and anti-glare glass front panel that extends from edge to edge of the LCD. The narrow edge is backprinted in black. As an option, a multi-touch screen (PCAP) or a non-contact IR touch can be used between the front panel and the display, eliminating the need for a keypad. Behind the display is an industrial-grade computer that can be equipped with Intel i3/i5/i7 and N3160 processors.
Depending on the CPU, the RAM can be equipped with up to 16 Gbyte and the mass storage with mSATA up to 512 Gbyte. A hard disk from 500 Gbyte is also available. RS232, USB3.0 and USB2.0 interfaces are available, as well as 2xGBit LAN (RJ45), audio line IN/OUT and mains 90-264V(AC).
You might also be interested in

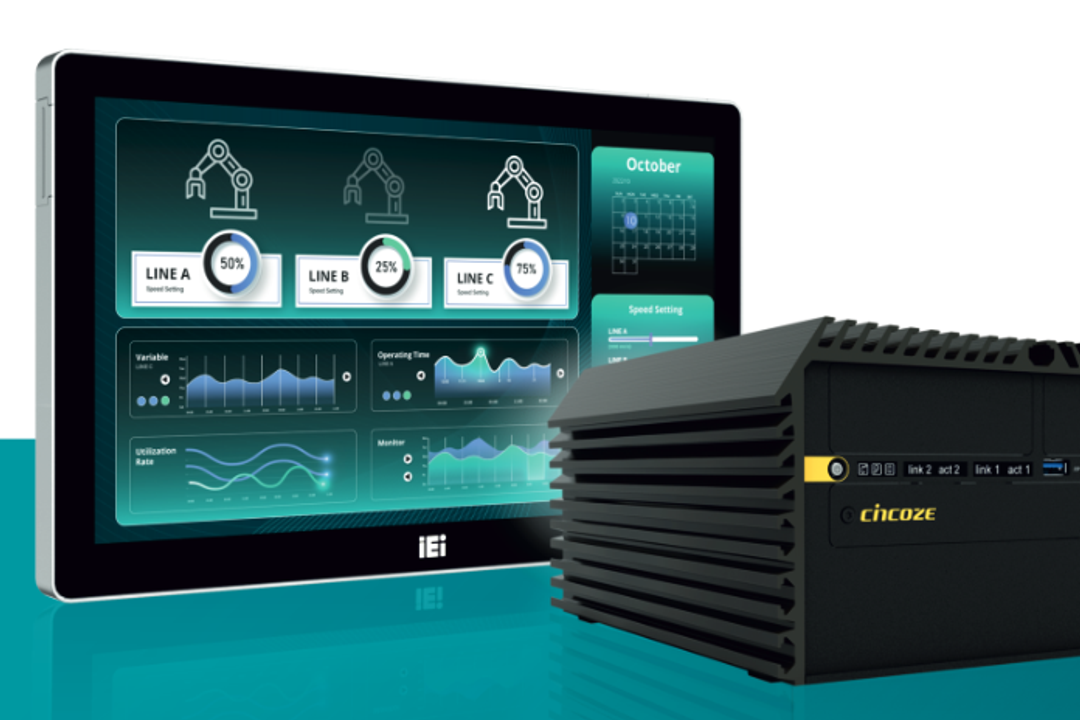

Sponsored content: Product news from the industry
Every month, we present the latest product announcements from well-known automation manufacturers.

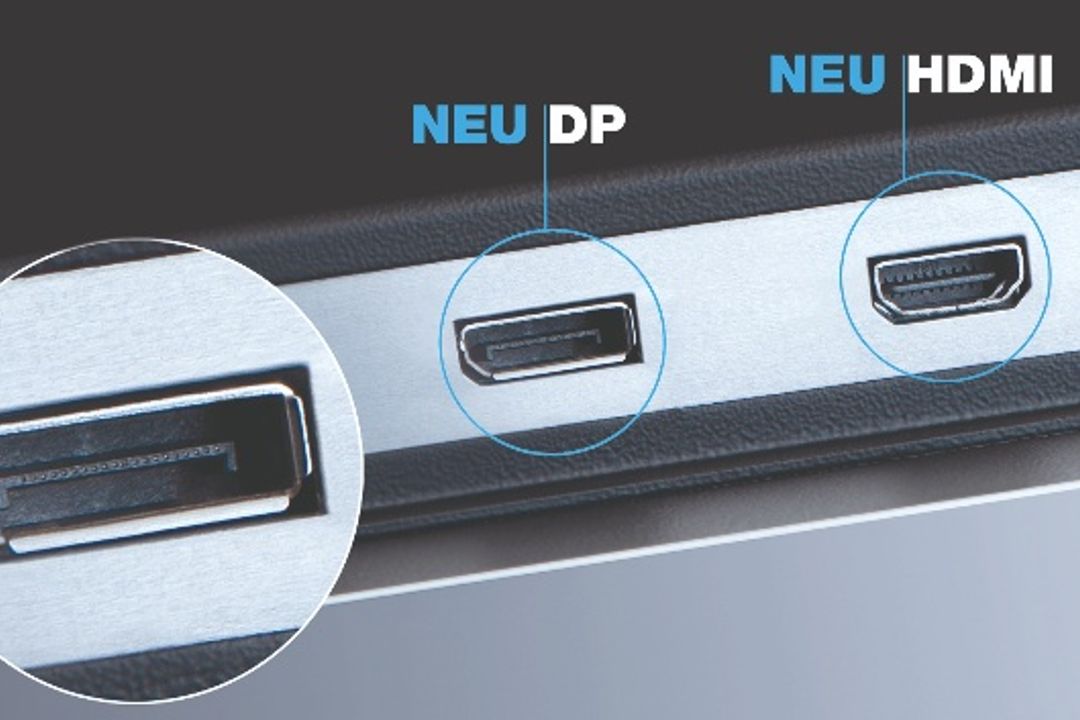

read more...HDMI and DisplayPort instead of VGA analog and DVI digital
SR System Elektronik expands its product range with the Flat /9 series.
read more...TFT displays almost at OLED level
Data Modul took a new approach to controlling the LED backlight of a TFT. The result is a TFT series with Full Array Local Dimming (FALD) technology.
read more...Products for edge and fog computing
What is currently happening in the fields of edge and fog computing? Computer&AUTOMATION shows current products in a series of pictures.
read more...Arriving in the PLC world
The Raspberry Pi is being used more and more in industrial electronics applications and has now arrived in the world of PLC systems: Mass presents the new RPi07-Xtend development as a first expansion stage.
read more...News from the industrial computer sector
What's new on the market for industrial PCs and operating systems? Our picture gallery shows you the latest products from these areas.
read more...Raspberry Pi - fit for automation
The Raspberry Pi computer is enjoying great popularity - and not just in the hobbyist scene. That's why more and more automation companies are turning to the open source computer, as Computer&AUTOMATION shows in the following series of images.

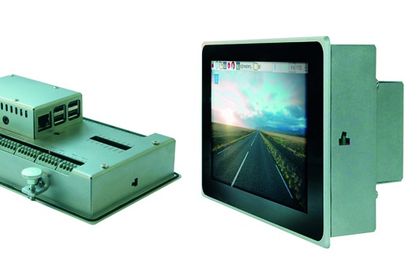

read more...PLC solution with touch display
