Touch panels
IP64 protection on the front

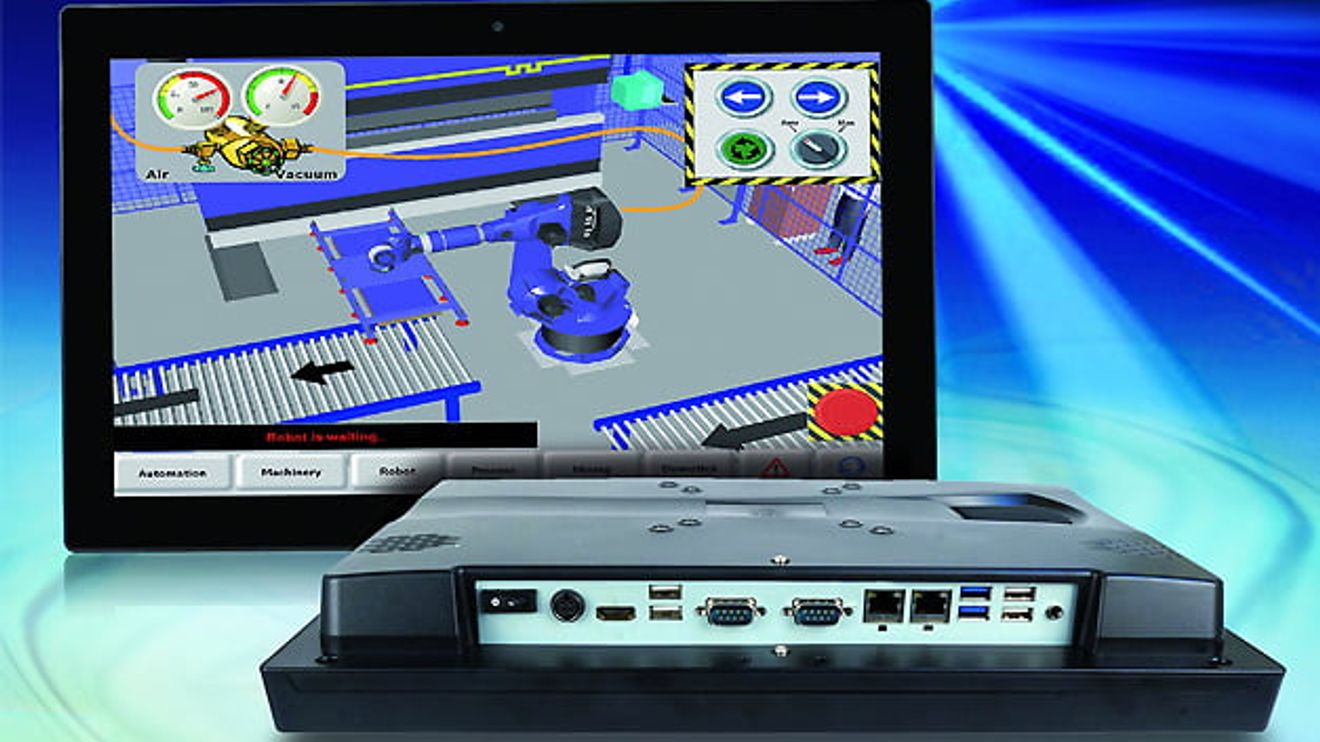

The AFL3-W15B-H81 model from Comp-Mall has a screen diagonal of 15.6 inches with an installation depth of 32 mm and is IP64-protected on the front. It is equipped with PCAP or resistive touch and offers HD resolution (1366×768) and a contrast of 700:1.
The touch panel PC is supplied with the Intel Core i7/i5/i3 processor series (TDP 35W), a maximum of 16 GB DDR3L SDRAM, an mSATA slot and a 2.5-inch SATA 3Gbb/s HDD. The flat display with a scratch-resistant 6H surface should be easy to clean. Operating systems such as Win 8/8E or Win 7/7E are supported. The dual-band WiFi IEEE 802.11a/b/g/n/ac with 2.4 and 5 GHz interface as well as Bluetooth v4.0 should enable fast and reliable data transfer rates for wireless communication. The range of interfaces includes: USB 3.0, USB 2.0, COM, 2x GbE LAN, camera, HDMI and audio with built-in speakers. All interfaces are led out to the bottom. Optional 1D/2D barcode scanners and RFID readers are also available. The operating temperature range extends from -20 to +60 °C with a controlled fan. Thanks to the VESA standard, it can be mounted on the wall, on the arm, in the control cabinet or in the panel.
