For mounting on a standard mounting rail

Display devices

Quelle: ACS-Control-System | Lukas Dehling, 11.01.2016, 09:06

For mounting on a standard mounting rail

The digital display unit DPA is designed for front panel mounting or on-site installation or for mounting on a standard mounting rail.

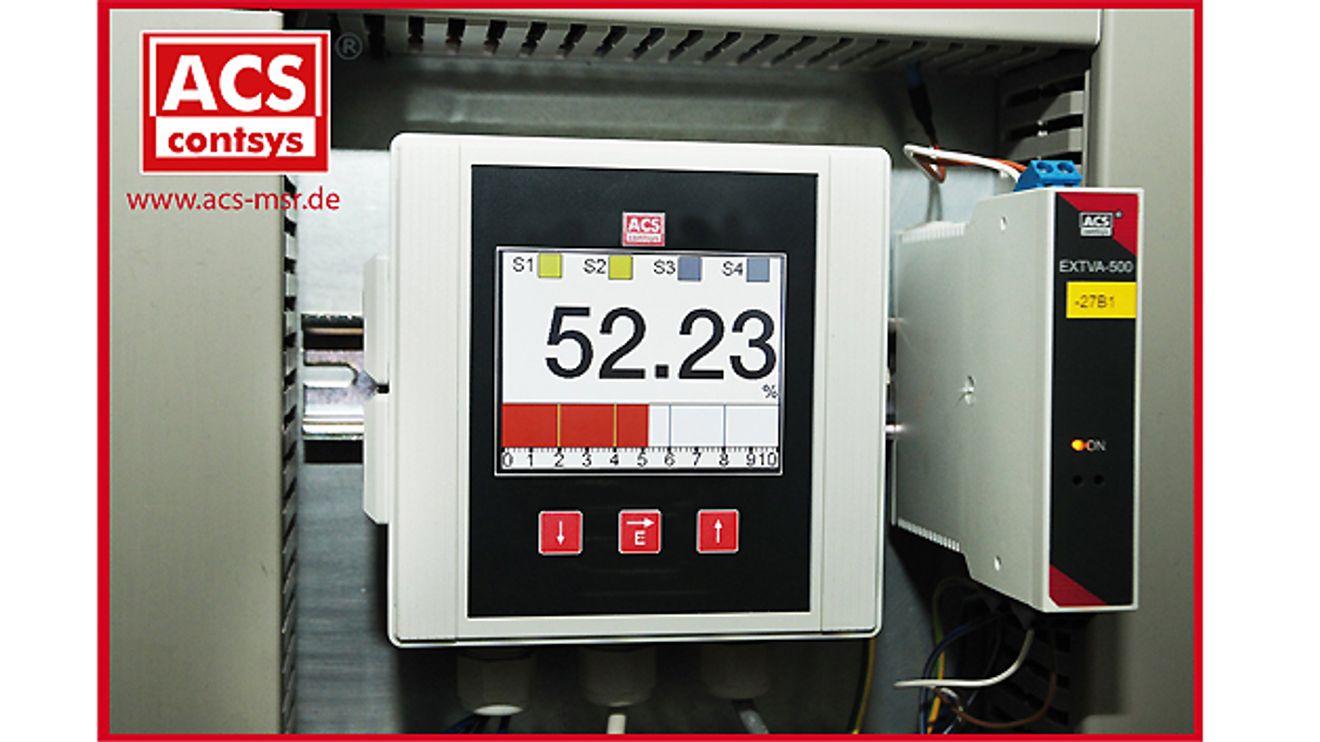

Digital display unit DPA from ACS-Control-System

The applied electrical standard signal in the range of 0 to 10 V or 0 to 20 mA is detected by the evaluation circuit, adapted according to the programmed settings and transmitted electrically isolated to the output signal 0 to 10 V or 0/4 to 20 mA. Thanks to the possibility of entering 40 interpolation points, non-linear input signals, for example from horizontal cylindrical containers, can also be linearized for further processing. Up to four freely programmable relay switching points can be assigned to the input signal. The process indicator is not only suitable for level measurements but also for recording and measuring flow rates and flows. The mathematical formulas for this are already stored in the device. The TFT color display ensures that the measured values are displayed and easy to read. Intelligent data management is made possible with the DPA digital display device by the Bluetooth interface and a built-in data logger function with time stamp for recording up to 500,000 measured values.

You might also be interested in

Product presentations

News from measurement technology

What innovations are there for industrial users on the measurement technology market? Computer&AUTOMATION has summarized a selection of new products in a series of pictures

Acquisition

Physik Instrumente takes over motion control manufacturer

Physik Instrumente has acquired 80% of ACS Motion Control. The Israeli company specializes in the development and manufacture of high-end motion controllers and amplifiers for multi-axis drive systems.

Pressure sensors

Measuring range from 1 to 600 bar

The Precont PU4SE from ACS-Control-System is an electronic, programmable 2-wire pressure sensor for monitoring relative pressures in gases, vapors, liquids and dusts.

SPS IPC Drives 2016

New products in Nuremberg

What new products did the exhibitors present at SPS IPC Drives 2016? Computer&AUTOMATION provides an overview of what was on show in the Nuremberg exhibition halls this year.

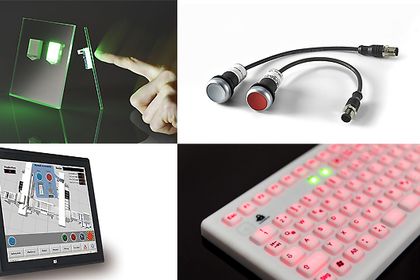

Product picture gallery
