3D pin inspection made easy

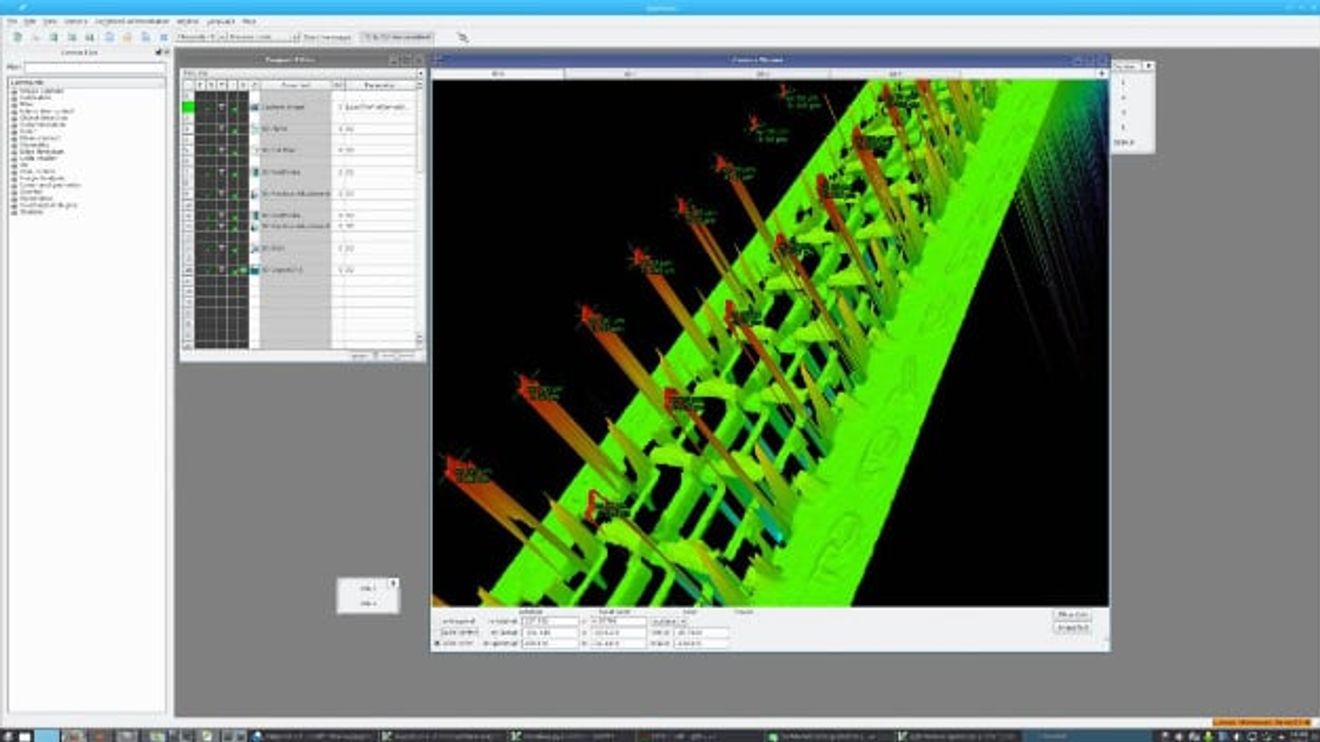

With the EyeVision 3D software from EVT, pins of any shape can be measured and checked for their correct position and wobble circle.
The wobble circle inspection carried out by the 3D software checks the deflection of the pins on a lateral plane by means of orthogonal viewing. In addition, 'EyeVision 3D' from EVT also measures the set depth of the pins. The 3D inspection makes it possible to measure the height of the pin tip on the connector. Constant error detection and error measurement guarantee consistent quality.
The PinInspector 2.0 enables a specially optimized process for pin inspection. It offers specially adapted 'EyeVision 3D' software with a ready-made inspection program kit, the EyeScan AT 3D laser triangulation sensor, a compact industrial PC and an optional linear axis. The PinInspector can be used to measure the following connector/pin characteristics: Wobble circle, measurement of the setting depth, measurement of the pins and faults on the connector.
