Protection for single-phase frequency inverters

Residual current circuit breaker:

Quelle: Eaton Electric | Inka Krischke, 07.07.2017, 11:00

Protection for single-phase frequency inverters

Eaton has added a type F residual current circuit-breaker to its 'xEffect' family of switchgear for industrial applications. This provides machine and system manufacturers with a solution for personal and system protection for applications with single-phase frequency converters.

Type F residual current circuit-breaker from Eaton Electric

The type F circuit breaker protects against sinusoidal AC residual currents and pulsating DC residual currents such as type A; it also detects residual currents consisting of a frequency mixture of up to 1 kHz in accordance with IEC 62423. Such mixed frequencies typically occur at the output of a single-phase frequency converter. The type F residual current circuit-breakers can be loaded with smooth DC residual currents of up to 10 mA, have short-time delayed tripping and offer high resistance to current surges. There is a choice of two- and four-pole device variants for rated currents from 25 to 100 A. With three versions for different residual currents (30 mA, 100 mA, 300 mA), they are suitable for both personal and fault protection to prevent the risk of fire. Users can also connect the residual current circuit-breaker and all other RCD, MCB and RCD/LCB combination switches in the xEffect series directly to the company's intelligent wiring and communication system 'SmartWire-DT' using an SWD connection module.

Back to topic page

You might also be interested in

To KPS Captial Partners

Siemens sells Innomotics for 3.5 billion euros

Siemens sells Innomotics to KPS Capital Partners for 3.5 billion euros. Preparations for an IPO of the manufacturer of electric motors and large drives were announced in November.

Products of the year 2024

Drive technology - The winners

In the 'Drive Technology' category, a product with a very top target group came out on top.

Elmo Motion Control

Ronen Boneh is the new CEO

Ronen Boneh took over the management of Elmo Motion Control on September 1, 2023. He succeeds Haim Monhait, who has retired.

75 years Groschopp

Driving automation forward

Groschopp has experienced a lot in its 75-year history. In this anniversary interview, shareholder Wolfgang Pflug talks about dark times, the opportunities offered by automation and why Germany is losing its competitive edge.

Motor and large drive systems

Innomotics launches as a Siemens subsidiary

Siemens is bundling its range of motor and large drive systems under the name Innomotics. The company was launched in Germany on July 1, 2023 as a wholly owned Siemens subsidiary.

ebm-Papst

Solutions for automation

ebm-Papst presents solutions for automation in drive and ventilation technology.

Doepke

Predictive maintenance in electrical systems

Together with Twingz, Doepke presented e.Guard at SPS 2022, a modular system consisting of smart hardware and flexible software components for intelligent residual current monitoring of electrical systems.

KBK Drive Technology

Protect machines from overload damage

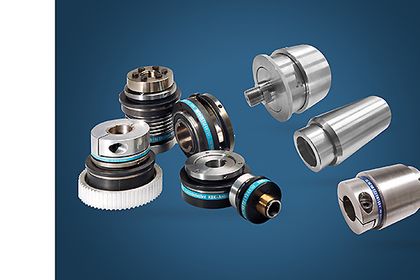

KBK overload clutches mechanically disconnect both parts of the driveline if the torque is exceeded. This prevents or at least significantly reduces overloads and the resulting damage to the drive.
