Dunkermotors
Wheel drive for industrial trucks

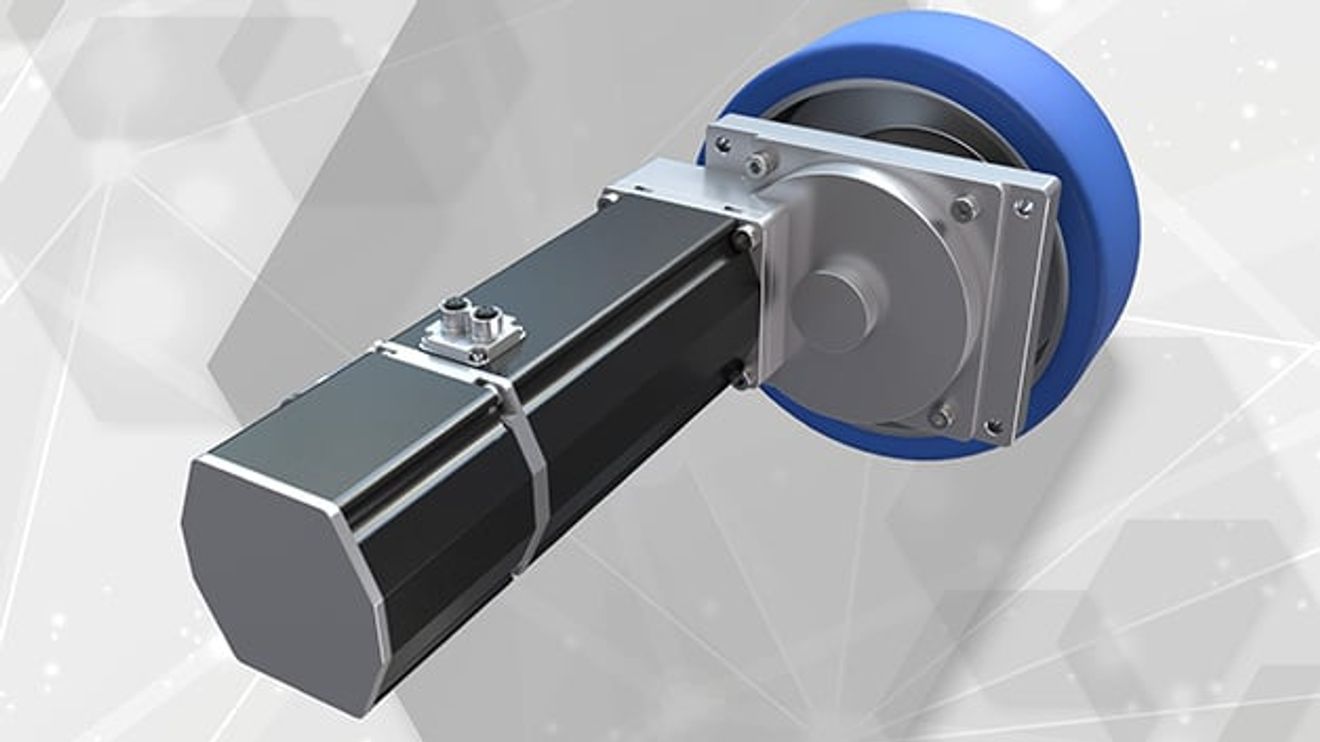

With the 'NG 1000 WO' hub gearbox, Dunkermotoren, a brand of Ametek, presents a gearbox for driverless transport systems such as AGVs and AMRs.
The abbreviation WO stands for 'with offset' and describes the characteristic offset of the gearbox in relation to the attached motor. The design of the gearbox from Dunkermotoren is matched to the BG 95 brushless BLDC motor. The combination of motor and gearbox requires an overall height of only 95 mm and enables vehicles with a particularly low underride height and a minimum width of 600 mm. Thanks to the axle offset, the drives can be arranged side by side when integrated into the vehicle. This increases the load capacity and acceleration capacity of the vehicle and ensures a narrow chassis. The transmission can carry up to 1000 kg per wheel and transmits acceleration torques of up to 160 Nm. The power of the BG 95x80 can therefore be fully utilized and the gearbox is no longer the limiting component.
