All-in-one protection for electrical systems
The 'Acti9 AFDD' protective device from Schneider Electric offers safety for buildings of all sizes by combining the protective functions of AFDD (fire circuit breaker), residual current and miniature circuit breakers and mains voltage monitoring in a single device.

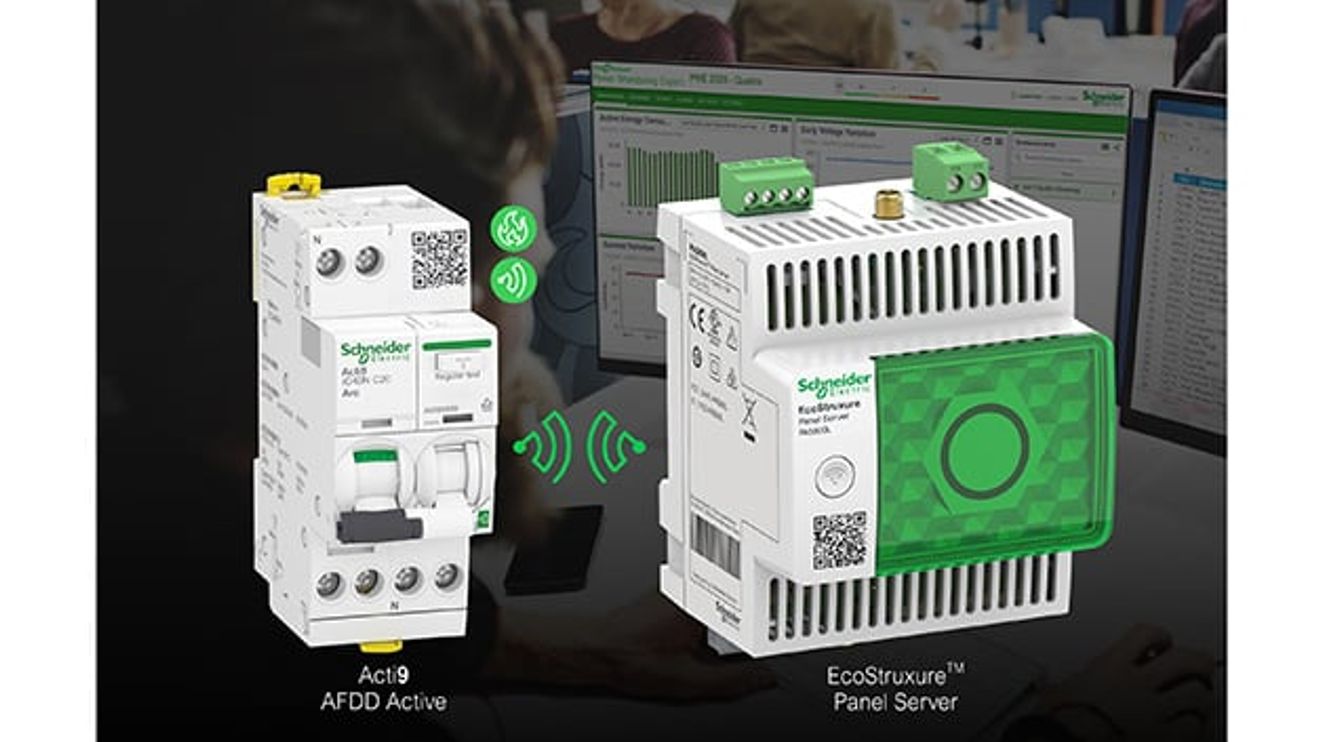

By combining the diverse safety functions of RCDs, MCBs and AFDDs in a single device, the 'Acti9 AFDD' and 'Acti9 AFDD Active' circuit breakers from Schneider Electric provide reliable protection against electrical overloads, short circuits, residual currents, various fault arcs and transient mains overvoltages. They therefore guarantee personal, device and fire protection in residential and functional buildings and at the same time safely protect circuits. The protective devices also offer numerous additional functions: The integrated status display, for example, shows the tripping of the switch and the current switching position (open/closed) at all times, while the diagnostic function provides an indication of the cause of the tripping - for example due to overload, short circuit, residual current fault, serial or parallel arcing faults. Adjustable threshold values can also be set for pre-alarms in the event of overload and residual currents. The measurement function can be used to record voltage, current, residual current, active power, energy, operating hours counter and the internal device temperature. The logging function makes it possible, for example, to permanently record the number and cause of tripping or the exact date on which the test button was pressed.
Thanks to the integrated connectivity, Acti9 AFDD Active can also act as part of an active safety system in future. This will then not only act reactively, but also allow proactive intervention and continuous remote condition monitoring of the electrical system. This is because the system actively warns of potential malfunctions, electrical faults and hazards via wireless communication with the 'EcoStruxure' panel server. It sends SMS or email notifications and alarm messages in the event of anomalies such as overload, residual current or mains overvoltage, and provides meaningful diagnoses, analyses and recommendations for action.
You might also be interested in
25 years of Computer&Automation - The e-paper
For 25 years, Computer&Automation has accompanied the growing influence of IT in automation technology. Ultimately, IT and automation can no longer be clearly separated. In this anniversary issue, you can read about the importance that...
read more...The e-paper for the special issue
Safety & Security 2023
The European Union's new Machinery Regulation was recently published. From this date, machine manufacturers and operators have 42 months to comply with the new requirements for machines and systems. This and more news on the topic in the interactive...
read more...Safety controller functionally expanded
Schneider Electric has expanded the functionality of the Modicon MCM series of safety controllers. In particular, the processing capacity of the function blocks in the CPU has been significantly increased.
read more...Plant honored as Sustainability Lighthouse
Schneider Electric's plant in Hyderabad, India - one of India's most important technology locations - has been recognized as a Sustainability Lighthouse by the Davos World Economic Forum. This is the third award of this kind for Schneider Electric.
read more..."The skills shortage is definitely real"
Digitalization in companies is bringing about change in terms of work organization and design. But what about the coveted skilled workers? Barbara Frei from Schneider Electric assesses the situation.
read more...25 years of Computer&Automation - The e-paper
For 25 years, Computer&Automation has accompanied the growing influence of IT in automation technology. Ultimately, IT and automation can no longer be clearly separated. In this anniversary issue, you can read about the importance that...
read more...The top articles in February 2023
In addition to annual trends and new developments, the topic of security and how to maintain it played a key role in our most-read articles of the past month. Find out which negative headlines also made it into the ranking here.
read more...Multi Carrier for compact machine designs

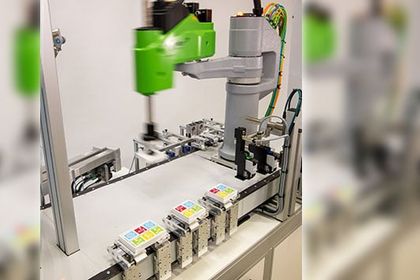

Schneider Electric has developed Lexium MC12, a multi-carrier for transporting, positioning and grouping objects. With its modular installation method, the solution enables the implementation of new machine designs.
