Displays
Vibration resistance of 6.8 G
MSC Technologies has expanded its product range with three TFT LC modules from Mitsubishi. The industrial displays have a vibration resistance of 6.8 G and are designed for operation in a temperature range from -40 °C to +85 °C.
At the same time, all models offer a brightness of 1500 cd/m² and a contrast ratio of 700:1 for readability even in bright environments. The service life of the LED backlight is specified as 100,000 hours. The TFT Dìsplay AT070MJ11 in TN technology has a WVGA resolution with 800 x 480 pixels and a screen diameter of 17.78 cm (7.0 inches). The viewing angle is 140 degrees vertically and 160 degrees horizontally. The panel has an LVDS interface. The active area is 152.4 x 91.44 mm, the dimensions of the LC module are 169.8 x 109.7 x 8.9 mm. The 26.42 cm (10.4 inch) TFT display AT104SN11 offers an SVGA resolution of 800 x 600 pixels. The viewing angle is specified as 160 degrees (symmetrical). This LC module is also equipped with an LVDS 6/8 bit interface. The display area is 211.2 x 158.4 mm. The AT104XH11 LC module with XGA resolution (1024 x 768) also has a diameter of 26.42 cm (10.4 inches). The display surface of all three Mitsubishi products has an anti-glare film and a 3H hard coating.
You might also be interested in

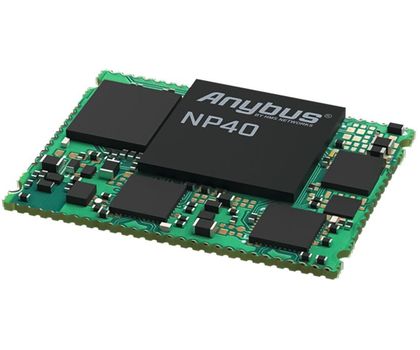

HMS at the embedded world 2025
Ready-to-install embedded communication interfaces
'Anybus CompactCom' is a product family of ready-to-install embedded communication interfaces for connecting automation devices to all major industrial networks from HMS.
read more...Kontron at the embedded world 2025
Based on the Raspberry Pi 5
Kontron launches the 'BL Pi-Tron CM5'. The industrial board product was developed to meet the demand for standard products and an open software environment in the embedded industry and is based on the current Compute Module 5 from Raspberry Pi.
read more...Customized Single Board Computer
Helbling has developed a flexible embedded vision platform based on an ARM processor that can be used as a reference design for the development of customized single board computers (SBC).
read more...Double security through redundancy
The 'Safety Key' from Hy-Line allows the simple integration of safety-relevant switches in glass displays.
read more...New products at embedded world 2019
At the end of February, the Nuremberg exhibition halls made way for everything to do with embedded systems technology. Computer&AUTOMATION presents a selection of new products that were on show at the embedded world 2019 stands.
read more...Entry into the IoT
A starter kit from Inonet, together with a web application, is designed to pave the way for users to enter the future of the Internet of Things (IoT). The target group are users who want to monitor their environment automatically and initiate...
read more...Developing autonomous systems
MathWorks introduces the Sensor Fusion and Tracking Toolbox, available with the 2018b release. The new toolbox provides engineers with algorithms and tools to determine and maintain position, orientation and situational awareness.

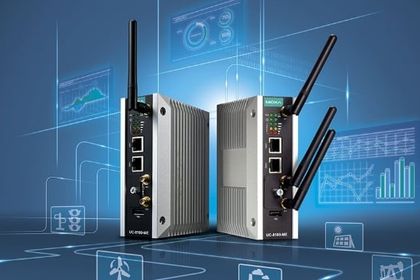

read more...Available with Azure IoT Edge
