Panel PCs
Optionally with remote maintenance

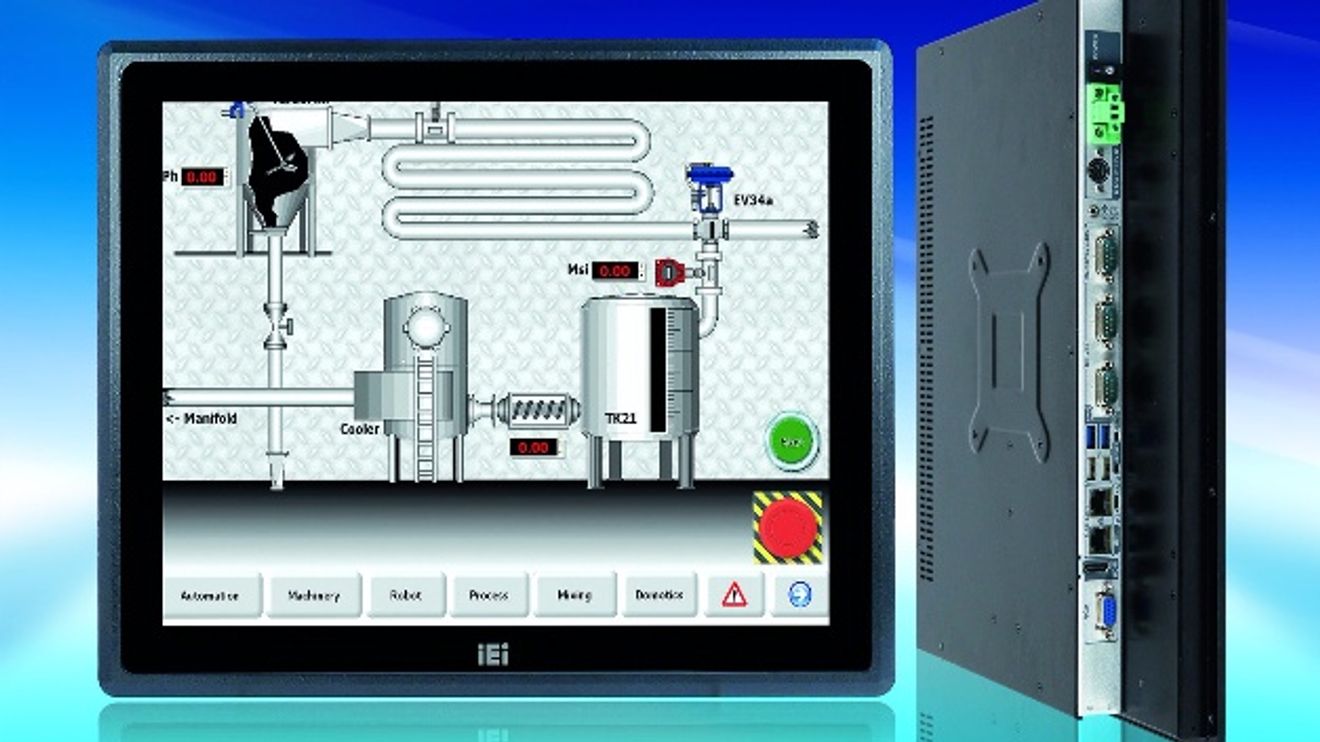

Comp-Mall is expanding its panel PC range with the PPC-F19B-BT multi-touch panel PC with a 19-inch (5:4) screen diagonal. The model is available with either resistive single-touch or projected capacitive multi-touch.
The computing unit is based on the Intel Celeron J1900 quad-core SoC and 8 GByte DDR3L SO-DIMM. The display resolution is 1280 x 1024 pixels with a contrast of 1000:1. With its metal housing, the model is designed for use in harsh industrial environments and has an IP65 rating on the front. The industry-optimized inputs/outputs include 2 x Ethernet channels, SATA3.0 for 2.5-inch HDD/SSD storage media and mSATA, VGA, HDMI, USB 3.0, USB 2.0 and COM. The Panel PC has two PCIe mini card slots for expansions. One slot supports mSATA, so that an additional storage medium can be used alongside the 2.5-inch SATA drive.
A power supply of 9V to 36 VDC is required, a mains adapter is included. The temperature range extends from minus 10°C to +50°C. An optional dual-band WiFi interface and Bluetooth v4.0 can be integrated for wireless communication. A special feature is the optional iRIS-2400 module, which is used to maintain and manage the computer remotely.
