Spectra
Embedded system with Tiger Lake processor

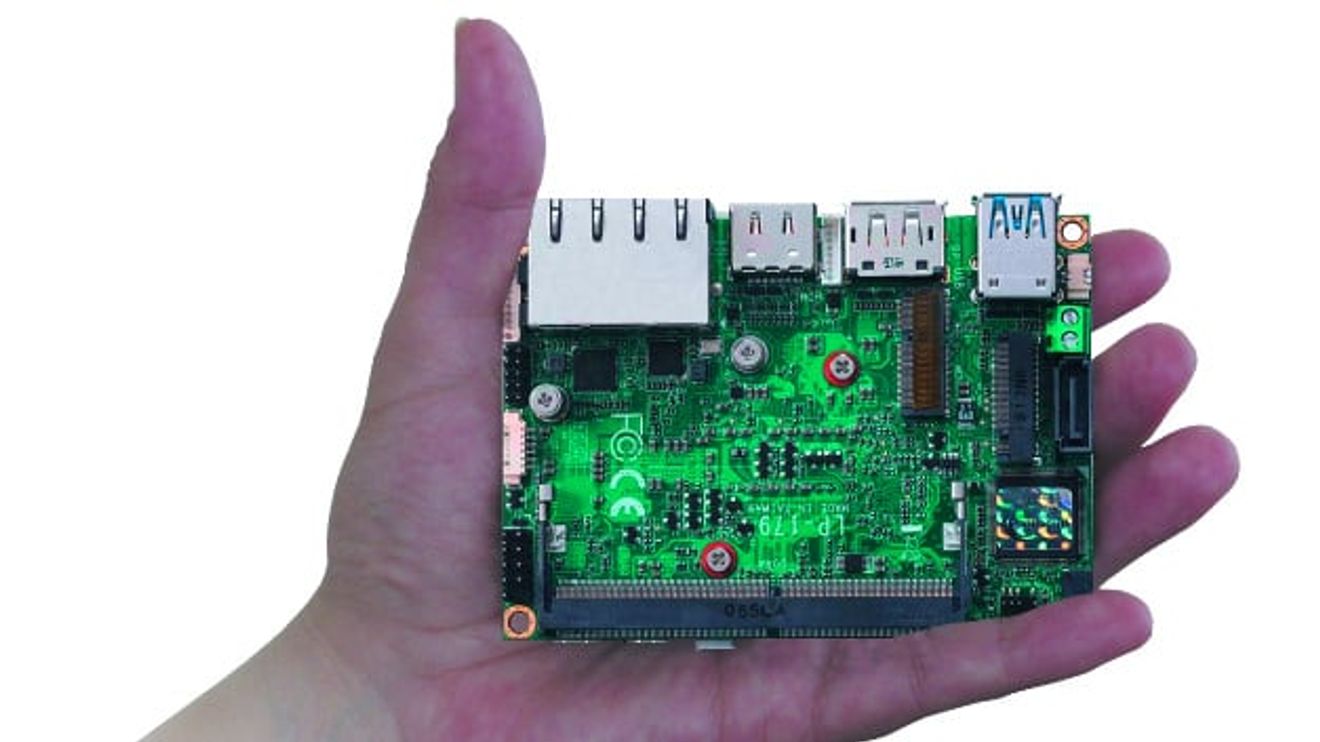

Spectra launches the LP-1797 industrial Pico-ITX board with compact dimensions of 100 mm x 72 mm
It is based on the Intel Core i7-1185G7E processor with four cores and a clock frequency of 1.8 to 4.4 GHz at a TDP of 15 W. The RAM can be expanded up to 32 GB via a DDR4-3200 SO-DIMM slot. The CPU was installed on the back of the board, from where it can be cooled directly via a heat sink or via the housing. Image output in 4K quality is ensured by an Intel Xe GPU equipped with a total of 96 processing units.
Spectra has integrated an HDMI and DisplayPort for connecting displays. A VGA port is implemented via an internal pin header. Network connectivity is provided by an Intel I219-LM with 1 Gbit/s and an Intel I225-LM with 2.5 Gbit/s. Extensions are implemented with the help of an M.2 2280 slot for NVMe SSDs with PCIe 4.0 and an M.2 2230 slot for Wi-Fi or Bluetooth modules. Two USB 3.2, two USB 2.0 and one SATA3 as well as two RS-232 interfaces are also available.
