Oriental Motor
For predictive maintenance

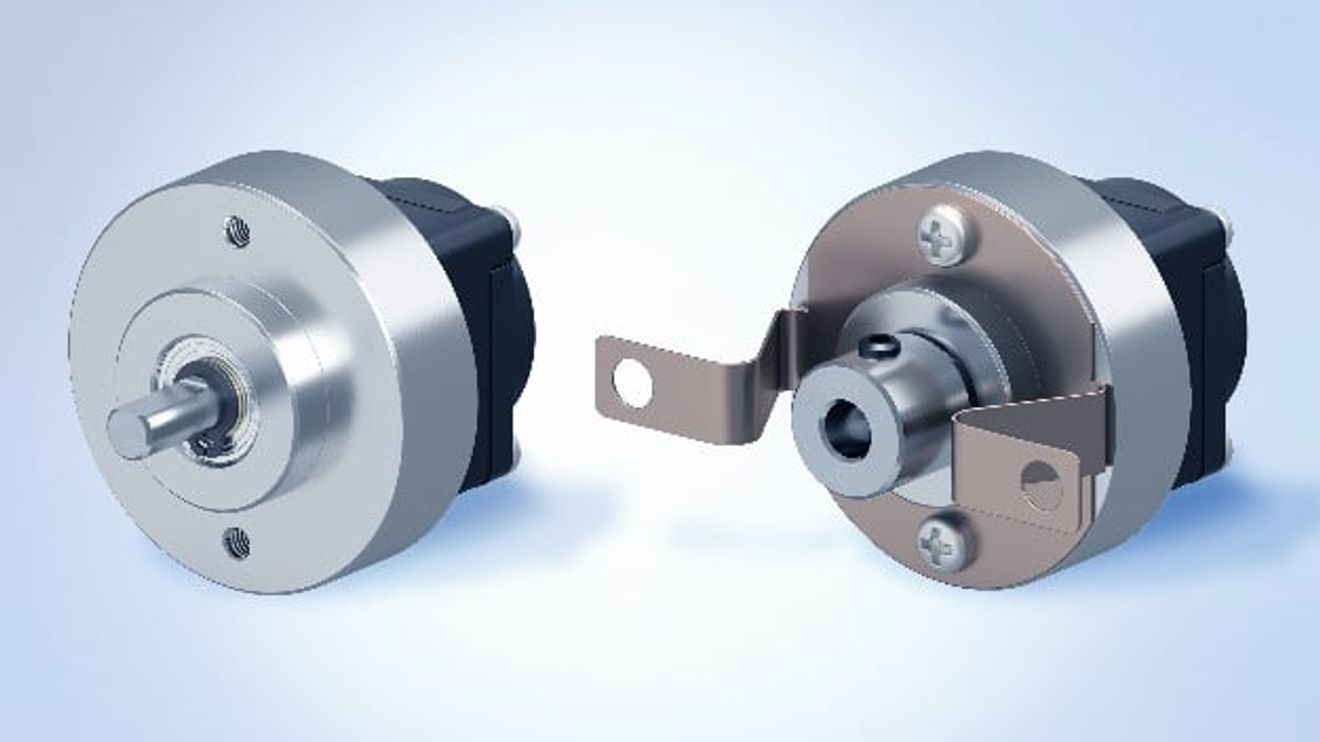

According to the manufacturer, the new incremental encoder from Oriental Motor is particularly suitable for use in predictive maintenance thanks to its precision in measuring speed, position and direction of rotation.
Resolutions of 1000 or 2000 pulses per revolution are available. The encoders from Oriental Motor measure with an angular accuracy of ±0.36 °. With an outer diameter of just 30 mm and an installation depth of only 22 mm, they are suitable for applications where space is limited. The incremental encoder is available with a round shaft and a hollow shaft. All versions have a voltage output and a line driver output. The line driver output is particularly suitable for applications with longer signal lines, as it amplifies the output signal. In combination with a line receiver, better protection against electromagnetic interference can also be achieved. Three output signals (A, B, Z) are provided. The encoder operates at a maximum frequency of 200 kHz (line driver) or 100 kHz (voltage).
You might also be interested in
The e-paper for the special issue
Sensor & Vision 2024
In the age of Industry 4.0, nobody talks about 'stupid sensors' anymore. Rather, it is undisputed that the measured values collected by modern sensors are real treasures. Cleverly evaluated, they help with analysis and are indispensable for machine...
read more...Screen Edition 2024
Welcome to the first issue of the 'Screen Edition', which opens up a completely new way of reading and informing yourself: With the Screen Edition, we offer you a dynamic and always up-to-date source of information with its finger on the pulse.
read more...Oriental Motor at the SPS 2023

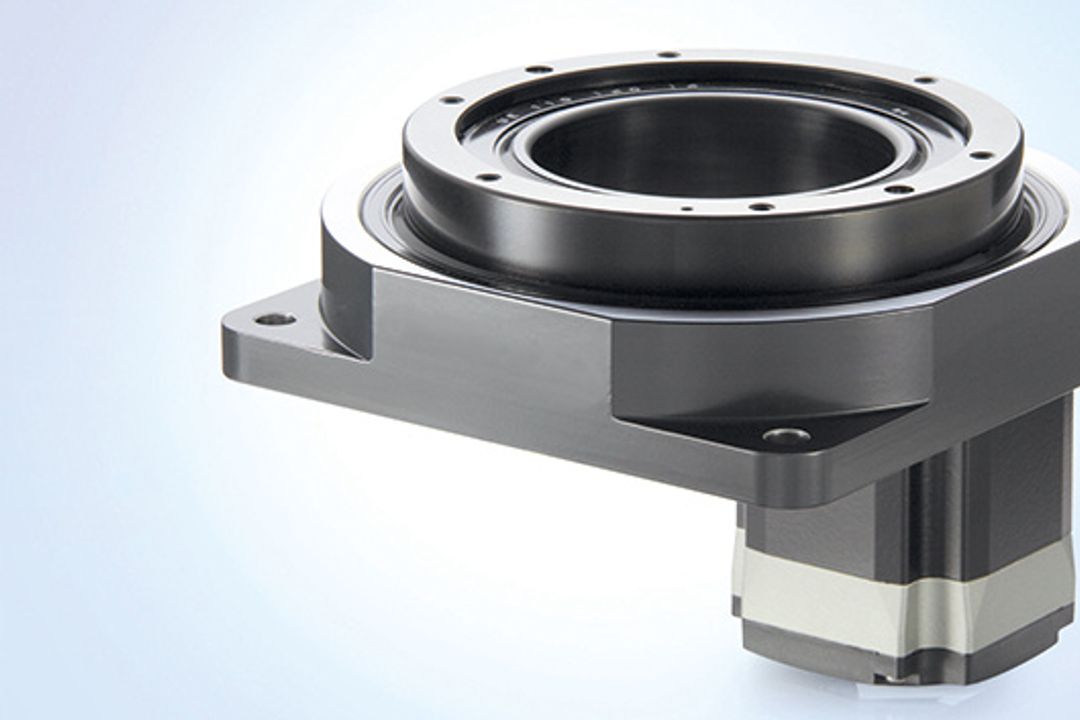

Rotary tables with hollow shaft
The rotating actuators of the 'DGII' series from Oriental Motor combine a hollow shaft rotary table with a stepper motor.
read more...Dual leadership in Shanghai
Stefan Becker has been appointed Managing Director of Eckelmann Automation Technology in Shanghai and will manage the subsidiary together with Zhongwei Huang.
read more...Ergonomic workstation solutions with linear technology & co
RK Rose+Krieger is presenting components and system solutions from the fields of linear technology, profile technology, connection technology and module technology at Motek. One current example is the 'RK Easymount' assembly table.
read more...Cartesian robot for loads up to 10 kg
The Cartesian robot 'H-Bot' from Rollon offers a design with a single belt concept and double motor on the X-axis, which, according to the manufacturer, enables coordinated and precise movements in a compact design.

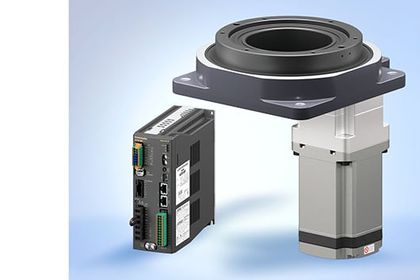

read more...Hollow shaft rotary table for high torques
Hollow shaft rotary tables from Oriental Motor's 'DGII' series are now also available in combination with the servomotors from the 'AZX' series for high torques in the upper speed range.

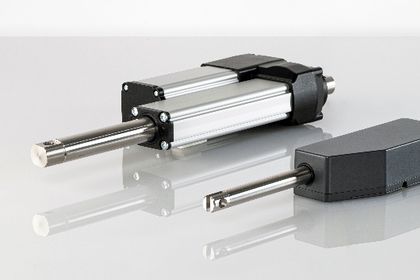

read more...Robust electric cylinders for indoor and outdoor use
