Current productsNews about operating and monitoring
What is the optimum operating unit for industrial users? What is happening on the market? Computer&AUTOMATION presents a selection of new products from the operating & monitoring sector as a series of pictures.

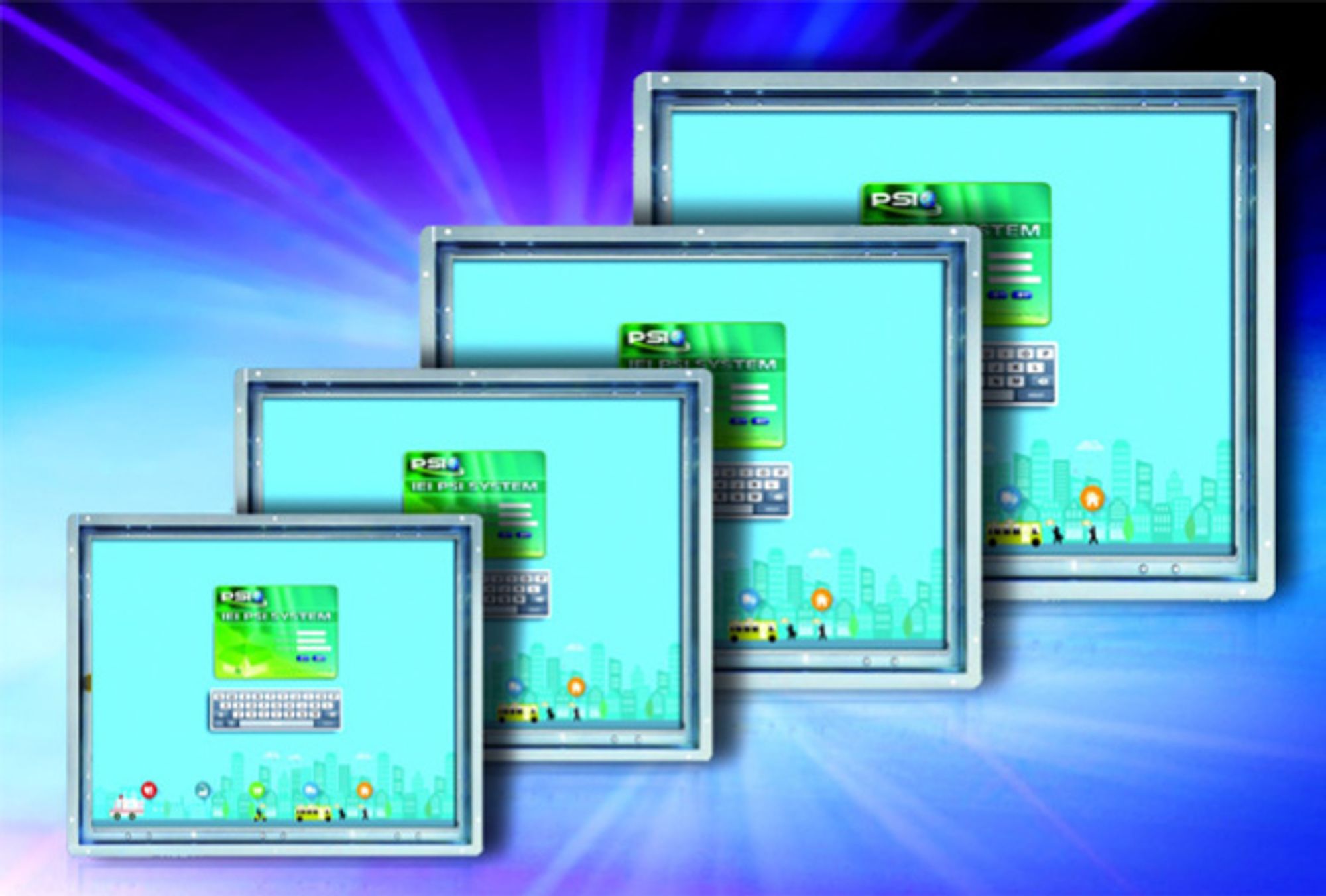

The new industrial open-frame monitors in the LCD KIT F series from Comp-Mall have a device depth of 40 to 50 mm - depending on the monitor size. The available display sizes are 12.1 inches as well as 15, 17 and 19 inches, without touchscreen or with resistive or P-CAP. Optical/air bonding is used for multi-touch P-CAP and the special flat resistive variant. The open-frame monitors offer a 4:3 aspect ratio, resolutions of 1024×768 (XGA) and 1280×1024 (SXGA), a brightness of 350 to 600 cd/m2, a contrast of 700:1 to 1000:1 and a high MTBF time of 50,000 hours. They each have an analog VGA and a DVI-D input and USB/RS232 interfaces are available for the touchscreens. The OSD membrane keypad is located on the rear to make the front panel clear and uncluttered. OSD software is designed to simplify the external settings of the monitors. With an operating temperature range of -20 to +60 °C and a power supply of 12 V(DC) or an optional wide-range power supply of 9 to 36 V(DC), the devices are designed for use in industry. Thanks to the VESA standard and various installation kits, they can be mounted on the wall, in a control cabinet or in a panel.
