Power supply units
Efficiency of up to 91 %

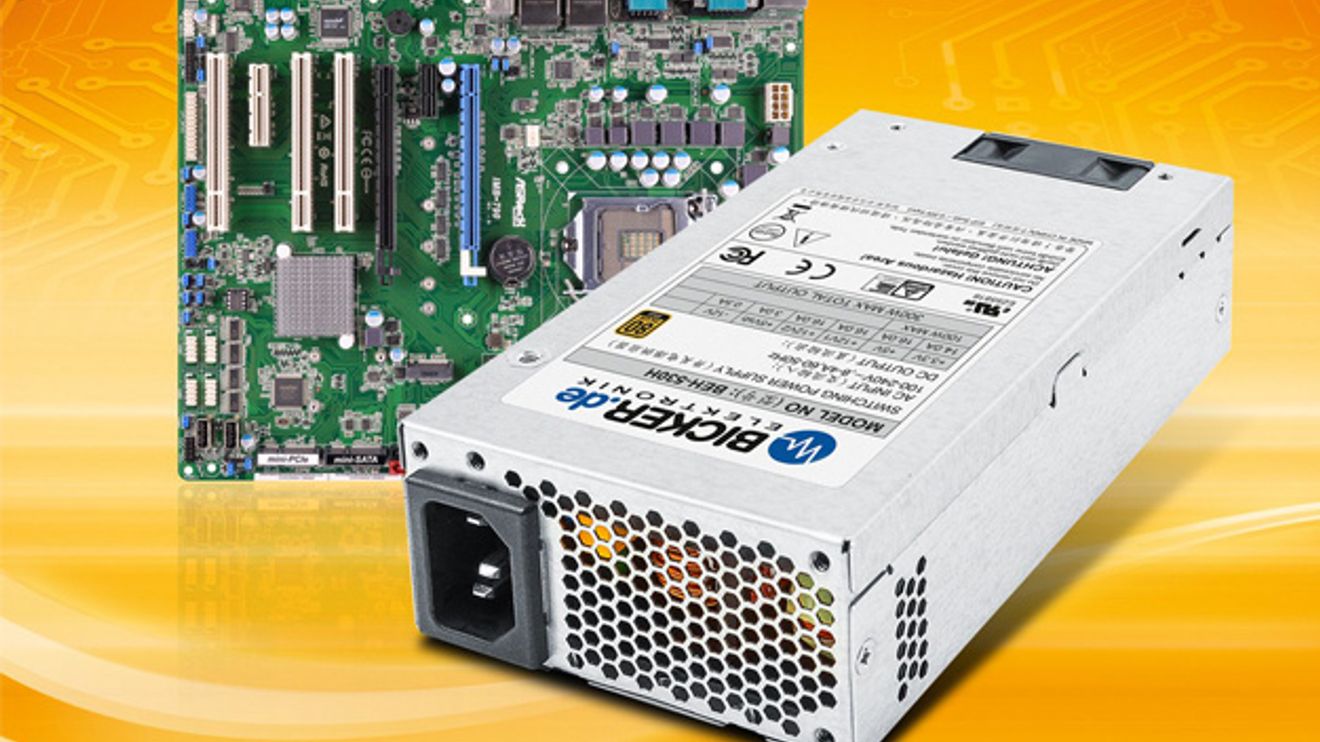

With the new BEH-530H industrial PC power supply unit, Bicker Elektronik presents a flex ATX power supply unit with 300 W output for powering current mainboards. The IPC power supply unit does not require a base load at the ATX outputs +3.3 V, +5 V, +12 V1, +12 V2, -12 V and +5 V.
This means that new mainboards with special energy-saving modes (Intel Haswell, Skylake or Kaby Lake processors) can be supplied. Designed for the extended temperature range between -10 and +60 °C, the new power supply impresses with its energy-saving circuit design and particularly quiet operation, according to the manufacturer. The optimum running speed of the ball-bearing fan is infinitely variable depending on the temperature and cooling requirements. The power supply unit achieves an efficiency of up to 91%, meets the requirements for the 80 PLUS Gold certificate and is ErP Lot 6 2013-ready. For international use, the switching power supply has EN/UL 60950-1 safety approvals and a wide-range input 90 to 264 V(AC) - 47 to 63 Hz - with active power factor correction (PFC). In addition to long-term availability of at least five years, Bicker Elektronik offers a three-year device guarantee on the BEH-530H.
