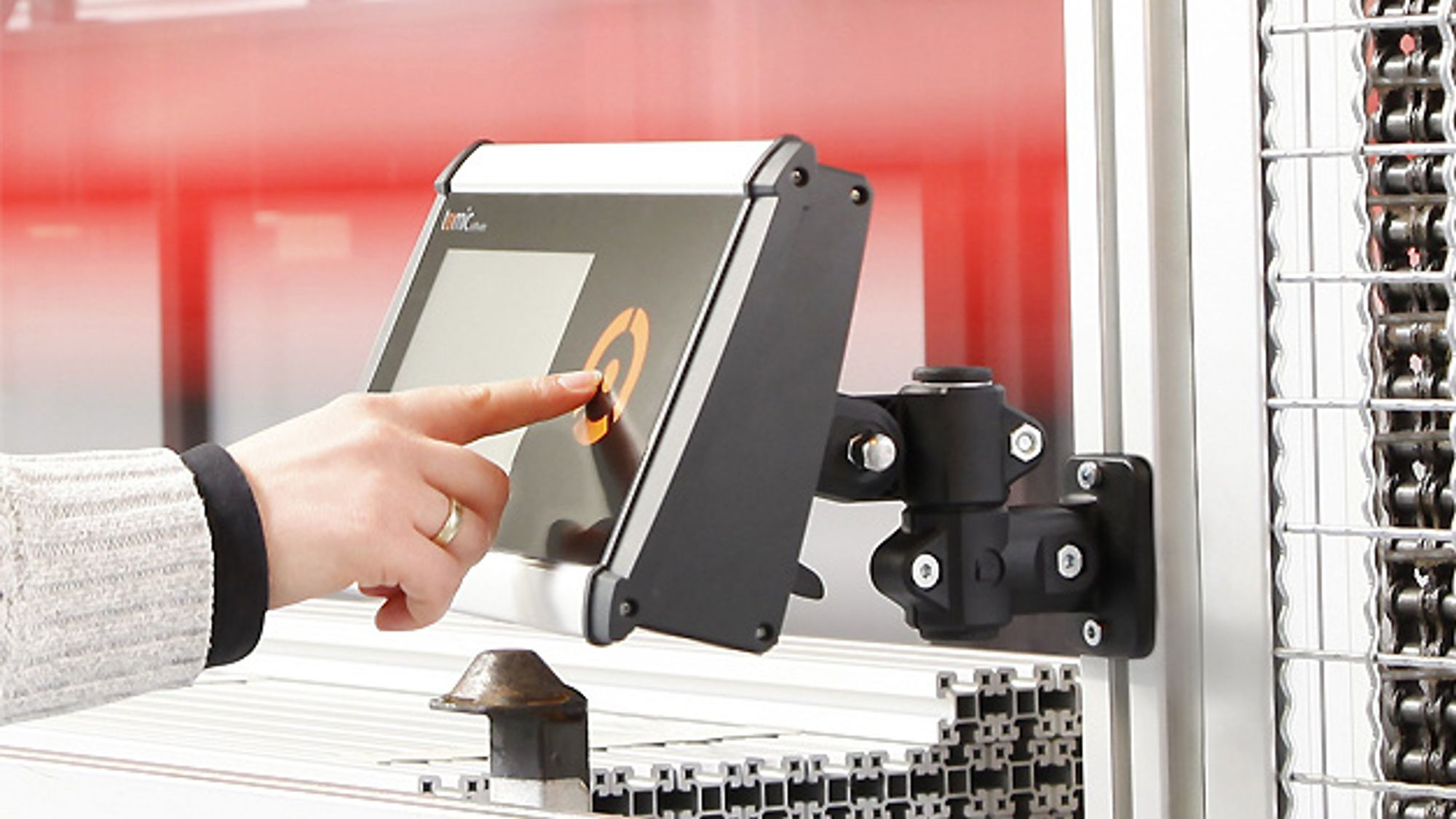

15_Monitor holder with ball joint and more degrees of freedom from RK Rose+Krieger
© RK Rose + Krieger

Rose+Krieger is offering a version of its monitor mount with a ball joint, which is designed to offer more freedom for the alignment of industrial monitors and touch panels. The joint enables a swivel range of 60° with a maximum load of 10 kg (static). Thanks to a special coating on the ball and a clamping mechanism, the manufacturer claims that there is reliable static friction when the clamping lever is tightened. On the device side, the user can choose between a cross-shaped connection plate in accordance with VESA standard 75/100 - i.e. with a 75 × 75 mm or 100 × 100 mm mounting hole pattern - and a round universal screw-on surface made of aluminum. The monitor mount is compatible with RK connection technology and the Blocan aluminum profile system, but can also be mounted on other elements such as pipes, profiles or walls. The necessary mounting elements such as screws and sliding blocks for fastening to the RK profile system are included in the scope of delivery.
