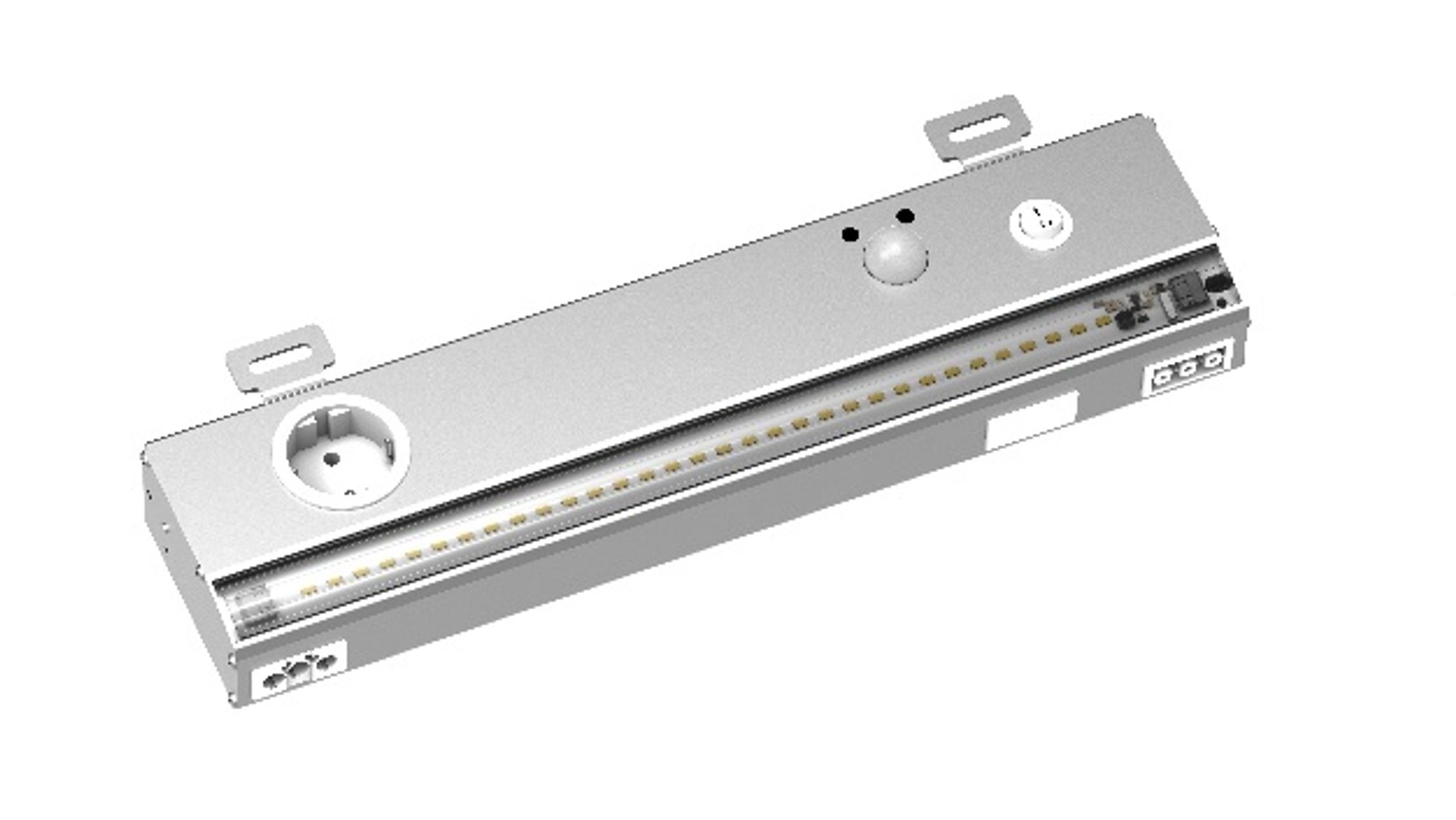

LLX-400 switch cabinet light from Elmeko
© Elmeko

Elmeko launches the LLX-400 switch cabinet light. This further development of the "LLE" series illuminates the switch cabinet evenly right down to the floor without dazzling people in front of the cabinet thanks to its special optics. The luminaire achieves a light intensity of 2000 lm with a color temperature of 5000 K and a power consumption of 13 W. Mounting options include screw and magnetic mounting in the frame profile of the enclosure and on flat surfaces. Variable mounting brackets, which can be used at different points on the luminaire, ensure mounting flexibility on cabinets from different manufacturers. The input voltage range of 100 to 240 V(AC/DC) enables universal, international use. The light is switched via motion detectors ("LLX-400-BW") or a mechanical door position switch ("LLX-400-SW"). All connections are pluggable and it is also possible to connect additional lights. The luminaire with aluminum housing and IP20 protection rating can be installed and connected inconspicuously behind the frame profile in cabinet widths from 500 mm.
