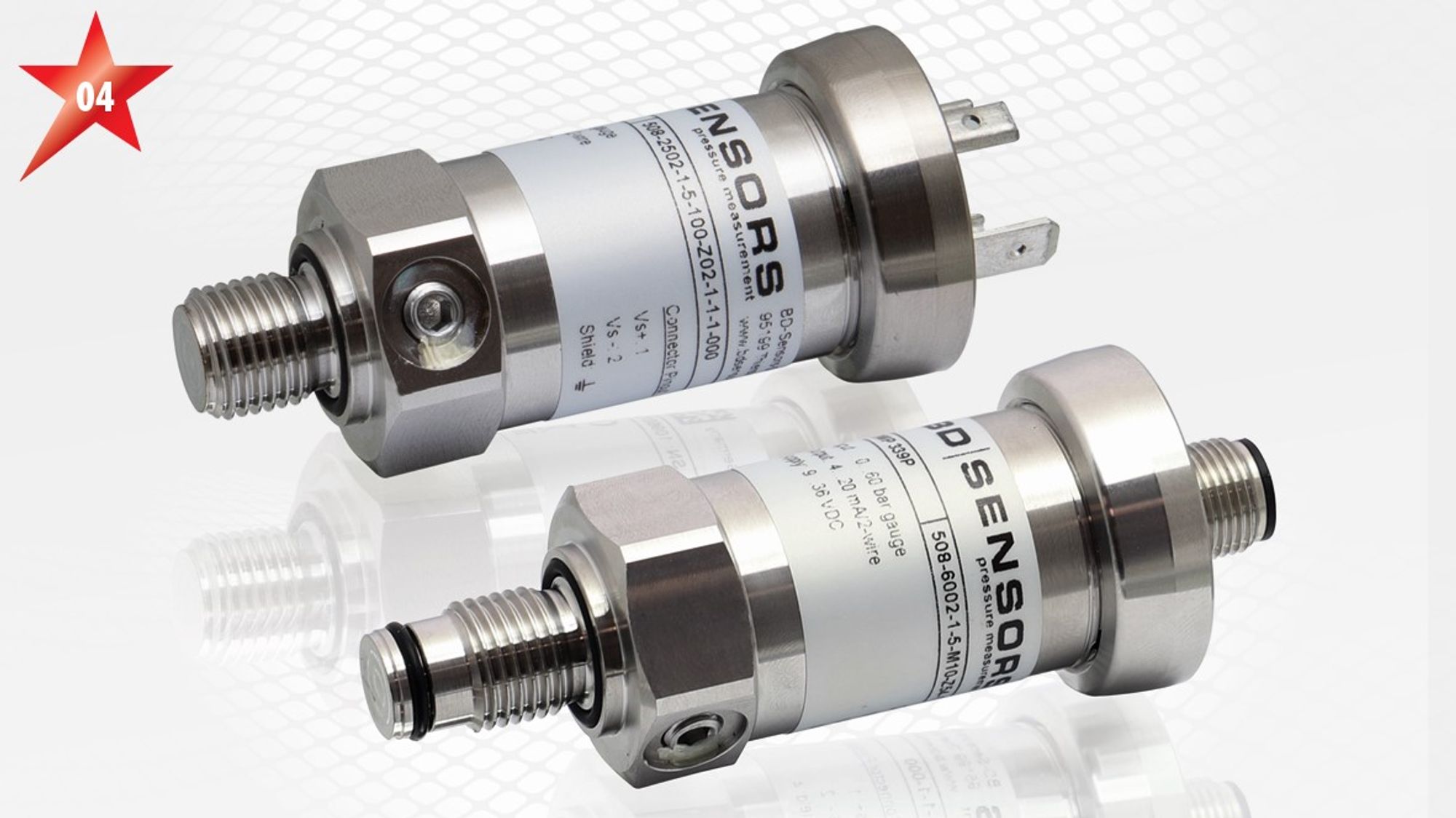

BD Sensors - Pressure transmitter 'DMP 339P':
The DMP 339P pressure transmitter from BD|Sensors is aimed at systems in dosing and gluing technology. It ensures reliable measurement of the working pressure during material dosing and conveying. In order to carry out cleaning cycles and prevent deposits in possible dead spaces, a flush connection of the measuring technology in the system is absolutely essential. For this reason, the pressure connection of the pressure transmitter is welded flush to the front. The DMP 339P is available in two G-¼ inch versions. The version with an O-ring on the front ensures the best possible seal against the material being processed. Materials containing silicone are not used in the internal pressure transmission of the device to ensure unrestricted use in painting systems and lines. The device can measure pressure from 25 to 600 bar and is designed for media temperatures up to +125 °C. It is available with various analog output signals. The accuracy is specified as 0.5 % FSO.
