With the

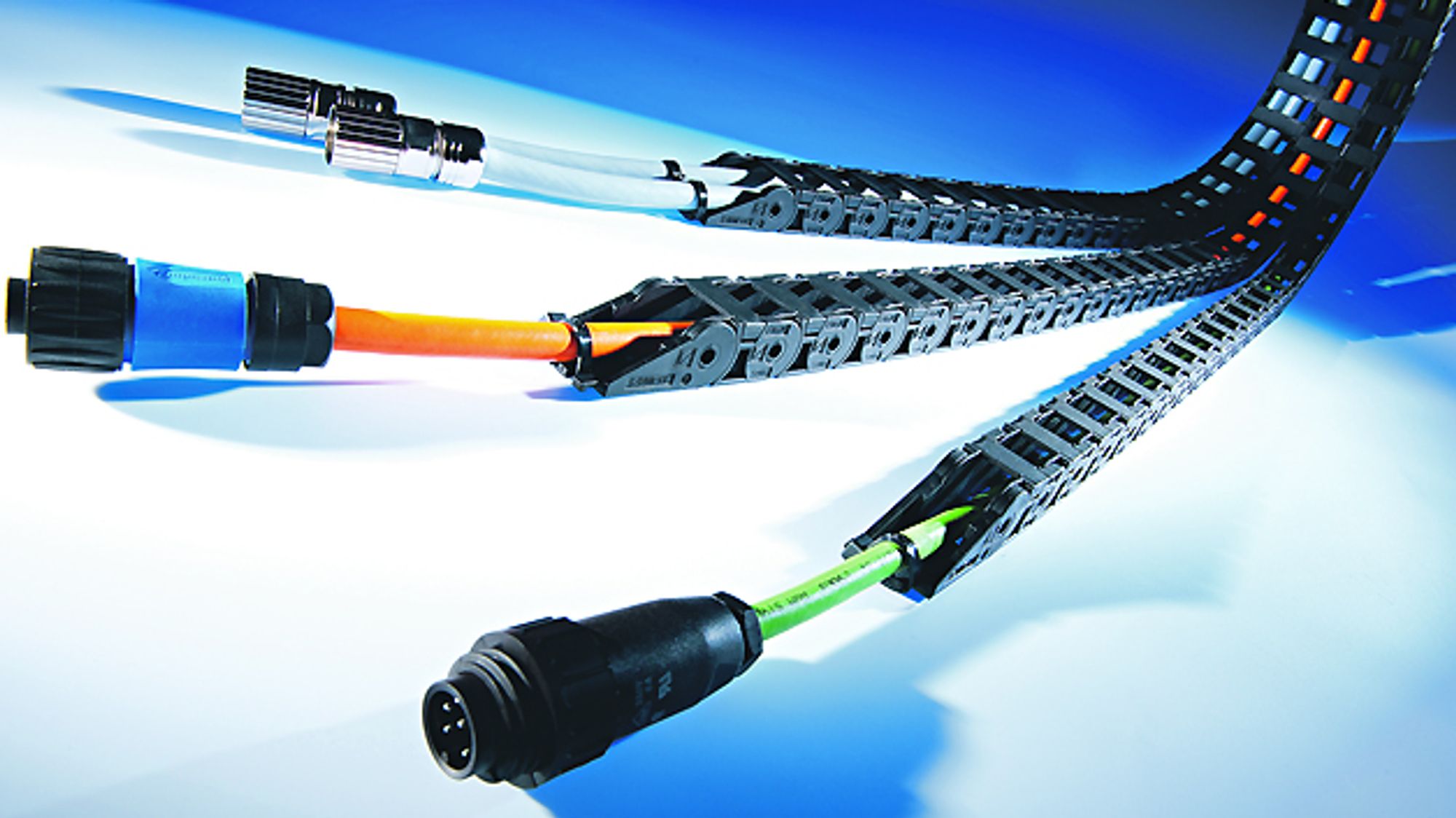

MP 20.2, Murrplastik Systemtechnik is launching
a one-piece, easy-to-install cable drag chain onto the market. A total of 20 variants are available - with chain widths of 15, 25, 38 and 50 mm and radii of 38, 48, 75, 100 up to 125 mm. The inner height is 20 mm, the outer height is 25 mm. There are 29 chain links per running meter (exactly 1.15 m). An optional divider can be used to separate the cables. The chain links can be opened at the inner bend; the maximum travel distance is 8 m for suspended use and 3 m for upright use. The chain links are manufactured in one injection cycle and in one part; the cover is injected on using a hinge.
