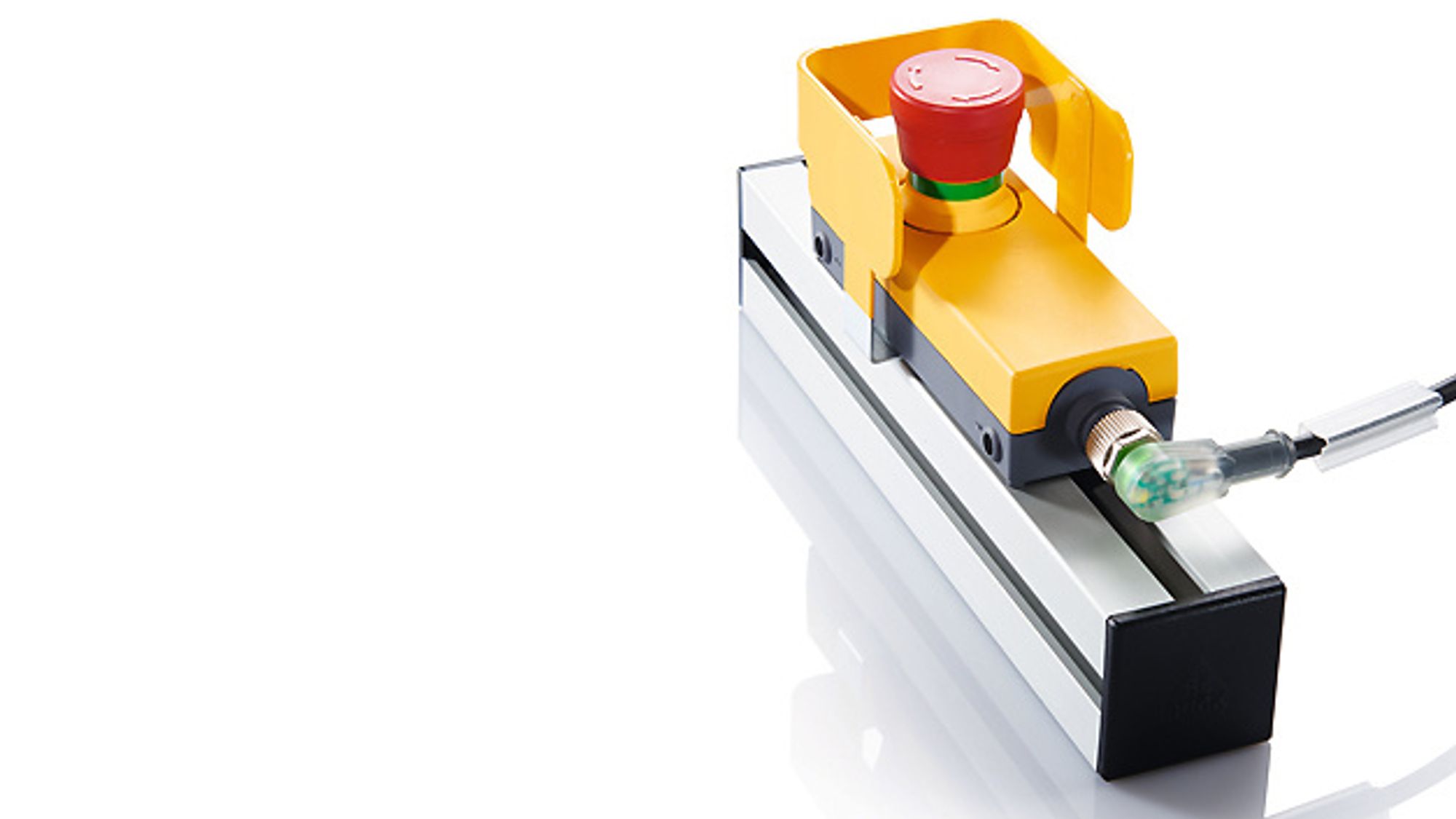

Rafi has expanded its E-Box range to include a protective collar that prevents the accidental actuation of emergency stop buttons. The 'E-Box' is a flat and slim housing for one to two actuating elements from the 'Rafix 22 FS+' series, which can be used to install emergency stop and pushbuttons - for example for simple lift/lower or on/off functions - in remote locations. The dimensions are based on the edge dimensions of 40 mm profile rails, to which the housing can be easily attached using a mounting clip - or alternatively with the protective collar, which also serves as a mounting clip: To do this, the protective collar or mounting clip is fixed in the profile rail groove using a one-hole screw fastening, onto which the E-box enclosure is then snapped. Alternatively, screw apertures in the housing or protective collar also allow direct mounting on walls or other surfaces. The protective collar can be combined with both the 'E-Box Modular' and the 'E-Box M12'.
