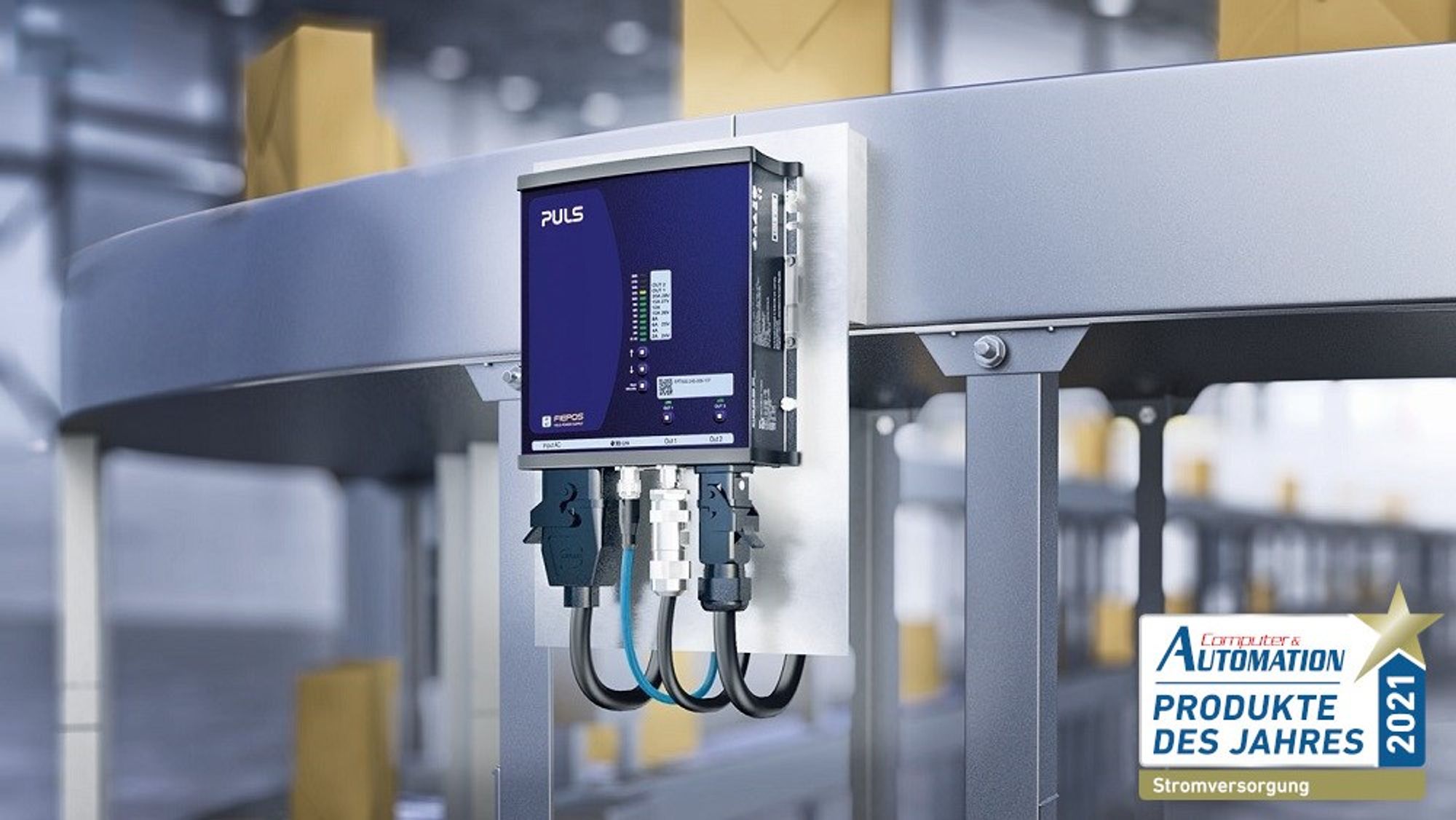

1st place: Under the name FIEPOS, short for FIEld POwer Supplies, Puls presents new 300 W and 500 W power supplies with IP54 to IP67 protection for decentralized, cabinet-free use. The power supplies with over 95% efficiency are available for single-phase or three-phase systems and in different versions, for example with a variety of connectors such as 7/8 inch, Han-Q series, M12 or Quickon.
In addition, the switching power supplies offer IO-Link as a communication interface and decoupling MOSFETs for setting up redundant systems.
There are also eFused versions that are equipped with up to four current-limited outputs. This allows selective current distribution, protection and monitoring to be implemented directly in the field.
All devices have an LED field on the front of the device for immediate diagnosis. The output voltage and the tripping currents (eFused versions) can be set via pushbuttons.
Alternatively, the settings can be made remotely via IO-Link. The housing measures 181 mm × 183 mm × 57 mm (W×H×D) and offers three different mounting options as standard (DIN rail, keyholes, screw mounting).
