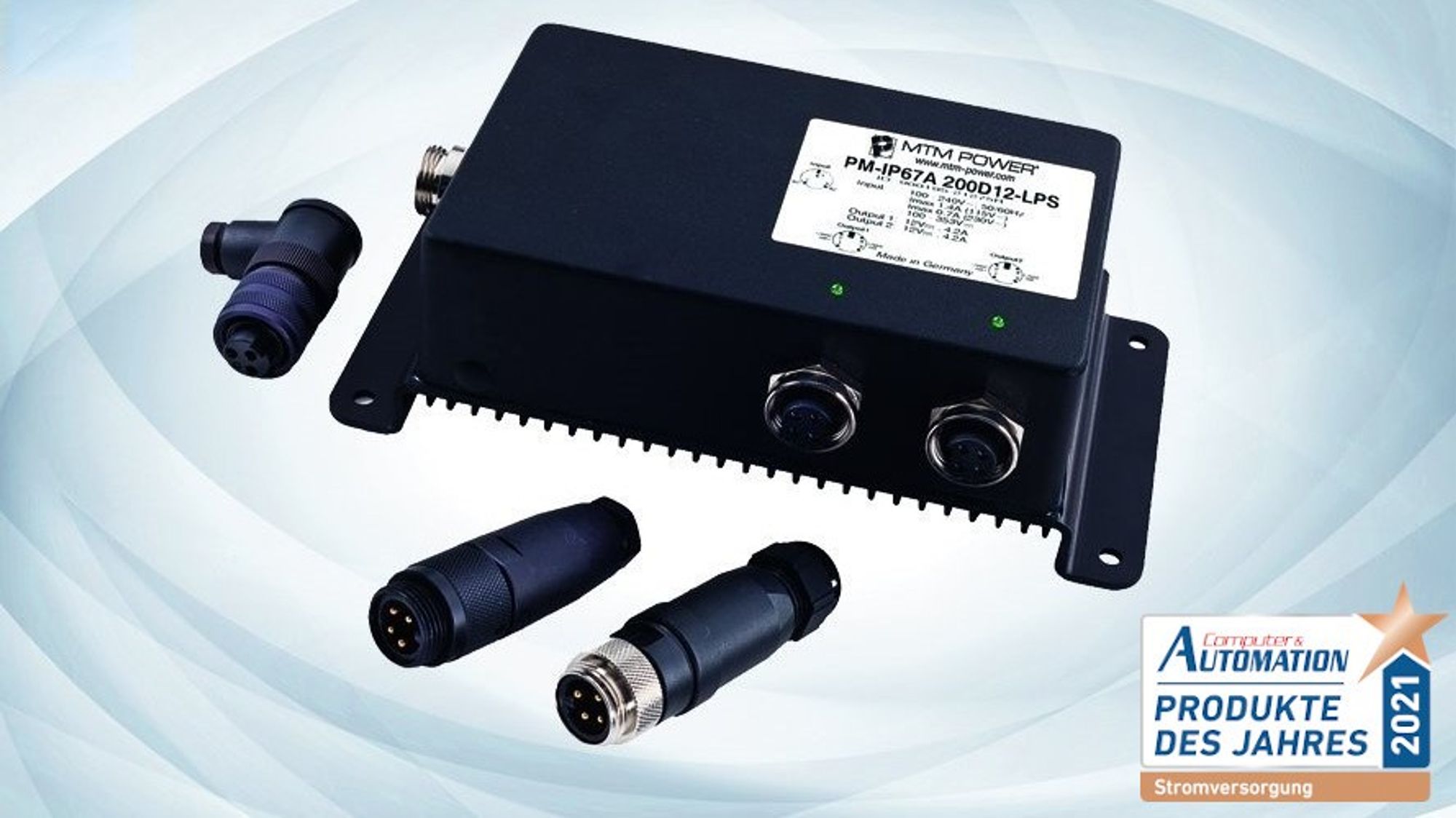

3rd place: The primary switched power PM- IP67A200 from MTM is designed in protection class IP67 and was conceived for the electrical supply of control systems, sensors and actuators in the field directly at the application to be supplied.
The on-site use of the power supply modules as a plug & play solution is made possible by the connection via 7/8-inch plug connectors and the thermoselective vacuum potting from MTM.
The device series has 24 V single and dual outputs and is certified in accordance with the UL 60 950-1 and UL 508 standards. In addition, the compact power supplies with 90 to 264 V (AC) and 100 to 300 V (DC) wide-range inputs can be used worldwide under extreme environmental conditions.
The dual output voltages are galvanically isolated from each other with 500 V(AC) isolation and independently regulated, both output voltages are Limited Power Sources according to EN 60 950-1 and UL 1310, NEC class 2.
In addition, the devices comply with protection class 1 and fulfill the Low Voltage Directive as well as the current EMC standards for CE conformity.
